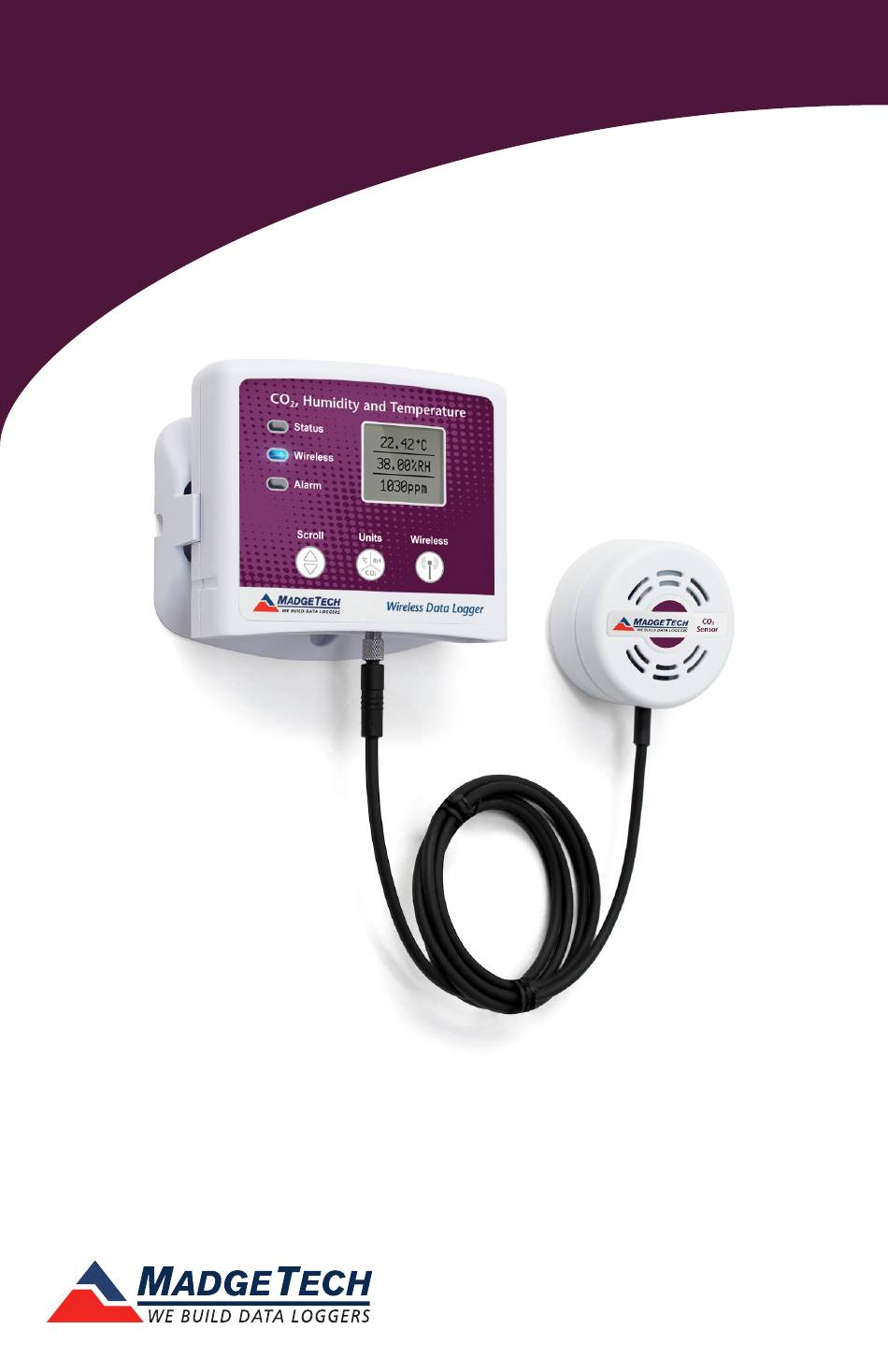

- Page 1 Product User Guide RFCO RHTemp2000A RFCO RHTemp2000A Wireless CO , Humidity & Temperature Data Logger To view the full MadgeTech product line, visit our website at www.madgetech.com.
-
Page 2: Table Of Contents
Installation Guide ........... 9 Mounting Instruction ........10 Channel Programming ......... 11 Deployment & Activation ......12 General Specifications ........12 Compliance Information ........ 13 Troubleshooting Tips .... Back Cover To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Quick Start Steps
The display will confirm “Wireless: ON” and the blue LED will blink every 15 seconds. Launch the MadgeTech 4 Software. All active MadgeTech Data Loggers that are within range will automatically appear in the connected devices window. Each data logger in the list can be identified by serial number (printed on the exterior of the logger). -
Page 4: Product Overview
• Manual Reset Option: Allows user to manually reset the statistics within the device to 0 without needing to use the MadgeTech software. Any data recorded up to that point is recorded and saved. To apply the manual reset, press and hold the scroll key down for three seconds. -
Page 5: Additional Features & Operation
5. The Use cumulative alarm delay checkbox indicates whether the alarm delay should reset when reading values fall back within the alarm threshold. 6. Once the alarm is configured appropriately, click Apply to save the settings. **Please refer to the Help file in the MadgeTech software for more information regarding alarm settings**... -
Page 6: Mounting Instructions
• There are two holes in the base to allow for screws for mounting. Still need help? For more troubleshooting tips and information, refer to the built in help section of the MadgeTech 4 software, visit our Knowledge Base online at www.madgetech.com/kbase or contact us for customer support at 603-456-2011. -
Page 7: Product Maintenance
Recalibration traceable to NIST $300.00 RMA Instructions To send a device back in to MadgeTech, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website: 1. Visit www.madgetech.com, under the Services tab select RMA Process. -
Page 8: General Specifications
±1 minute/month USB to mini USB, 250,000 baud for standalone operation or RFC1000 Computer Interface required for wireless operation Operating System XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only) Compatibility MadgeTech Software • Standard Software version 4.2.1.1 or later Compatibility • Secure Software version 4.2.0.1 or later •... - Page 9 WARNING: BATTERY MAY LEAK, FLAME OR EXPLODE IF DISASSEMBLED, SHORTED, CHARGED, CONNECTED TOGETHER, MIXED WITH USED OR OTHER BATTERIES, AND/OR EXPOSED TO FIRE/HIGH TEMPERATURE. DISCARD USED BATTERY PROMPTLY, KEEP OUT OF REACH OF CHILDREN. Specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com...
- Page 10 Product User Guide RFC1000 Wireless Transceiver Other models available: RFC1000-CE - Approved for European markets RFC1000-IP69K - Splash Proof for harsh environments...
-
Page 11: Product Overview
RFC1000 Product Overview MadgeTech has designed the RFC1000, a high powered transceiver that has a substantially long transmission range, providing enhanced performance in occluded environments (ovens, refrigerators, etc.). The RFC1000 also features an external antenna, allowing more flexibility with mounting positions in both orientation and proximity to metal walls. The device may be used as a repeater, or directly plugged into the Windows PC. -
Page 12: Mounting Instruction
Product User Guide Mounting Instructions For best wireless performance, both the RFC1000 and the MadgeTech data loggers should be mounted in the same orientation. This usually means that the external antenna should be pointing straight up. The antenna can pivot to accommodate either a wall mount or a... -
Page 13: Channel Programming
Channel Programming The RFC1000 transmits data on the 2.4 GHz band and is programmed by default on channel 11. Each MadgeTech Wireless Data Logger and RFC1000 has a set of dip switches with which the channel may be programmed. Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. -
Page 14: Deployment & Activation
(See Channel Programming steps above) Step 4: On a Windows PC, launch the Madgetech 4 software program. All active data loggers will be listed in the software showing that the device(s) are recognized. Step 5: To activate the data loggers, click on one to highlight, then click the Claim icon, and then click the Start button. -
Page 15: Compliance Information
RFC1000 Compliance Information • “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”... -
Page 16: Troubleshooting Tips
• Ensure that no other MadgeTech software (such as MadgeTech 2, or MadgeNET) is running in the background. • Ensure that MadgeTech 4 is being used. MadgeTech 2 and MadgeNET are not the correct software for connecting with the RFCO RHTemp2000A.
