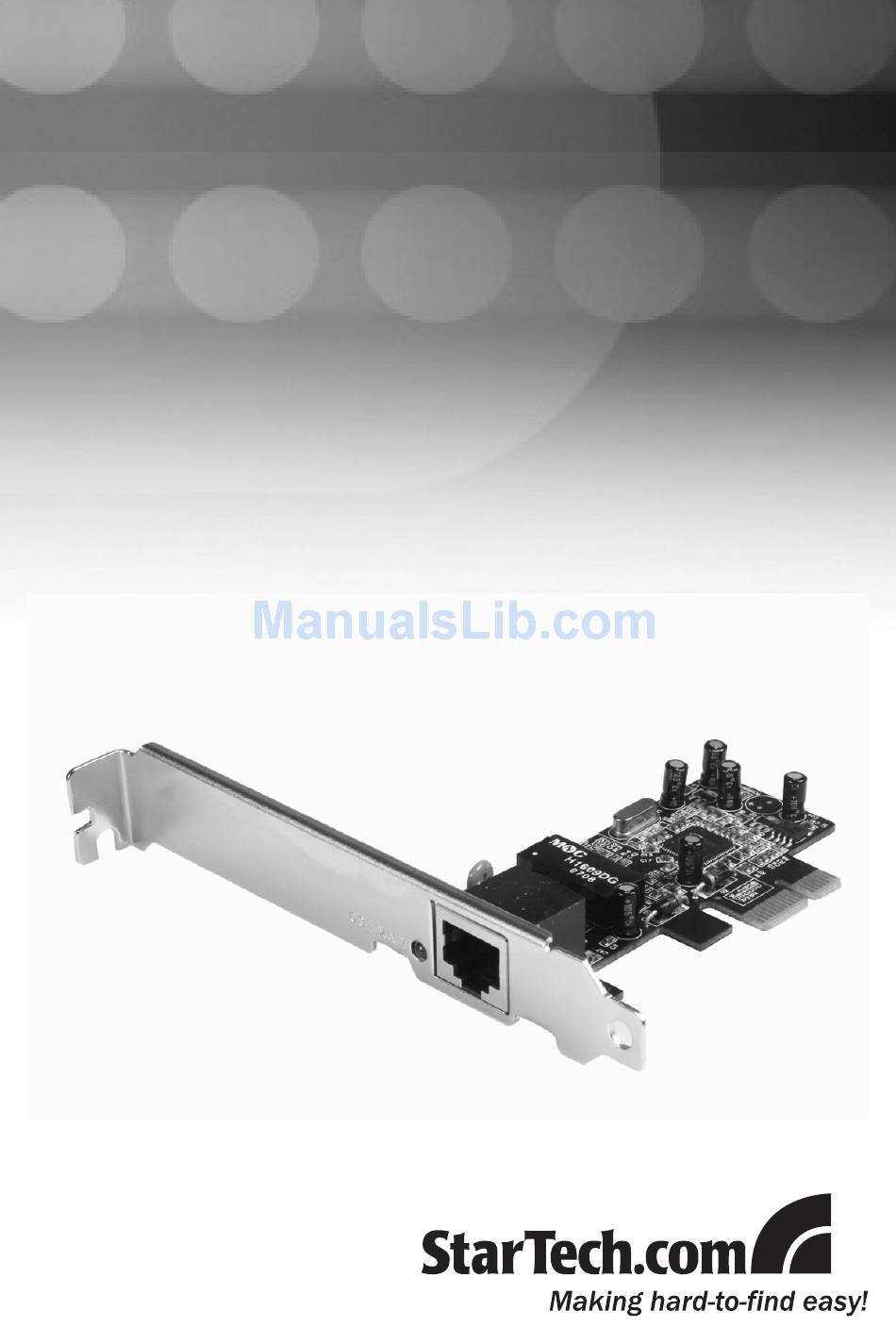

- Page 1 PCI Express 10/100 Ethernet Card PEX100S...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package contents ................1 System Requirements ..............1 Hardware Guide ................2 Installation ..................3 Windows® XP, 2000, Server 2003 ..........3 Windows Vista® ................4 Verifying Successful Installation (Optional) .........5 Specifications ................6 Technical Support ................7 Warranty Information ..............7 Limitation of Liability ..............7... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com PCI Express 10/100 Ethernet Card. Providing a simple way to add 10/100 Ethernet capability to a PCI Express enabled server or workstation for data throughput speeds of up to 2.5Gbps, PEX100S provides a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide The following table provides descriptions of the 100 Link/Activity LED status: 100 Link/Activity LED Color Status Description Port is currently connected to a 100Mbps network 100/ACT Green Blink Sending/receiving packets... -
Page 6: Installation
Instruction Manual Installation Hardware Installation Shut down all power connected to the computer, as well as all devices connected to the computer peripherally (i.e. Printers, Monitors, Scanners etc.). As an added step to ensure safe installation, unplug the power supply from the computer. Remove the computer cover, allowing access to the motherboard and available slots. -
Page 7: Windows Vista
Instruction Manual Found New Hardware Wizard appears, please click the When the Cancel button to halt driver installation for the device temporarily; the driver for this device will be installed in the next step. Insert the Driver CD that was included with PEX100S. Start button, then select Run. -
Page 8: Verifying Successful Installation (Optional)
Instruction Manual Verifying Successful Installation (Optional) Once the computer has been powered on following the driver installation and the connection of the desired drive, you may wish to verify that the necessary files have been installed properly. To do so: Right-click on My Computer and select Manage. -
Page 9: Specifications
Instruction Manual Specifications Connectors 1 x RJ45 Maximum Data Transfer Rate 100 Mbps OS Support Windows® 2000/ME/XP/Vista™ Regulatory Certifications FCC/CE/ROHS Product Weight 45 g (1.59 oz ) 30 mm (1.18”) x 140 mm (5.51”) x Product Dimensions 165 mm (6.5”) (W x H x L) -
