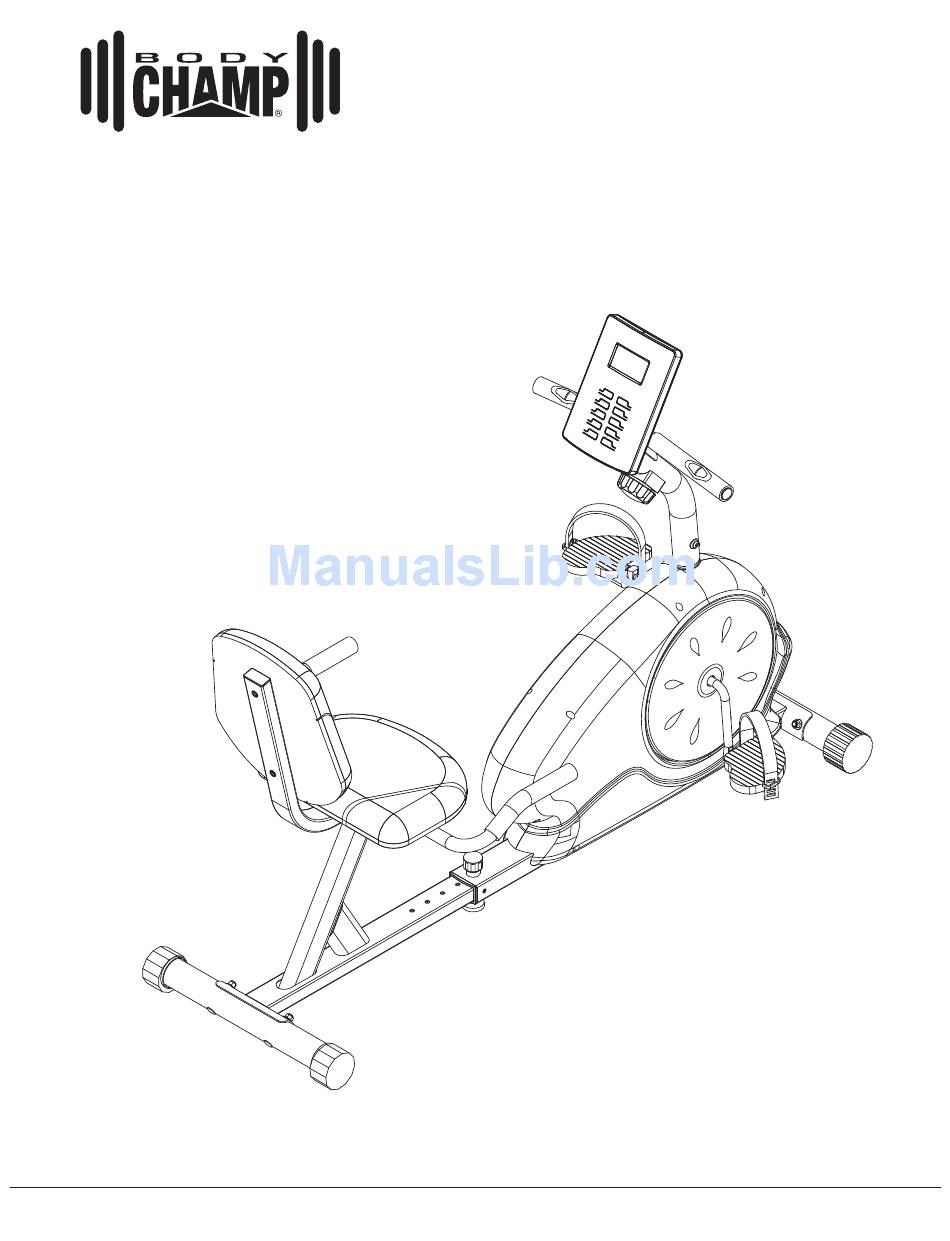

- Page 1 BRB 5288 M A G N E T I C RECUMBENT BIKE * This item is for consumer use only and it is not meant for commercial use. OWNE R’ S M ANUAL...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
21717 Ferrero Parkway, Walnut, CA 91789 - 1 x Philips (”Crosshead”) Screw Driver Telephone: (888) 266 - 6789 Weight Limit Fax: (909) 598 - 6707 Email: info@bodyflexsports.com Your product is suitable for users weighing: 300 pounds or less. BRB 5288 Page 1... - Page 4 #33. Spring Washer (M8) #35. Arc Washer (M8) [6 pieces] [3 pieces] [11 pieces] Pre-assembled Pre-assembled [3 pieces] #37. Nut (M8) [8 pieces] Tool #46. Wrench 1 (5 mm) #47. Wrench 2 [1 piece] [2 pieces] Page 2 BRB 5288...
-
Page 5: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Page 3 BRB 5288... -
Page 6: Exploded Diagram
Please continue to the next page to begin the assembly process and use this page only as a reference guide for parts and hardware. Page 4 BRB 5288... -
Page 7: Assembly Instructions
#37. Nut (M8) [4 pieces] Spring Loaded Knob Operation Turn knob counter-clockwise three times. Pull knob outward and adjust bottom frame simultaneously. Push knob back inward until it clicks and then tighten it by turning clockwise. REAR BRB 5288 Page 5... - Page 8 On the right side, attach the Right Rear Handlebar (#07) onto Washer the protruding ends of the Hex Bolt (#24) and secure the composition together using two Washers (#34) followed by two Nuts (#37). #34. Washer (M8) [4 pieces] #37. Nut (M8) [2 pieces] Page 6 BRB 5288...
- Page 9 [2 pieces] TENSION WIRE ASSEMBLY Insert the tip of the Tension Control (38) wire into the Tension Control Cable (39) head at an angle. Tilt the Tension control (38) wire into the crevice and then pull upward. Page 7 BRB 5288...
- Page 10 Washer two Screws (#26) and two Washers (#34). Then, attach the Seat Cushion (#44) to the horizontal base of the Cushion Frame (#03) by inserting up four Screws (#28) to secure. #34. Washer (M8) [2 pieces] Page 8 BRB 5288...
- Page 11 HAND PULSE SIGNAL After complete assembly: If the computer is not picking up your hand pulse signal (or you are getting inaccurate readings), Please refer to our “Troubleshooting” section on Page 13 for other troubleshoot issues. BRB 5288 Page 9...
-
Page 12: Safety And Maintenance
(909) 598-9876, or mail in a written request to: Body Flex Sports, Inc. 21717 Ferrero Parkway, Walnut, CA 91789. More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 1 of the Owner’s Manual under the “CUSTOMER SUPPORT” section. BRB 5288 Page 10... -
Page 13: Computer Operation
Press any of the 8 icon bu ons of preset training programs to enter the Training program in STOP mode. Programs • Press any of the 8 icon bu ons again to return to MANUAL program mode. (8 Total) BRB 5288 Page 11... - Page 14 Page 12 if you encounter any problems. *Please be aware that the pulse sensors are not medical devices; the pulse sensors should not be used or applied for medical reasons. 9. RPM Displays the current rotations per minute. BRB 5288 Page 12...
-
Page 15: Troubleshooting
For your safety, please do not discard this Troubleshooting sheet or the Owner’s Manual, and keep them in a place where you can easily access/refer to them at any time. If you are still having any troubleshooting issues, please contact our Customer Support for further assistance. BRB 5288 Page 13... - Page 16 5. ALWAYS use your Equipment in a warm, dry, level well-lit and ventilated 11. NEVER use the Equipment if it does indoor area. not function properly. 6. ALWAYS keep body and clothing free and clear of all moving parts. BRB 5288 Page 14...
-
Page 17: Warm-Up Instructions
1. Lie on your back and raise your right leg as you clasp both hands under the back of the knee. Keep your left leg straight. 2. Gently pull your right leg toward your trunk without raising your upper body. Switch leg positions and repeat. BRB 5288 Page 15... - Page 18 Switch leg positions Reverse arm positions and and repeat. repeat. BRB 5288 Page 16...
-
Page 19: Proof Of Purchase
Proof of purchase Model Number BRB 5288 version: 08-22-2013 BRB 5288... - Page 20 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com Made in China...
