Related Manuals for Body Champ BRM 3600
Summary of Contents for Body Champ BRM 3600

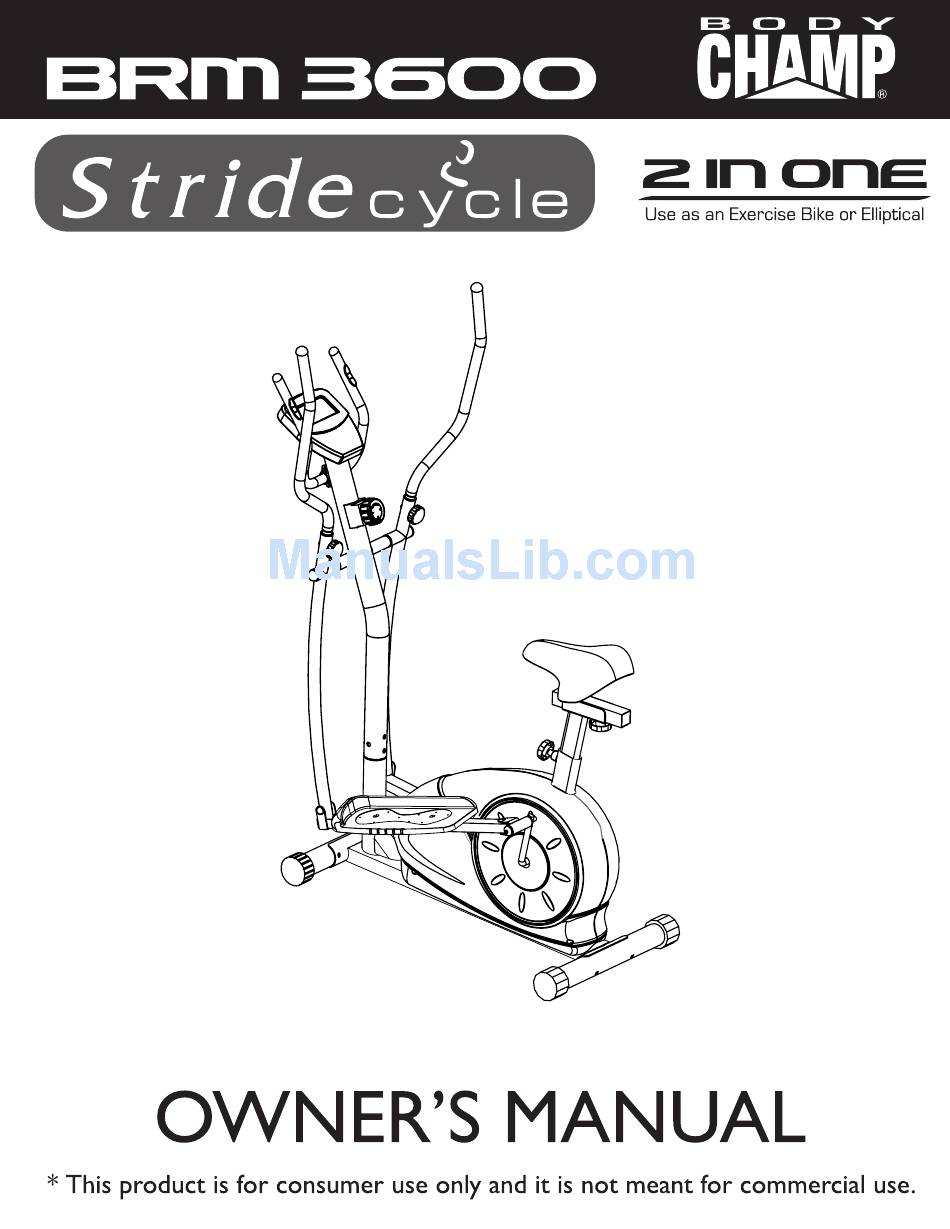

- Page 1 For use under U.S. Patent numbers 6159132, D459773, D438264...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
21717 Ferrero Parkway, Walnut, CA 91789 - 1 x Philips (”Crosshead”) Screw Driver Telephone: (888) 266 - 6789 Weight Limit Fax: (909) 598 - 6707 Email: info@bodyflexsports.com Your product is suitable for users weighing: 250 pounds or less. BRM 3600 Stride Cycle Page 1... -
Page 4: Hardware/Tool List
#39. Spring Loaded Knob (M8x36 mm) [2 pieces] [1 piece] [1 piece] Caps #3. Bolt Cap #45. Bolt Cap (for M8 bolt) (for bolt #18) [4 pieces] [2 pieces] Misc. #66. Clamp Cover [1 piece] BRM 3600 Stride Cycle Page 2... -
Page 5: Parts Listing
33....Seat 69....Front Stabilizer 34....End Plug (square 38mm) 70....Pulse Handle Bar 35....Horizontal Seat Bar 71....Washer (for M8 bolt) 36....Seat Post 72....Nylon Nut (for M8 bolt) 37....Arc-Washer (for M8 bolt) 38....Bolt (M8x20 mm) BRM 3600 Stride Cycle Page 3... -
Page 6: Exploded Diagram
Please continue to the next page to begin the assembly process and use this page only as a reference guide for parts and hardware. BRM 3600 Stride Cycle Page 4... -
Page 7: Front Stabilizer Assembly
Arc-Washers (#37) and two Cap Nuts (#49). Make sure these two wires are hanging out before proceeding to the next step. If they have fallen inside the tube, use a bent wire to “fish” them out. BRM 3600 Stride Cycle Page 5... -
Page 8: Wire Connections
TENSION WIRE ASSEMBLY Insert the tip of the Tension controller (55) wire into the Tension Wire (40) head at an angle. Tilt the Tension controller (55) wire into the crevice and then pull upward. BRM 3600 Stride Cycle Page 6... -

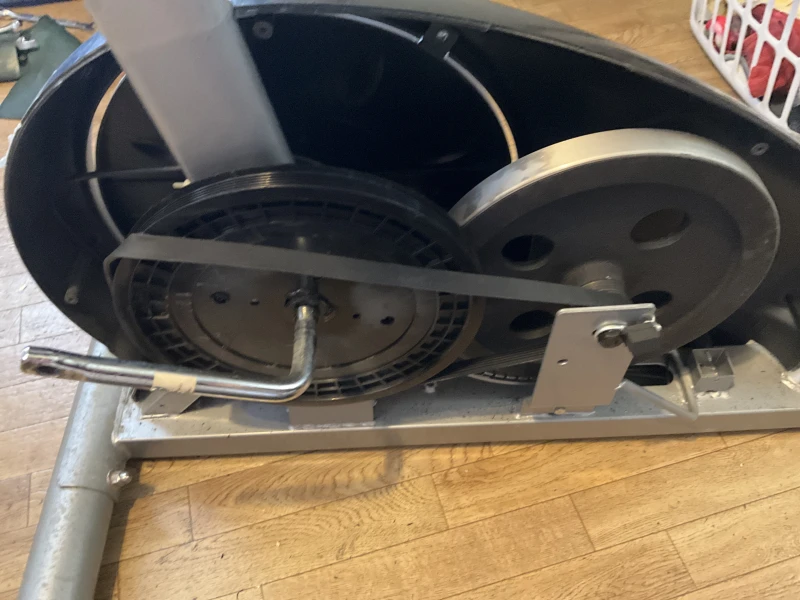

Page 9: Left Side
Crank . If the Left/Right Pedal Bolt (#18L/18R) Crank are connected to the Left/Right incorrectly, damage to the #47. Spring Washer #45. Bolt Cap Pedal Bolt (#18L/18R) and Crank will [2 pieces] [2 pieces] occur. BRM 3600 Stride Cycle Page 7... -
Page 10: Handle Bar Assembly
(M8x30 mm) #4. Spring Washer [2 pieces] [1 piece] [2 pieces] Tool Required Feed the Pulse sensor Wires (#64) through the neck of the Center Post (#58) until they are sticking out of the opening. BRM 3600 Stride Cycle Page 8... -
Page 11: Seat Assembly
Exercising on this unit without the Seat (#33) can result in SERIOUS INJURY. Ensure the seat is locked in place by tightening the two knobs prior to use. BRM 3600 Stride Cycle Page 9... -
Page 12: Pedal Assembly
HAND PULSE SIGNAL After complete assembly: If the computer is not picking up your hand pulse signal (or you are getting inaccurate readings), Please refer to our “Troubleshooting” section on Page 12 for other troubleshoot issues. BRM 3600 Stride Cycle Page 10... -
Page 13: Safety And Maintenance
(909) 598-9876, or mail in a written request to: Body Flex Sports, Inc. 21717 Ferrero Parkway, Walnut, CA 91789. More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 1 of the Owner’s Manual under the “CUSTOMER SUPPORT” section. BRM 3600 Stride Cycle Page 11... -
Page 14: Computer Operation
Computer Operation The following instructions will show you how to use the Computer. The computer on the BRM 3600 will start automatically when you begin to exercise. If it does not turn on, press any of the buttons. If it still does not turn on, your battery most likely needs to be replaced. -
Page 15: Troubleshooting
For your safety, please do not discard this Troubleshooting sheet or the Owner’s Manual, and keep them in a place where you can easily access/refer to them at any time. If you are still having any troubleshooting issues, please contact our Customer Support for further assistance. Page 13 BRM 3600 Stride Cycle... - Page 16 5. ALWAYS use your Equipment in a warm, dry, level well-lit and ventilated 11. NEVER use the Equipment if it does indoor area. not function properly. 6. ALWAYS keep body and clothing free and clear of all moving parts. BRM 3600 Stride Cycle Page 14...
-
Page 17: Warm-Up Instructions
1. Lie on your back and raise your right leg as you clasp both hands under the back of the knee. Keep your left leg straight. 2. Gently pull your right leg toward your trunk without raising your upper body. Switch leg positions and repeat. BRM 3600 Stride Cycle Page 15... - Page 18 Switch leg positions Reverse arm positions and and repeat. repeat. BRM 3600 Stride Cycle Page 16...
-
Page 19: Proof Of Purchase
Proof of purchase Model Number BRM 3600 version:10-11-2012 BRM 3600 Stride Cycle... - Page 20 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
