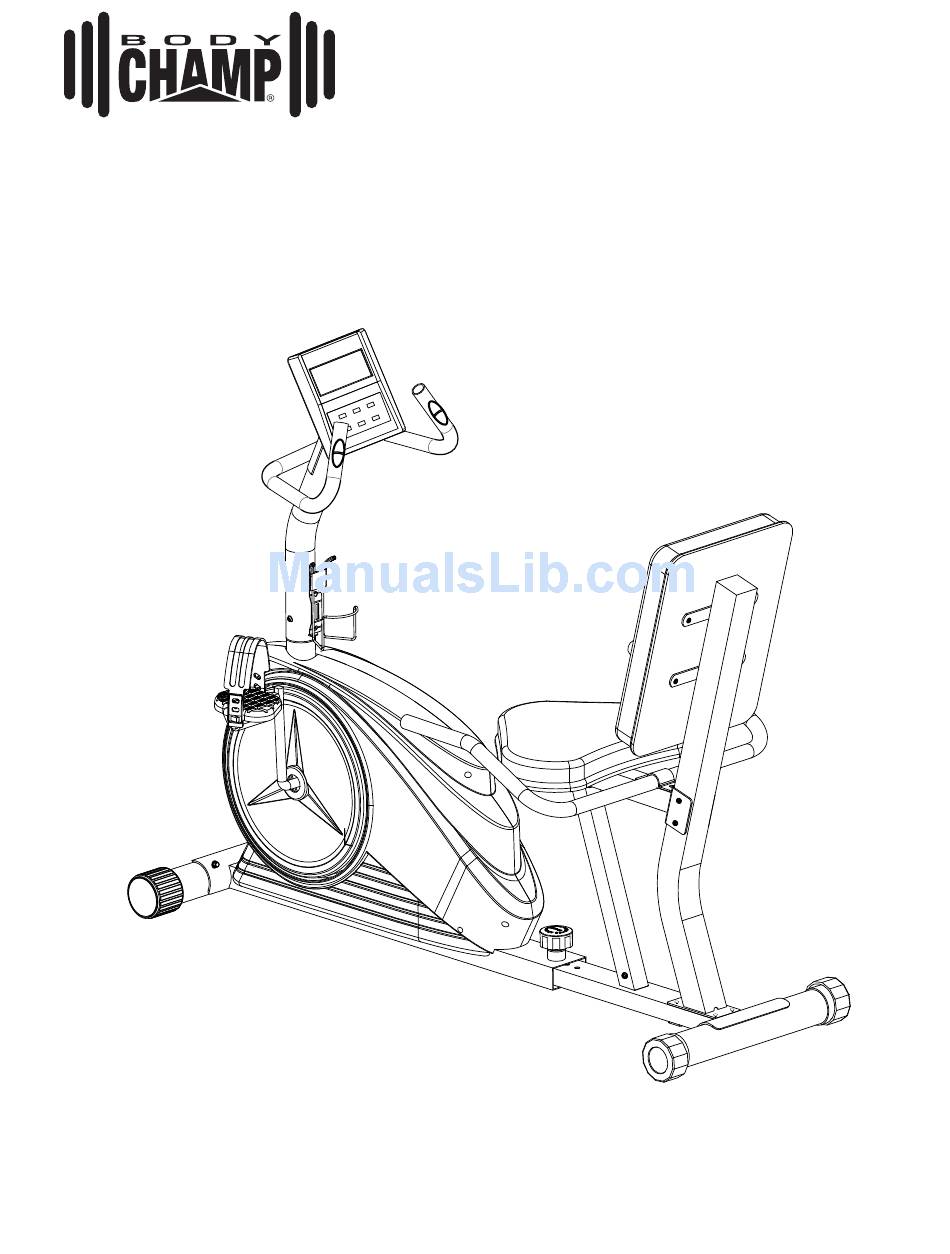

  • Page 1 BRB 5328 M A G N E T I C RECUMBENT BIKE OWNER’S MANUAL...
  • Page 2 This page intentionally left blank...

  • Page 3: General Information

    21717 Ferrero Parkway, Walnut, CA 91789 - 1 x Philips (”Crosshead”) Screw Driver Telephone: (888) 266 - 6789 Weight Limit Fax: (909) 598 - 6707 Email: info@bodyflexsports.com Your product is suitable for users weighing: 250 pounds or less. BRB 5328/5890 Page 1...
  • Page 4 #32 Arc Washer (M8xR30) #42 Washer (D4) #35 Spring Washer (M8) #37 Washer (M8) [9 Pieces] [2 Pieces] [6 Pieces] [24 Pieces] OTHERS #06 Spring Knob (M16) [1 Piece] TOOL 6 mm [1 Piece] S13-14-15-φ5 [1 Piece] BRB 5328/5890 Page 2...

  • Page 5: Parts Listing

    End Cap 50x50 mm Bolt (M8x70 mm) Backrest Cushion Screw (M5x12 mm) Seat Cushion Washer (D4 ) Seat Cushion Frame Screw (M4x8 mm) End Cap (38*38mm) Screw (M4x19 mm) Motor Wire (lower) AC Adapter 46L/R Shroud Motor Wire (upper) BRB 5328/5890 Page 3...

  • Page 6: Exploded Diagram

    Please continue to the next page to begin the assembly process and use this page only as a reference guide for parts and hardware. BRB 5328/5890 Page 4...

  • Page 7: Assembly Instructions

    #31 Carriage Bolt (M8x73 mm) [4 Pieces] [4 Pieces] #33 Nut (M8) [4 Pieces] WASHER #32 Arc Washer (M8xR30) #35 Spring Washer (M8) #37 Washer (M8) [4 Pieces] [4 Pieces] [4 Pieces] TOOL 6 mm [1 Piece] BRB 5328/5890 Page 5...
  • Page 8 #34 Bolt (M8x15 mm) [8 Pieces] [1 Piece] #38 Bolt (M8x55 mm) #40 Bolt (M8x70 mm) [2 Pieces] [2 Pieces] #33 Nut (M8) [5 Pieces] WASHER #37 Washer (M8) [18 Pieces] TOOL 6 mm [1 Piece] S13-14-15-φ5 [1 Piece] BRB 5328/5890 Page 6...
  • Page 9 (#35), and two Washers (#37). Hardware Required BOLT #34 Bolt (M8x15 mm) [2 Pieces] WASHER #35 Spring Washer (M8) #37 Washer (M8) [2 Pieces] [2 Pieces] OTHERS #06 Spring Knob (M16) [1 Piece] TOOL 6 mm [1 Piece] BRB 5328/5890 Page 7...
  • Page 10 [1 Piece] [1 Piece] After complete assembly: If the computer is not picking up your hand pulse signal (or you are getting inaccurate readings), Please refer to our “Troubleshooting” section on Page 16 for other troubleshoot issues. BRB 5328/5890 Page 8...
  • Page 11 For your safety, please visually and functionally inspect and test the unit after assembly is complete. Note: This Magnetic Recumbent Bike is intended to be correctly orientated in a vertical or floor mount position. Hardware Required TOOL S13-14-15-φ5 [1 Piece] BRB 5328/5890 Page 9...

  • Page 12: Safety And Maintenance

    (909) 598-9876, or mail in a written request to: Body Flex Sports, Inc. 21717 Ferrero Parkway, Walnut, CA 91789. More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 1 of the Owner’s Manual under the “CUSTOMER SUPPORT” section. Page 10 BRB 5328/5890...

  • Page 13: Computer Operation

    2 levels of resistance. * Please be aware that the pulse sensors and body fat measurement tool are not medical devices; the pulse sensors and body fat measurement tool should not be used or applied for medical reasons. BRB 5328/5890 Page 11...
  • Page 14 -Once the value of a function countdowns to 0, a beeping sound will indicate this and stop the computer program automatically. Press START to continue the workout to reach the other unfinished workout functions. ii. Pre-set Workout (P2 - P13) BRB 5328/5890 Page 12...
  • Page 15 Select “ BODY FAT” using UP or DOWN then press ENTER. “MALE ” icon (default) will flash so gender (male/female) can be selected using UP or DOWN; then, press ENTER to save gender and move to next data function. BRB 5328/5890 Page 13...
  • Page 16 A reading will be done approximately every 20 seconds. - Once the value of a function countdowns to 0, a beeping sound will indicate this and stop the computer program automatically. Press START to continue the workout to reach the other unfinished workout functions. BRB 5328/5890 Page 14...
  • Page 17 - If user sets up a target TIME for workout, then DISTANCE cannot be adjusted. - Once the value of a function countdowns to 0, a beeping sound will indicate this and stop the computer program automatically. Press START to continue the workout to reach the other unfinished workout functions. BRB 5328/5890 Page 15...

  • Page 18: Troubleshooting

    For your safety, please do not discard this Troubleshooting sheet or the Owner’s Manual, and keep them in a place where you can easily access/refer to them at any time. If you are still having any troubleshooting issues, please contact our Customer Support for further assistance. BRB 5328/5890 Page 16...
  • Page 19 5. ALWAYS use your Equipment in a warm, dry, level well-lit and ventilated 11. NEVER use the Equipment if it does indoor area. not function properly. 6. ALWAYS keep body and clothing free and clear of all moving parts. BRB 5328/5890 Page 17...

  • Page 20: Warm-Up Instructions

    1. Lie on your back and raise your right leg as you clasp both hands under the back of the knee. Keep your left leg straight. 2. Gently pull your right leg toward your trunk without raising your upper body. Switch leg positions and repeat. BRB 5328/5890 Page 18...
  • Page 21 Switch leg positions Reverse arm positions and and repeat. repeat. BRB 5328/5890 Page 19...
  • Page 22 This page intentionally left blank...

  • Page 23: Proof Of Purchase

    Proof of purchase Model Number BRB 5328/5890 version:10-11-2012 BRB 5328/5890...
  • Page 24 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
