- Page 1 Crestron TPMC-3X-DSW Wall Mount Docking Station for TPMC-3X Operations & Installation Guide...
-
Page 2: Industry Compliance
This document was prepared and written by the Technical Documentation department at: Industry Compliance As of the date of manufacture, the TPMC-3X-DSW has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. -
Page 3: Table Of Contents
Crestron TPMC-3X-DSW Wall Mount Docking Station for TPMC-3X Contents Wall Mount Docking Station for TPMC-3X: TPMC-3X-DSW Introduction ..........................1 Features and Functions ....................1 Specifications ......................2 Physical Description....................3 Setup ............................5 Installation ........................5 Hardware Hookup ....................... 7 Problem Solving ........................ -
Page 5: Wall Mount Docking Station For Tpmc-3X: Tpmc-3X-Dsw

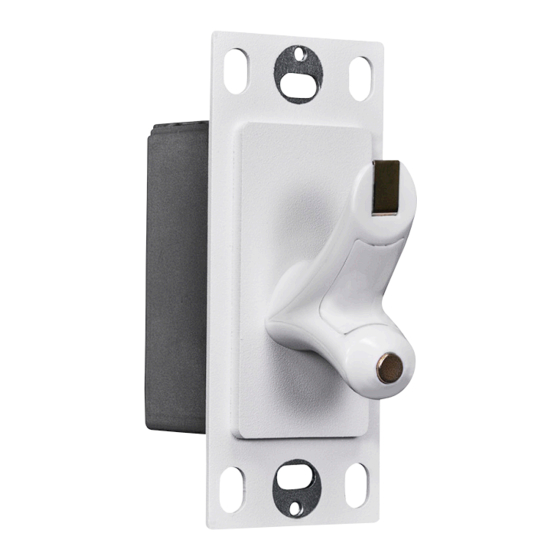

Power may be provided by the ® Cresnet control bus* or any Crestron 24 VDC regulated power source. It is available in white or black. NOTE: The TPMC-3X-DSW is not compatible with the TPMC-3X-LP. -
Page 6: Specifications
Wall Mount Docking Station for TPMC-3X Crestron TPMC-3X-DSW Specifications Specifications for the TPMC-3X-DSW are listed in the following table. TPMC-3X-DSW Specifications SPECIFICATION DETAILS Power Requirements Cresnet Power Usage 11 Watts (0.425 Amps @ 24 Volts DC) Environmental Temperature 40º to 104º F (5º to 40º C) -
Page 7: Physical Description
Crestron TPMC-3X-DSW Wall Mount Docking Station for TPMC-3X Physical Description This section provides information on the connections, controls and indicators available on the TPMC-3X-DSW. TPMC-3X-DSW Overall Dimensions (Front and Rear Views) 4.12 in (105 mm) 1.72 in (44 mm) TPMC-3X-DSW Overall Dimensions (Side View) 2.60 in... - Page 8 Wall Mount Docking Station for TPMC-3X Crestron TPMC-3X-DSW Connectors, Controls & Indicators CONNECTORS DESCRIPTION CONTROLS & INDICATORS (1) 4-pin 3.5 mm detachable terminal block; 24 Volt DC power input, Cresnet compatible 24: Power (24 Volts DC) G: Ground Ground (1) Flying lead, grounding wire 1.
-
Page 9: Setup
• Standard 1-gang electrical box (not supplied) • Flat head screwdriver (not supplied) • Two #06-32 x 1” screws (included) After Cresnet power (or other Crestron 24 Volt power source) wiring has been installed and verified, use the following procedure to install the TPMC-3X-DSW. - Page 10 Wall Mount Docking Station for TPMC-3X Crestron TPMC-3X-DSW TPMC-3X-DSW Installation 1-Gang Electrical Box (not supplied) TPMC-3X-DSW Screws (2) #06-32 x 1" (2013235) Faceplate with Hardware (not supplied) 6 • Docking Station: TPMC-3X-DSW Operations & Installation Guide – DOC. 6816B...
-
Page 11: Hardware Hookup
Make the necessary connections as called out in the illustrations that follow this paragraph. Apply power after all connections have been made. When making connections to the TPMC-3X-DSW, use Crestron power supplies for Crestron equipment. Hardware Connections for the TPMC-3X-DSW (Rear View) -
Page 12: Problem Solving
Wall Mount Docking Station for TPMC-3X Crestron TPMC-3X-DSW Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPMC-3X-DSW Troubleshooting TROUBLE POSSIBLE CORRECTIVE CAUSE(S) ACTION... -
Page 13: Further Inquiries
Crestron Web site (www.crestron.com/offices) for assistance within a particular geographic region. To post a question about Crestron products, log onto the Online Help section of the Crestron Web site (www.crestron.com/onlinehelp). First- time users must establish a user account to fully benefit from all available features. -
Page 14: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party. - Page 15 Crestron TPMC-3X-DSW Wall Mount Docking Station for TPMC-3X This page is intentionally left blank. Docking Station: TPMC-3X-DSW • 11 Operations & Installation Guide – DOC. 6816B...
- Page 16 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6816B 15 Volvo Drive Rockleigh, NJ 07647 (2024249) Tel: 888.CRESTRON 08.12 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
