- Page 1 Crestron IDOC-PAD-DSWC and IDOC-PAD2-DSWC In-Wall Docking Station for iPad and iPad 2 ® Operations & Installation Guide...
-
Page 2: Regulatory Compliance
States and/or other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. -
Page 3: Table Of Contents
Check Network Wiring....................13 Reference Documents....................14 Further Inquiries ......................14 Future Updates ......................14 Return and Warranty Policies ....................15 Merchandise Returns / Repair Service ..............15 CRESTRON Limited Warranty................. 15 Contents • i Operations & Installation Guide – DOC. 7084A... -
Page 5: In-Wall Docking Station For Ipad Idoc-Pad-Dswc And Idoc-Pad2-Dswc

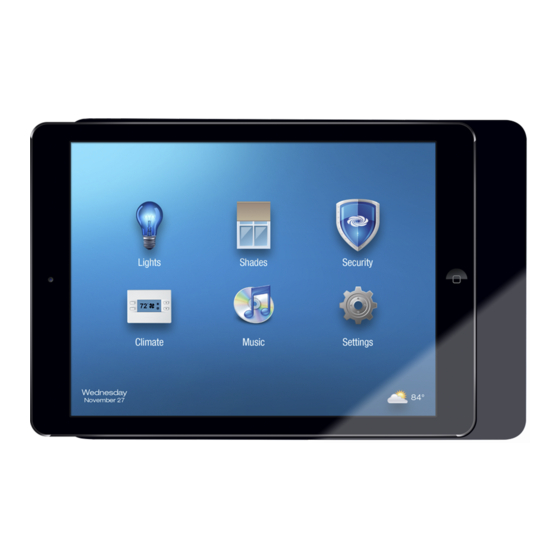

The iPad slides easily into the docking station, instantly transforming it into a stationary wall mount Crestron touch panel. With a gentle press, the iPad can be removed just as easily for portable use. -
Page 6: Specifications
® In-Wall Docking Station for iPad Crestron IDOC-PAD-DSWC As part of a complete Crestron control solution, the iPad offers a very practical and powerful touch screen controller for home theater, whole-house automation, and ® commercial AV applications. The Crestron Mobile Pro... -
Page 7: Physical Description
® Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad Physical Description This section provides information on the connections, available on your IDOC-PAD-DSWC. IDOC-PAD-DSWC Physical View IDOC-PAD-DSWC Overall Dimensions (Front and Side Views, with Faceplate, mounting clips not shown) 11.29 in 0.24 in... - Page 8 ® In-Wall Docking Station for iPad Crestron IDOC-PAD-DSWC IDOC-PAD-DSWC Overall Dimensions (Rear View, with Faceplate, mounting clips not shown) 10.38 in (264 mm) 8.32 in (212 mm) Connectors, Controls & Indicators CONNECTORS, DESCRIPTION CONTROLS & INDICATORS Dock Connection (1) Multi-pin connector for connection of iPad.
-
Page 9: Setup
Provide sufficient power to the system. CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators). For more details, refer to “Check Wiring” on page 13. - Page 10 ® In-Wall Docking Station for iPad Crestron IDOC-PAD-DSWC Mounting Parts Supplied with the IDOC-PAD-DSWC PART DESCRIPTION PART NUMBER QUANTITY Metal Mounting Clip 2014237 Overlay Template Cutout 4513896 Connector Plug, 2-pin 2003574 Screw, #6-AB x 2-1/2”, Pan Head 2014276 Screw, #04-40 x 2”, Pan Head* 2018793 The #04-40 x 2”...
- Page 11 ® Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad IDOC-PAD-DSWC Cutout Dimensions (4513896, 2 of 2) 14 in (356 mm) 1 3/4 in 1 7/8 in 2 in 2 13/16 in (44 mm) (48 mm) (51 mm) (71 mm) 3/16 in...
- Page 12 NOTE: If a PMK-IDOC-PAD-DSW is to be used, refer to the latest version of the PMK-IDOC-PAD-DSW Installation Guide (Doc. 7088) which is available from the Crestron Web site. 1. Install the four supplied #6-AB x 2-1/2” screws and mounting clips as shown in the following diagram (two on the top and two on the bottom).
-
Page 13: Docking Station Removal
In-Wall Docking Station for iPad NOTE: The IDOC-PAD-DSWC is designed for use with the original iPad while the IDOC-PAD2-DSWC is designed for use with the iPad 2. A conversion kit (IDOC-PAD-DSW-*-S CONVERSION KIT) is available to allow the IDOC-PAD-DSWC to be used with an iPad 2. For instructions on installing the conversion kit, refer to the latest version of the IDOC-PAD-DSW-*-S CONVERSION KIT Installation Guide (Doc. - Page 14 ® In-Wall Docking Station for iPad Crestron IDOC-PAD-DSWC When making connections to the IDOC-PAD-DSWC, use Crestron power supplies for Crestron equipment. Hardware Connections for the IDOC-PAD-DSWC (Rear View) POWER INPUT: From 24 VDC power source 10 • In-Wall Docking Station for iPad ®...
-
Page 15: Operation
® Crestron IDOC-PAD-DSWC In-Wall Docking Station for iPad Operation iPad Sleeve The docking station contains a retractable sleeve that provides a power connection for the iPad while also providing a flush-mount appearance. The sleeve is moved from the “open” position to the “closed” position by pushing the bottom right corner of the sleeve. -
Page 16: Remove The Ipad
® In-Wall Docking Station for iPad Crestron IDOC-PAD-DSWC 2. Push in the bottom right of the sleeve to make the iPad flush with the wall. Remove the iPad To remove the iPad from the dock: 1. Push in the bottom right of the sleeve to make the sleeve pop out of the wall. -
Page 17: Problem Solving
Cresnet power usage of the entire chain. If the unit is run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side. -
Page 18: Reference Documents
Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet (101 meters). If Cresnet HP is used for the same run, its length could extend to 1250 feet (381 meters). -
Page 19: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 20 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 7084A 15 Volvo Drive Rockleigh, NJ 07647 (2030457) Tel: 888.CRESTRON 05.11 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
