Desktop Docking Station/Charger:

TPMC-8X-DS

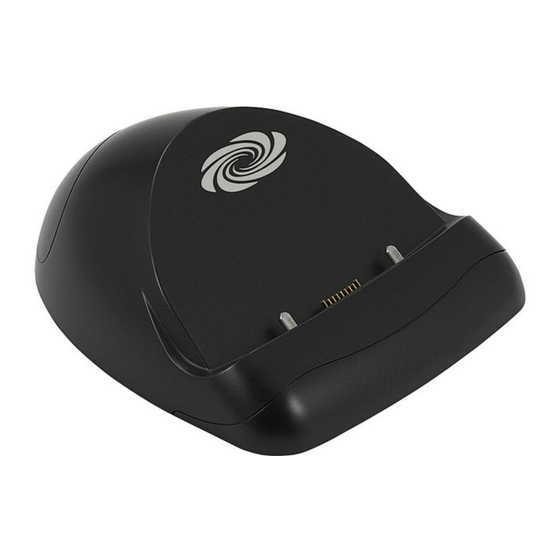

The TPMC-8X-DS provides a convenient docking station/charger for TPMC-8X Series touchpanels.
7.78 in
(198 mm)
WARNING: To avoid possible physical harm, damage to the TPMC-8X-DS or touchpanel, use only the
included power pack (100-240 VAC, 50/60 Hz) when charging.
WARNING: Charge the touchpanel in a well ventilated area away from sparks and open flame. Do not use
the touchpanel near heat sources such as radiators, heat registers, stoves or other apparatus.
CAUTION: Avoid accidental shorting of the electrical contacts to prevent possible damage to the touchpanel.
NOTE: Docking station contacts can be cleaned with electrical contact cleaner (not included). Follow
directions that come with the cleaner.

Further Inquiries

If you cannot locate specific information or have questions after reviewing this sheet, please take advantage
of Crestron's award winning customer service team by calling the Crestron corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
You can also log onto the online help section of the Crestron Web site (www.crestron.com/onlinehelp) to ask
questions about Crestron products. First-time users will need to establish a user account to fully benefit from
all available features.
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
6.46 in
(164 mm)
Connections behind cover
TPMC-8X Series)
Cover removed
+12V: LAN:
10BASE-T/
AC Power Pack
(included with 100BASE-TX
High Speed Ethernet
(supplements
TPMC-8X Series
Wi-Fi with a wired
connection)
Desktop Docking Station/Charger: TPMC-8X-DS
Specifications subject to change without notice.
2.95 in
°
(75 mm)
37
USB (2):
Keyboard, Mouse,
Mass Storage or
Other Wired Devices
DOC. 6541A
(2016826)
03.11
