Crestron TSR-310-DS Installation Manual

TSR-310-DS
Table Dock for TSR-310
Installation Guide
Description

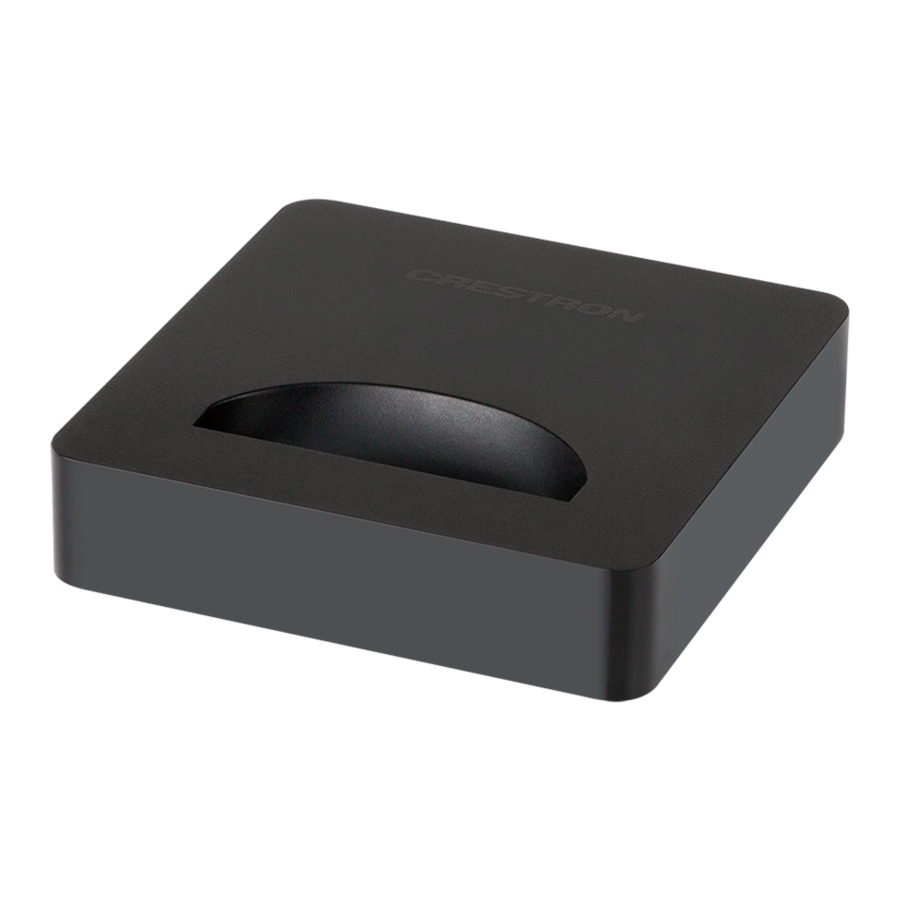

The Crestron TSR-310-DS table dock provides a charging solution for a single Crestron TSR-310 handheld touch
®
screen remote (not included). One table dock is included with each TSR-310, and additional docks may be purchased
separately to accommodate multiple docking locations.
Additional Resources
Visit the product page on the Crestron website
(www.crestron.com) for additional information and the latest
rmware updates. Instructional videos showing various
installation procedures for the TSR-310 and its accessories
may also be viewed. Use a QR reader application on your
mobile device to scan the QR images, or click the QR images
to load the web pages.
Overview
The TSR-310-DS may be placed on any at, level surface, such as a table or counter top. Refer to the following
illustrations for product dimensions.
3.67 in
(94 mm)
0.93 in
(24 mm)
NOTE: When the TSR-310 is docked in the TSR-310-DS, the combined height of the remote and the table dock is
9.00 in (229 mm).
3.67 in
(94 mm)
Product Page
Top view
Front view
Product Videos
