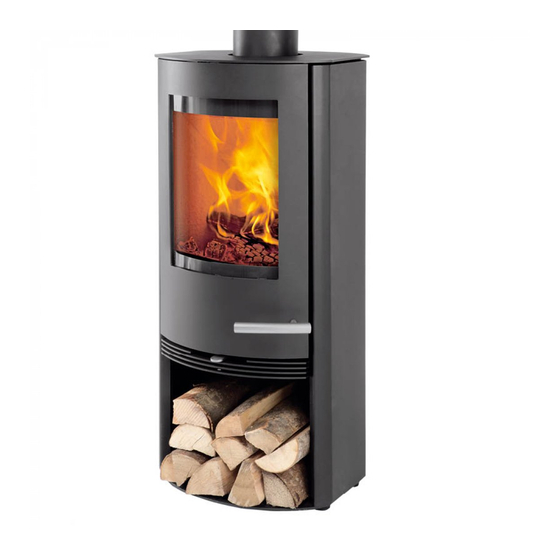

TermaTech TT20 User And Mounting Manual
Hide thumbs
Also See for TT20:
- Installation and user manual (136 pages) ,
- User and mounting manual (64 pages) ,
- Manual (35 pages)
Advertisement

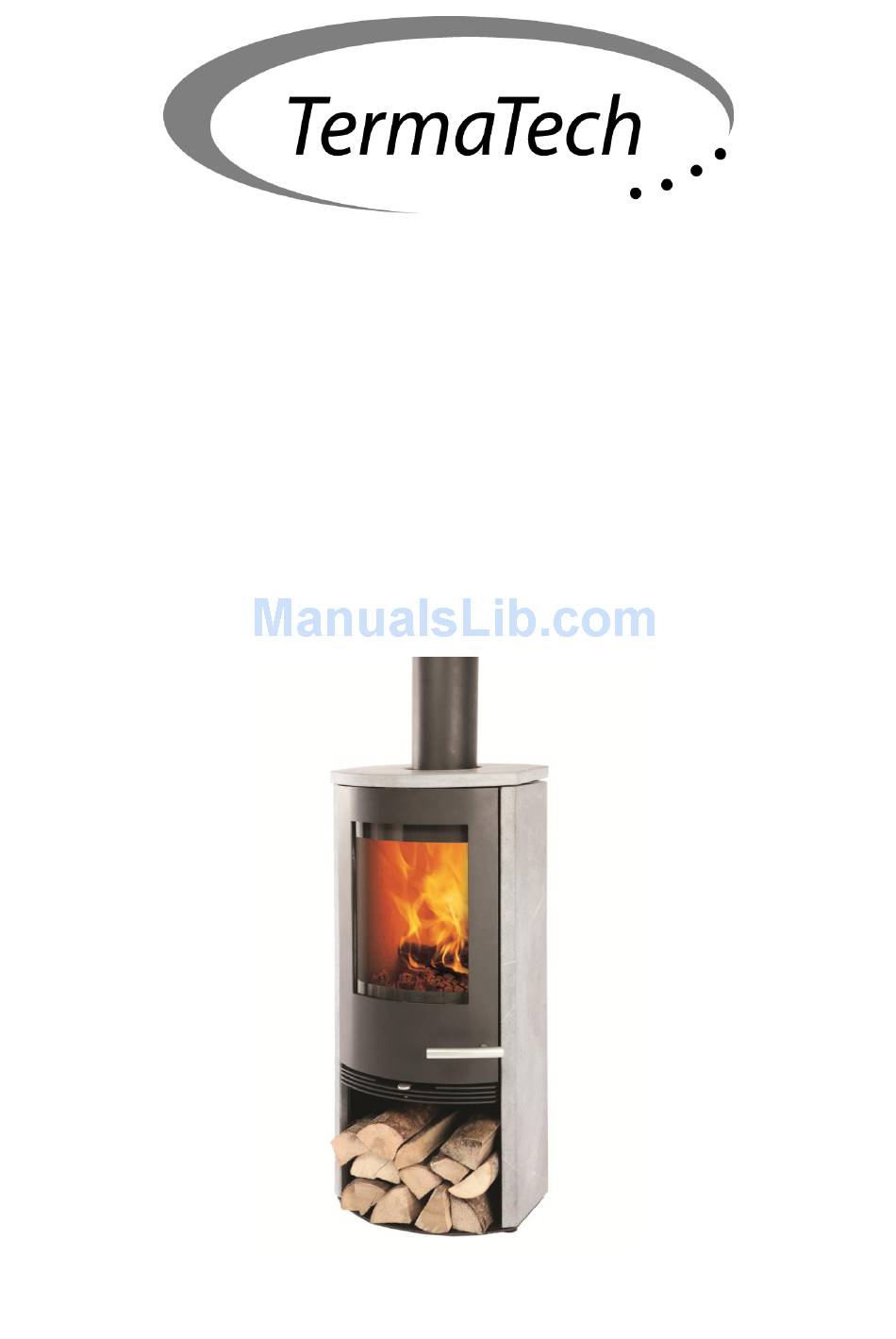

User and mounting manual
Please read also:
SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET
(last 6 pages)
Stove models:
TT20 + TT20R + TT20S + TT20RS
CE approved according to: DS/EN13240
DS (Danish Standard), DIN (Deutsche Industrienorm),
SINTEF (Norwegian Standard) and 15A (Austria)
(99-275)
(UK Version 27.05.2011)
1
Advertisement
Related Manuals for TermaTech TT20
Summary of Contents for TermaTech TT20
- Page 1 Please read also: SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET (last 6 pages) Stove models: TT20 + TT20R + TT20S + TT20RS CE approved according to: DS/EN13240 DS (Danish Standard), DIN (Deutsche Industrienorm), SINTEF (Norwegian Standard) and 15A (Austria) (99-275)
-
Page 2: Table Of Contents
Congratulations on your new wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and wish you many cosy and warm moments in the future. Before using the stove you should read the user and mounting manual and also the SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET (last 6 pages of this manual) so you are familiar with the legal requirements as well as the instructions regarding maintenance. -
Page 3: Installation Instruction
Remember to make children aware of this danger and make sure to keep them away from the wood-burning stove when it is in use. For this purpose TermaTech offers various grates for the protection of children. (Ask your dealer) Allowed in the wood-burning stove Only use dry and clean wood for combustion in the wood-burning stove. -
Page 4: Combustion Air
Therefore, in the above case, the wood-burning stove and the exhaust fan must never be in use at the same time. The TT20 models are available with combustion air branch. Ask your dealer for further information. Adjustable feet: The enclosed adjustable feet are to be used if the floor is uneven or they can also be used to create the impression that the stove is “flying”... - Page 5 Distance to flammable material: The stove must be put on a non inflammable foundation. This foundation must as a minimum cover 150 mm on each side of the stove and 300 mm in front of the stove. For inflammable material like inflammable walls made of wood, furniture, etc. the following minimum distances apply for safety reasons: 150 mm behind the stove to flammable material.
-
Page 6: Lighting Instruction
Firewood amount and damper setting can be adjusted to the individual need for heating and the draught in the concrete chimney. On your new TT20 the work with controlling the air input has been simplified so there is only one knob/damper (below the door). - Page 7 Lighting and continuous firing at EN-testing 1. The ashpan must always be closed completely, also when you light the fire. The damper/start-up device can be opened (the knob is pushed down and to the right) for a few minutes at lighting. Put about 10 kindling sticks (dia. 2-3 cm) in the bottom of the stove, laid in a criss-cross pattern as a log house.
-
Page 8: Maintenance
Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from TermaTech should be used. Right to claim compensation for defective product is under current law. -
Page 9: Hints
HINTS Lighting after long break If the stove has not been used for a long time the chimney should be checked for possible blockage before lighting. Furthermore it is a good idea to remove any dust from the wood-burning stove as it might smell after a long break. Chimney fire In case of chimney fire the doors, drawers and damper of the wood-burning stove must be closed immediately in order to shut of the supply of oxygen. - Page 10 Storage of the firewood is best under a roof, however with good ventilation, e.g. in a carport or under a shed roof. Place the wood on a wooden pallet or the like so it is free from the ground. Fresh wood that has been sawed and split must be stored for about 1-2 years this way until the moisture in the wood is down to 15-20%.
-
Page 11: Technical Specifications
1088mm Width: 470mm 531mm Depth: 419mm 419mm Weight: ca. 155kg ca. 177kg Average values for testing of TT20 models: Exhaust gas temperature 273 °C Exhaust gas mass flow 4.0 g/s Efficiency 83,4% Nominal Heat output 5 kW Flue draught 12 Pa... - Page 12 SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
- Page 13 Asbestos This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the course of installation then please seek specialist guidance and use appropriate protective equipment. Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury.
- Page 14 A single wall metal fluepipe is suitable for connecting the stove to the chimney but is not suitable for use as the complete chimney. The chimney and connecting fluepipe must have a minimum diameter of 150 mm and its dimension should be not less than the size of the outlet socket of the stove.
- Page 15 accordance with their instructions. In some cases it may be necessary to fit an adaptor to increase the diameter of the flue to the minimum required 150 mm section of the chimney or liner. Commissioning and handover Ensure all parts are fitted in accordance with the instructions. On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out, before lighting the stove.
- Page 16 Your installer should have fitted a CO alarm in the same room as the appliance. If the alarm sounds unexpectedly, follow the instructions given under “Warning Note” above. Use of fireguard When using the stove in situations where children, aged and/or infirm persons are present a fireguard must be used to prevent accidental contact with the stove.
- Page 17 In accordance with current Building Regulations the installer may have fitted a permanent air supply vent into the room in which the stove is installed to provide combustion air. This air vent should not under any circumstances be shut off or sealed. USER OPERATING INSTRUCTIONS Please read the important notices given above before referring to the main instruction book for detailed operating instructions.
