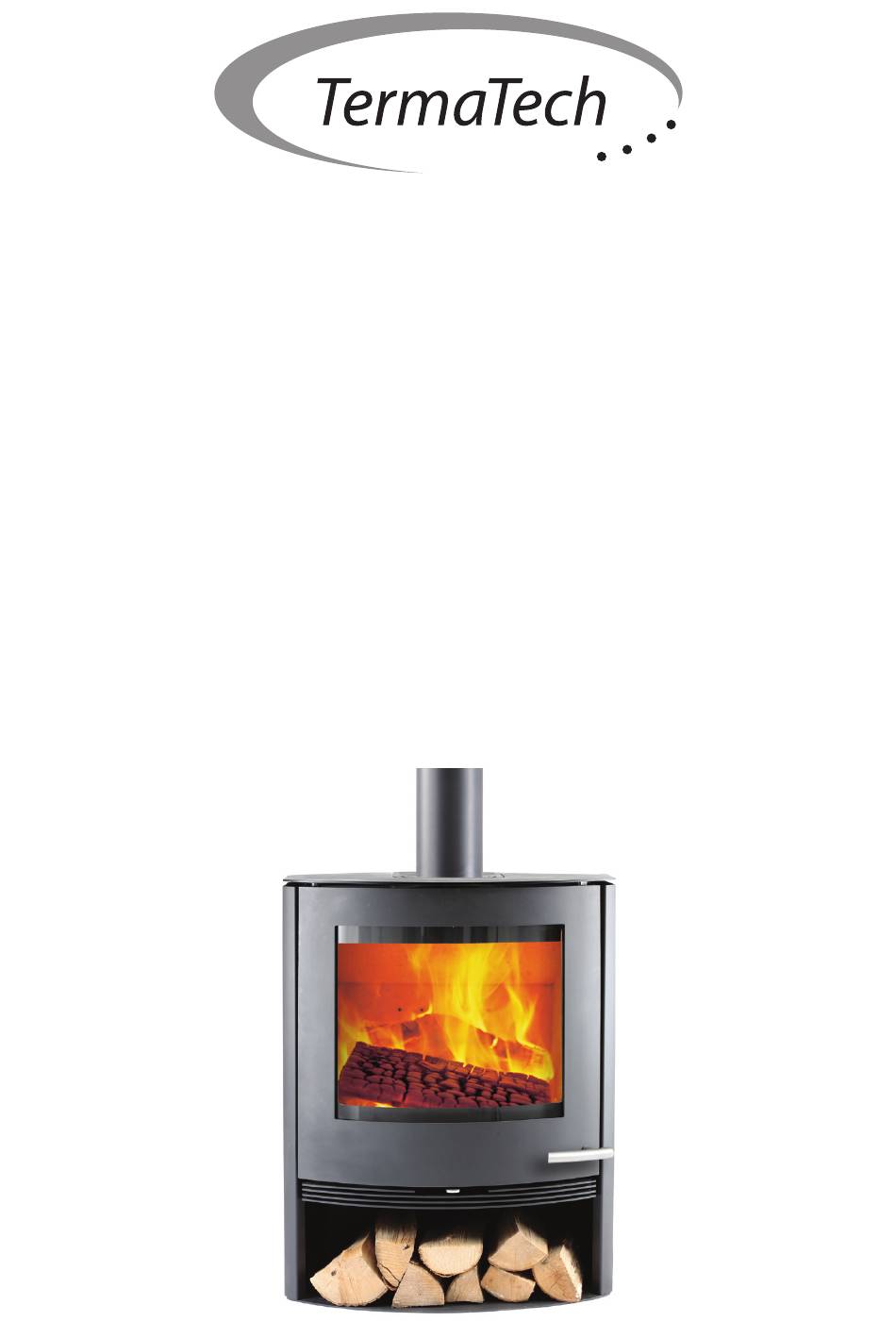

- Page 1 User and mounting manual TT22 + TT22S + TT22H + TT22HS Please read also: SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET (last 6 pages) CE approved according to: DS/EN13240 DS (Danish Standard), DIN (Deutsche Industrienorm), SINTEF (Norwegian Standard) and 15A (Austria)
-
Page 2: Table Of Contents
Congratulations on your new wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and wish you many cosy and warm moments in the future. Before using the stove you should read the user and mounting ma- nual and also the SUPPLEMENTARY INSTALLATION INSTRUCTIONS... - Page 3 Remember to make children aware of this danger and make sure to keep them away from the wood-burning stove when it is in use. For this purpose TermaTech offers various grates for the protection of children. (Ask your dealer) Allowed in the wood-burning stove Only use dry and clean wood for combustion in the wood-burning stove.
- Page 4 The amount of air that must be used for combustion is approxim- ately 8.2m3/per kg. of firewood. The TT22 models are available with combustion air branch, which has a connecting pipe/spigot of Ø96mm, use an air hose of Ø100mm.
- Page 5 For inflammable material like inflammable walls made of wood, fur- niture, etc. the following minimum distances apply for safety rea- sons: 150 mm behind the stove to flammable material. (picture 1) 450 mm beside the stove to flammable material. (picture 1) 200 mm behind/beside if mounted 45°...
-
Page 6: Installation Instruction
On your new TT22/TT22S the work with controlling the air input has been simplified so there is only one knob/damper (below the door). Between the left position and the middle position you have the nor- mal area where you control the air input. -
Page 7: Maintenance
the door completely. Stay by the stove as long as the door is ajar. 3. When the fire has burned to embers (there are no more flames) open the door gently so the ash is not whirled out through the door. Gently spread out the embers with a poker so they are even. -
Page 8: Warranty/Right To Invoke Lack Of Conformity
Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from TermaTech should be used. Right to claim compensation for defective product is under current law. -
Page 9: Hints
If a fault occurs during delivery to the customer, or if such a fault arises during the warranty period which is covered by this warranty, TermaTech A/S agrees to send a suitable replacement part free of charge to rectify the fault. Any additional obligation of TermaTech A/S to remedy the fault, for example, in the form of installation of the replacement part, does not exist. - Page 10 about 20-30cm long and have a diameter of 2-5cm. Wood like birch, beech, oak, ash, elm, pine wood and wood from fruit trees is all suitable for splitting into firewood. Waste products like pressure-treated wood, chipboard, coloured brochure or glossy paper must not be used in a wood-burning stove. They develop hydrochloric acid or heavy metals which cause a lot of damage to the stove and the environment.
-
Page 11: Technical Specifications
The wood is too moist. Lack of draught in the chimney. Check that the damper is not closed. Door is closed too early at lighting (point 3 section 2). TECHNICAL SPECIFICATIONS TT22 TT22S Nominal heat output 7,5 kW 7,5 kW... -
Page 12: Supplementary Instructions Uk
1093mm Width: 756mm 756mm Depth: 476mm 476mm Weight: ca. 190kg ca. 250kg Average values for testing of TT22 models: Exhaust gas temperature 259 °C Exhaust gas mass flow 6,2 g/s Efficiency Nominal Heat output 7,5 kW Flue draught 12 Pa... - Page 13 Order made and signed by the Secretary of State or Minister in the devolved administrations. The TermaTech TT22, TT22S have been recommended as suitable for use in smoke control areas when burning wood logs and when fitted...
- Page 14 STOVE PERFORMANCE Please refer to the table in the main instruction manual for details of the stoves’ performances PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance. There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into the room.
- Page 15 the outlet socket of the stove. Any bend in the chimney or connecting fluepipe should not exceed 45°. 90° bends should not be used. Combustible material should not be located where the heat dissipa- ting through the walls of fireplaces or flues could ignite it. Therefore when installing the stove in the presence of combustible materials due account must be taken of the guidance on the separation of combustible material given in Building Regulations Approved Docu-...
- Page 16 that allows connection to either a masonry chimney or a prefabri- cated factory made insulated metal chimney in accordance with their instructions. In some cases it may be necessary to fit an adaptor to increase the diameter of the flue to the minimum required 150 mm section of the chimney or liner.
- Page 17 and free from any obstructions. As part of the stoves’ commissioning and handover the installer should have shown you how to operate the stove correctly. CO Alarm Your installer should have fitted a CO alarm in the same room as the appliance.
- Page 18 If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and ash that the new fuel charge will ignite. If the fire bed is too low or cool, suitable kindling must be used to re-light fires Fuel overloading The maximum amount of fuel specified in this manual should not be...
- Page 19 Damper control unit for smoke control areas...
- Page 20 This installation and user guide with related claim and war- ranty provisions, concerns TermaTech wood-burning stove: Model: ___________ Productions/serialnumber: Purchased on: www.termatech.com TermaTech AS • DK-8260 Viby J. 99-234 UK version 11/2015...
