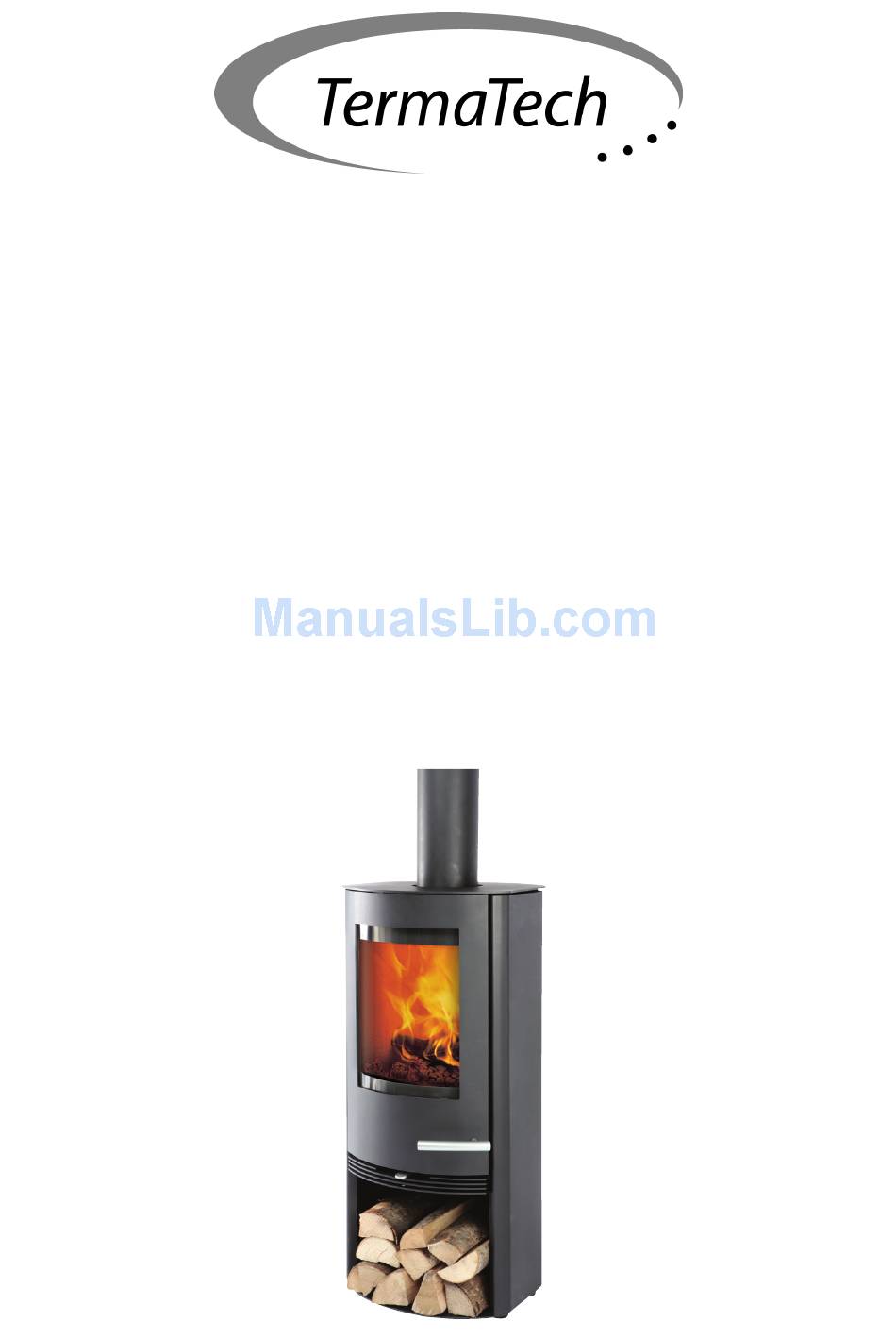

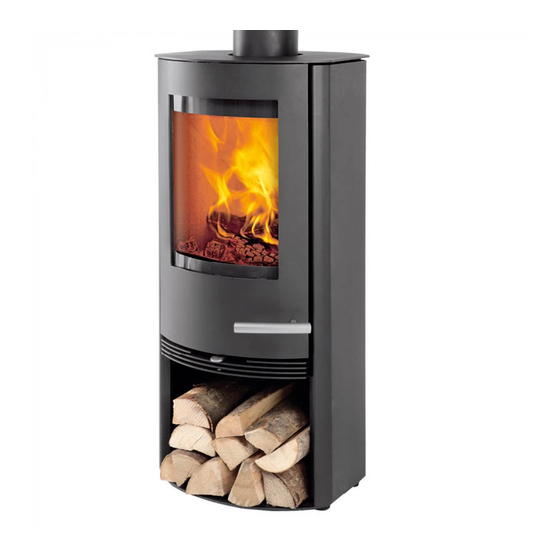

- Page 1 User and mounting manual TT20 + TT20Bazic + TT20R +TT20S + TT20RS + TT20SA Please read also: SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET (last 6 pages) CE approved according to: EN13240 DS (Danish Standard), DIN (Deutsche Industrienorm), SINTEF (Norwegian Standard) and 15A (Austria)
-
Page 2: Table Of Contents
Congratulations on your new wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and wish you many cosy and warm moments in the future. Before using the stove you should read the user and mounting ma- nual and also the SUPPLEMENTARY INSTALLATION INSTRUCTIONS... - Page 3 Remember to make children aware of this danger and make sure to keep them away from the wood-burning stove when it is in use. For this purpose TermaTech offers various grates for the protection of children. (Ask your dealer) Allowed in the wood-burning stove Only use dry and clean wood for combustion in the wood-burning stove.
- Page 4 other treated or impregnated materials is not allowed as it is very hazardous to the environment. Furthermore the stove and the chim- ney will be damaged by these materials. There is a danger of emis- sion of unhealthy substances which can also lead to complaints from neighbours.
- Page 5 Therefore, in the above case, the wood-burning stove and the exhaust fan must never be in use at the same time. The TT20 models are available with combustion air branch. Ask your dealer for further information. Adjustable feet:...
-
Page 6: Installation Instructions In Smoke Control Areas
Distance to non-flammable materials: It is recommended that there is a minimum of 80-100 mm behind and beside the stove so the stove can dispose of the heat, this di- stance makes cleaning of and around the stove easier. In addition, refer to the relevant Building Regulations. - Page 7 On your new TT20 the work with controlling the air input has been simplified so there is only one knob/damper (below the door). Between the left position and the middle position you have the nor- mal area where you control the air input.
-
Page 8: Maintenance
Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from TermaTech should be used. Right to claim compensation for defective product is under current law. -
Page 9: Warranty/Right To Invoke Lack Of Conformity
If a fault occurs during delivery to the customer, or if such a fault arises during the warranty period which is covered by this warranty, TermaTech A/S agrees to send a suitable replacement part free of charge to rectify the fault. Any additional obligation of TermaTech A/S to remedy the fault, for example, in the form of installation of the replacement part, does not exist. -
Page 10: Hints
Repairs of faults or replacement of parts on the product do not extend the product or replacement part’s warranty period. Neither does a new warranty period begin for the product or replaced part. Apart from the above warranty rules, the consumer also has those rights which are evident from the obligatory consumer legislation Any fault or defect must be examined by the vendor who has sold the product. - Page 11 chimney fire. If the firewood is too dry it will burn too quickly. Often the gasses in the wood are released faster than they can burn and some go unburned through the chimney. This also gives lower ex- ploitation and harms the environment. So it is a balance that is quite easy to find with a little practise.
- Page 12 may be blocked. Smoke at soot smell This can be caused by down-draught in the chimney and most often happens in specific wind directions. The chimney may be too short for the ridge or trees may have grown and are creating turbulence. Remember not to open the door while there are flames.
-
Page 13: Technical Specifications
1088mm Width: 470mm 531mm Depth: 419mm 419mm Weight: ca. 155kg ca. 177kg Average values for testing of TT20 models: Exhaust gas temperature 273 °C Exhaust gas mass flow 4.0 g/s Efficiency 83,4% Nominal Heat output 5 kW Flue draught 12 Pa... - Page 14 SUPPLEMENTARY INSTALLATION INSTRUCTIONS UK READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMEN- TARY INSTRUCTIONS CAREFULLY BEFORE INSTALLATION These instructions together with those in the instruction booklet co- ver the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
- Page 15 Order made and signed by the Secretary of State or Minister in the devolved administrations. The TermaTech TT20, TT20Bazic, TT20R, TT20S and TT20RS have been recommended as suitable for use in smoke control areas when burning wood logs and when fitted with a damper control unit to prevent closure of the air control lever beyond the 22mm open position.
- Page 16 stove as this can cause the stove to emit fumes into the room. Chimney In order for the stove to perform satisfactorily the chimney height must be sufficient to ensure an adequate draught of approximately 15 Pa so as to clear the products of combustion and prevent smoke problems into the room.
- Page 17 If it is found that there is excessive draught in the chimney then a draught stabiliser should be fitted. Fitting of a draught stabiliser will affect the requirement for the permanent air supply into the room in which the stove is fitted in accordance with Approved Document J (see also combustion air supply).
- Page 18 that the flue is functioning correctly and that all products of combu- stion are vented safely to atmosphere via the chimney terminal. On completion of the installation and commissioning ensure that the operating instructions for the stove are left with the customer. En- sure to advise the customer on the correct use of the appliance and warn them to use only the recommended fuel for the stove.
- Page 19 IMPORTANT NOTES General Before lighting the stove check with the installer that the installation work and commissioning checks described above have been carried out correctly and that the chimney has been swept clean, is sound and free from any obstructions. As part of the stoves’ commissioning and handover the installer should have shown you how to operate the stove correctly.
- Page 20 Aerosol sprays Do not use an aerosol spray on or near the stove when it is alight. Use of operating tools Always use the operating tools provided when handling parts likely to be hot when the stove is in use. Refuelling on to a low fire bed If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke emission can occur.
- Page 21 solid mineral fuel as indicated in the main stove manuals. HETAS Ltd Approval HETAS approval may be limited to specific fuel types as detailed in the main instruction manuals. Approval does not cover the use of other fuels either alone or mixed with the recommended fuel, nor does it cover instructions for the use of other fuels.
- Page 22 Damper control unit for smoke control areas...
- Page 24 This installation and user guide with related claim and war- ranty provisions, concerns TermaTech wood-burning stove: Model: ___________ Productions/serialnumber: Purchased on: TermaTech AS • Denmark www.termatech.com 99-275 UK version 11/2015...
