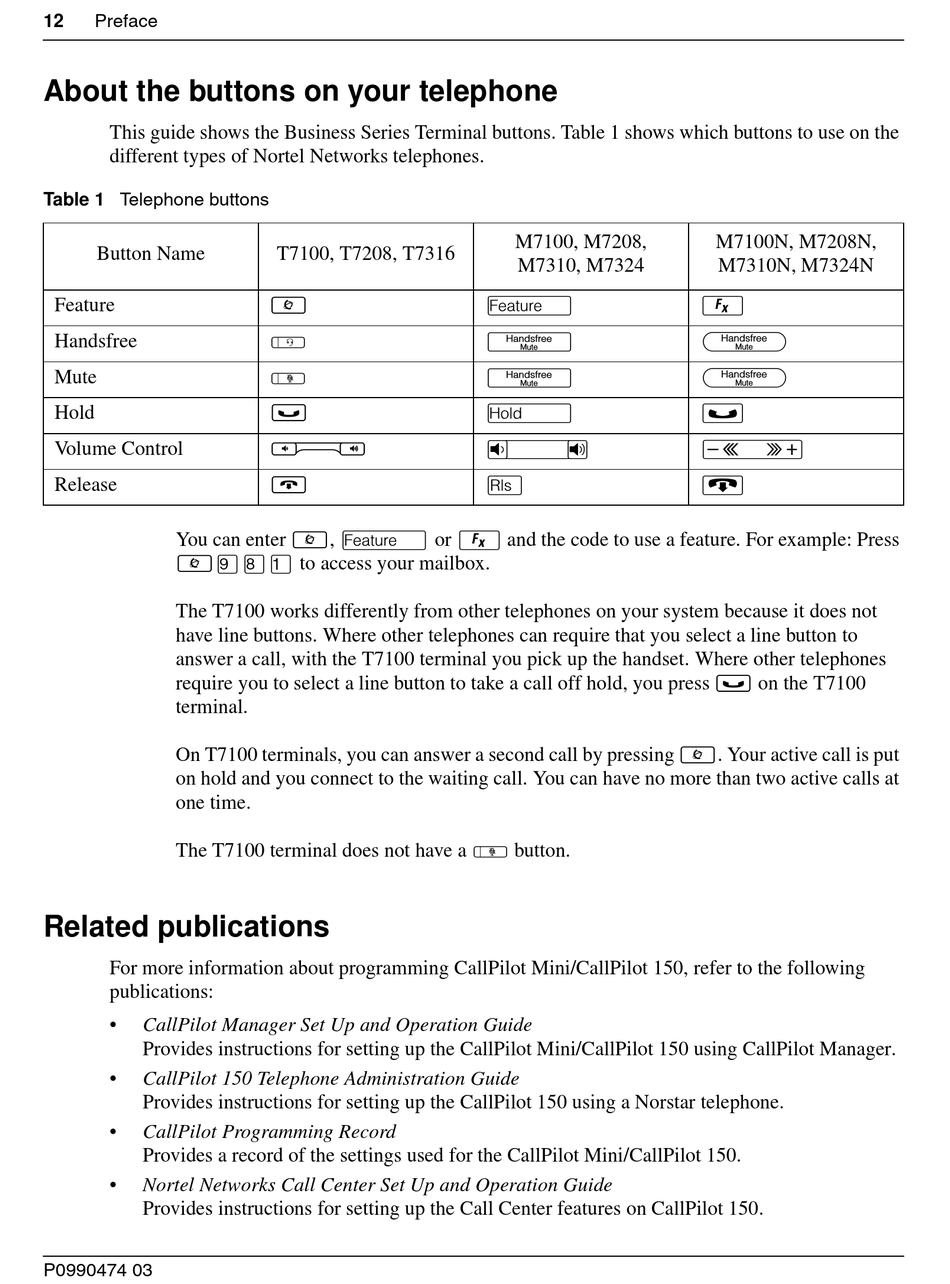

12 Preface

About the buttons on your telephone

This guide shows the Business Series Terminal buttons. Table 1 shows which buttons to use on the
different types of Nortel Networks telephones.

Table 1 Telephone buttons

Button Name
Feature
Handsfree
Mute
Hold
Volume Control
Release
You can enter ≤, ƒ or ƒ and the code to use a feature. For example: Press
≤·°⁄ to access your mailbox.
The T7100 works differently from other telephones on your system because it does not
have line buttons. Where other telephones can require that you select a line button to
answer a call, with the T7100 terminal you pick up the handset. Where other telephones
require you to select a line button to take a call off hold, you press ≥ on the T7100
terminal.
On T7100 terminals, you can answer a second call by pressing ≤. Your active call is put
on hold and you connect to the waiting call. You can have no more than two active calls at
one time.
The T7100 terminal does not have a © button.

Related publications

For more information about programming CallPilot Mini/CallPilot 150, refer to the following
publications:
• CallPilot Manager Set Up and Operation Guide
Provides instructions for setting up the CallPilot Mini/CallPilot 150 using CallPilot Manager.
• CallPilot 150 Telephone Administration Guide
Provides instructions for setting up the CallPilot 150 using a Norstar telephone.
• CallPilot Programming Record
Provides a record of the settings used for the CallPilot Mini/CallPilot 150.
• Nortel Networks Call Center Set Up and Operation Guide
Provides instructions for setting up the Call Center features on CallPilot 150.
P0990474 03
T7100, T7208, T7316
≤
¬
©
≥
√
®
M7100, M7208,
M7310, M7324
ƒ
©
©
˙
√
®
M7100N, M7208N,
M7310N, M7324N
ƒ
©
©
˙
√
®
