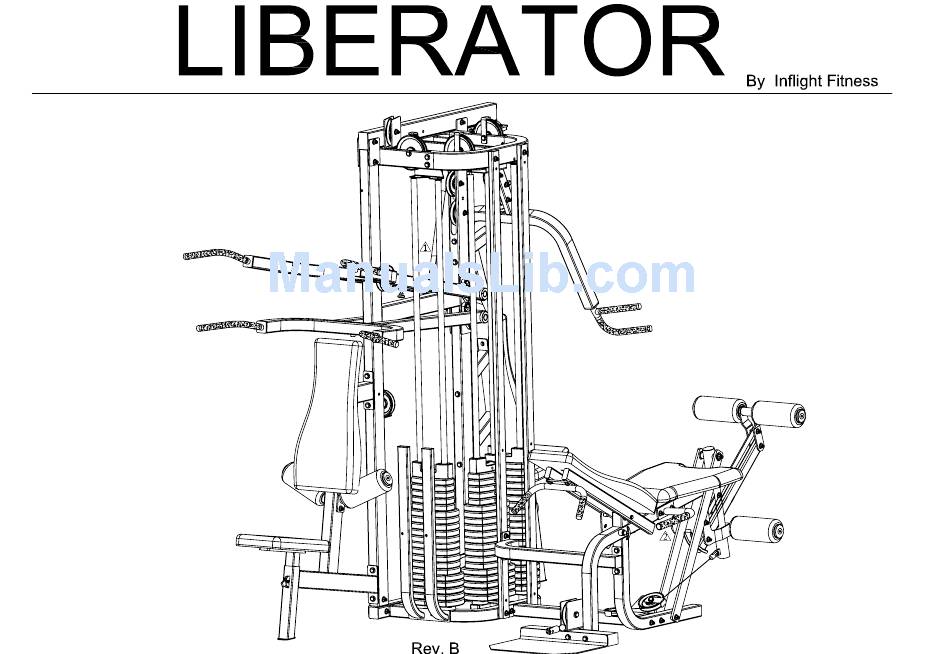

Inflight Fitness Liberator Assembly Instructions Manual

Multi-gym
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Liberator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inflight Fitness Liberator

Summary of Contents for Inflight Fitness Liberator

  • Page 2: Important Notices

    It is strongly recommended that a qualified dealer assemble this Liberator Multi-Gym. Should there be any question during assembly contact your authorized Inflight Fitness dealer or call direct to 714 821 4177. Before beginning assembly read this instruction manual thoroughly. Unpack and verify all parts and hardware quantities against the parts and hardware lists.
  • Page 3 Note: In steps A thru G do not fully tighten bolts until instructed to tighten. A. Attach MAIN UPRIGHT to MAIN FRAME and BASE FRAME using 2-3" bolts, 2-2 3/4" bolts, 8-washers and 4-locknuts. B. Attach "pulley end" of MID FRAME to MAIN UPRIGHT, MAIN FRAME and BASE FRAME using 2-3 1/2"...
  • Page 4 Note: For steps D and E it is strongly recommended that another person be present to assist. D. Attach TOP FRAME to MAIN UPRIGHT using 2-3" bolts, 4- washers, and 2-locknuts. E. Attach TOP BEAM between flanges of MAIN UPRIGHT and TOP FRAME using 4-3"...
  • Page 5 A. Insert GUIDE RODS into holes in BASE FRAME. B. Place 1 weight stack donut on each GUIDE ROD and allow to slide down to top of BASE FRAME. C. Apply lubricant to the GUIDE RODS from the WEIGHT STACK DONUTS to the tops of the GUIDE RODS.
  • Page 6 IMPORTANT: Before assembling the weight stacks locate the TOP WEIGHTS pre-assembled with the cable marked for the position you are assembling (marked CHEST PRESS for the CHEST PRESS station and marked LAT/SHOULDER for the LAT/SHOULDER station). G. Repeat procedure A through E for remaining 2-weight stacks. H.
  • Page 7 Note: For step A it is strongly recommended that another person be present to assist. A. Attach CHEST PRESS to bracket on TOP BEAM using 2-pillow block bearings, 4-1 1/2" bolts, 8- washers and 2-locknuts. Make sure that set screw side of bearings are facing outward. Finger tighten only.
  • Page 8 A. Attach SEAT FRAME to MAIN UPRIGHT using 3-3 3/4" bolts, 6-washers and 3-locknuts. See picture for correct location of holes. B. In the remaining hole of SEAT FRAME, install 1-5 1/2" bolt and 1-washer through SEAT FRAME and MAIN UPRIGHT. Then install onto the bolt 1-1/2” Barrel Spacer, 1-4 ½”...
  • Page 9 D. Attach SHOULDER PRESS to MAIN UPRIGHT (with handles angled downward) using 1-10 1/2" shaft. Tighten shaft collars, but not set screws in flange bearings. E. Align SHOULDER PRESS by viewing from front and rear, adjusting as necessary. Tighten bolts and set screws.
  • Page 10 A. Install 2-FLANGE BEARINGS in upper holes of BEARING PLATES on MAIN UPRIGHT using 2-4 1/4" bolts, 4-washers and 2-locknuts. Do not tighten. Note: Recommend help for step B and E. B. Attach LAT PULL to MAIN UPRIGHT (with handles angled downward) using 1-10 1/2"...
  • Page 11 D. Attach 1 end of LAT SPRING to bracket located on TOP FRAME using 1-1 1/4" bolt and 1-locknut. E. While having an assistant hold LAT PULL all the way up, use both hands to stretch LAT SPRING down and slide end onto LAT HOOK located on LAT PULL.
  • Page 12 A. Attach MULTI-LEG MAIN to MULTI-LEG BASE using 2-2 3/4" bolts, 4-washers and 2-locknuts. Do not tighten. B. Attach MULTI-LEG BRACE to MULTI-LEG MAIN and MAIN BRACE #1 using 2-2 3/4" bolts, 2-1 3/4" bolts, 8- washers and 4-locknuts. Tighten bolts from steps A and B at this time. C.
  • Page 13 Multi-Leg Assembly LIBERATOR BENT HANDLES 2-3"BOLTS 4-WASHERS 2-LOCKNUTS BACKPAD SUPPORT TUBES 1-1/2"X 5 1/2" BOLT 2-1/2" THIN WASHERS 1-1/2" THIN NYLOCK NUT LEG EXT. ROTATING ARM 2-1" BUTTONHEAD BOLTS 2 - WASHERS...
  • Page 14 A. Attach FOOTPLATE to LOW PULLEY ATTACHMENT TUBE and MULTI-LEG MAIN using 2 – 4” bolts, 4 – washers, and 2 – locknuts. Tighten bolts. B. Attach KNEE GUARD to BASE FRAME using 2 – 2 ¾” bolts, 4 – washers and 2 – locknuts. Tighten bolts.
  • Page 15 A. Attach SEAT PAD to SEAT SUPPORT using 2 – 1 ¼” bolts and 2 – washers. Tighten bolts. B. Attach SEAT SUPPORT to MULTI-LEG MAIN using 1 – 1/2” x 7” bolt and 1 – 1/2” nylock nut. Tighten bolt.
  • Page 16 C. Attach BENT LEG CURL HANDLE to holes at top of BACKPAD SUPPORT TUBES and to top of BACKPAD using 2-3 ¼” bolts and 2-washers. Do not tighten. D. Attach lower section of BACKPAD to lower holes of BACKPAD SUPPORT TUBES using 1-3” bolt and 1- washer.
  • Page 17 Insert a Roller Tube through each hole in the Leg Extension / Leg Curl Arm. Adjust the tubes so that there are equal lengths protruding from each side of the arm. Tighten the setscrews. G. Slide 1- 1” Plastic Washer and 1- Roller Pad onto each end of the tube.
  • Page 18 A. Attach 1-SIX SIDED PAD to SEAT STEM using 2-1 ¼” bolts and 2-washers. Tighten bolts. B. Attach 1-BACKPAD to BACKPAD FRAME using 2-1” bolts and 2-washers. Tighten bolts.
  • Page 19 A. Attach 2-LAT HOLD-DOWNS to SEAT FRAME using 2-3” bolts, 4-washers and 2-locknuts. Tighten bolts. B. Attach 1-9” x 16” PAD to SEAT STEM using 2-1 ¼” bolts and 2-washers. Tighten bolts. C. Attach 1-BACKPAD to SEAT FRAME using 1-4” bolt, 1-1 1/4”...
  • Page 20 A. Attach Barrel End of MULTI-LEG UPPER cable and 1-6" PULLEY to TOP FRAME using 1-3 1/2" bolt, 2-1/2" step spacers, 1-washer and 1-thin nylock nut. Tighten bolt enough to allow rotation of barrel end of cable...
  • Page 21 B. Loop Multi-Leg Lower CABLE in half ensuring that BARREL END side of cable is toward LEG EXT. ROTATING ARM, and ROUND CLEVIS END is toward LOW PULLEY. Push LOOP under CENTER WEIGHT STACK (between WEIGHT STACK DONUTS). Push through approximately 48" C.
  • Page 22 Place the end of the cable with the ball and clevis between 1 – 4 ½” Pulley and 1 – cable retainer and attach to Multi-Leg Base using 1 – 2” bolt, 2- washers and 1- locknut. Repeat for the cable end with clevis only. Place clevis and ball end of cable under 1 –...
  • Page 24 H. Position 1-4 1/2" PULLEY between 2-FLOATING PULLEY PLATES and bolt together using 1-1 3/4" bolt, 2-washers and 1-locknut. Do not tighten. Place assembly on top of the MULTI-LEG UPPER CABLE as shown in illustration. J. Wrap MULTI-LEG LOWER CABLE around top side of 1-4 1/2" PULLEY and mount in between LARGE FLOATING PULLEY PLATES below previously installed pulley using 1-1 3/4"...
  • Page 25 Extend the Chest Press Cable from the weight stack up to the slot in the top frame, Loop the cable over a 6” pulley and attach within the slot using 1- 3/8” x 3” bolt, 2- ½” step spacers, 1- cable retainer and 1- 3/8” locknut Extend the cable to the pulley flange on the base frame.
  • Page 26 Chest Press Cable and Pulley Installation LIBERATOR 1-6" PULLEY CABLE RETAINER 1-3" BOLT 2-1/2" STEP SPACERS 1-WASHER 1-CABLE RETAINER 1-LOCKNUT E and G 2-4 1/2" PULLEY 2-3 1/2" BOLT 4-1" STEP SPACERS 2-LOCKNUT 1-3 1/2" BOLT 2-WASHERS 1-LOCKNUT D and F 2-4 1/2"...
  • Page 27 Lat / Shoulder Cable and Pulley Installation LIBERATOR C to D See page 17 b Lat / Shoulder cable for A, B and C from Top Frame Pulley to lower pulley on main upright See page 17 c for D, E and F.
  • Page 30 A. Attach THREADED LIN K and TRICEP STRAP to ROUND CLEVIS END of CHEST PRESS CABLE using the 1- Clevis Pin and E-Clip pre-installed in the cable.
  • Page 31 B. Attach THREADED LINK, CHAIN and STRAIGHT REVOLVING HANDLE to ROUND CLEVIS END of LOW PULLEY CABLE using the Clevis Pin and E-Clip pre-installed in the cable.
