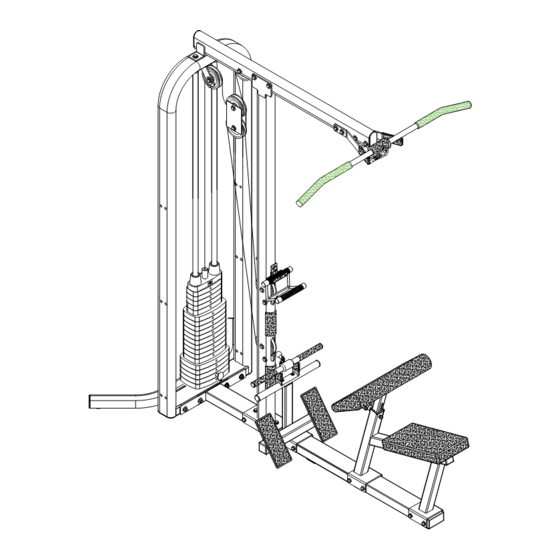

Page 3: Important Notices
Maintain your machine in good working order by following the maintenance schedule provided on the equipment. It is strongly recommended that a qualified dealer assemble this MULTI-LAT/ARM machine Should there be any question during assembly contact your authorized Inflight Fitness dealer or call direct to 714 821 4177. -
Page 4: M La Parts And Hardware
M LA PARTS AND HARDWARE H ARDWARE D ESCRIPTION QUANTITY Bolts 3/8” x 8 ½’ 3/8” x 5” 3/8” x 4 ½” 3/8” x 3” 3/8” x 2 ¾” 3/8” x 2 ½” 3/8” x 2 ¼” 3/8” x 1 ¾” 3/8”... -
Page 5: Black Frame Parts
M LA PARTS AND HARDWARE P ARTS W HITE/PLATINUM FRAME PARTS MISCELLANEOUS Loop Upright Guide Rods (2) Base Tube Weight Stack Cushions (2) Top Beam Lat Bar with Pad Upper Pulley Bracket Straight Bar Stabilizer Parallel Row Handles Seat Frame 5# Weight Plates (1 box of 5) BLACK FRAME PARTS 10# Weight Plates (2 boxes of 5) -
Page 6: M Ain Structure Assembly
M LA ASSEMBLY INSTRUCTIONS M AIN STRUCTURE ASSEMBLY A. Attach Loop Upright, Base Tube, and Stabilizer using 4 – 3/8” x 8 ½” bolts, 4 – curved 3/8” washers, 4 – 3/8” flat washers and 4 - 3/8” nuts. B. Attach Main Upright to Base Tube using 2 – 3/8” x 5” bolts, 4 – 3/8” flat washers and 2 –... -
Page 8: Cable And Pulley Installation
M LA ASSEMBLY INSTRUCTIONS CABLE AND PULLEY INSTALLATION F. Before proceeding with the cable installation slide the loop of the weight pin lanyard over the end of the Upper MLA Cable down to the top weight. G. Remove the two bolts installed at step C. Carefully insert the end of the Upper Cable with the ball and chain link into the pulley window at the aft end of the Top Beam. - Page 10 M LA ASSEMBLY INSTRUCTIONS STRUCTURE DETAILS L. Attach Preacher Curl Footrest to Base Tube using 2 – 3/8” x 5 “ bolts, 4 – 3/8” flat washers, and 2 – 3/8” nuts. M. Attach Straight Bar Holder to Preacher Curl Footrest using 2 – 5/16” x ½” Flat Head Screws N.
-
Page 12: Cable Adjustment
M LA ASSEMBLY INSTRUCTIONS C ABLE ADJUSTMENT V. Once the Multi-Lat/Arm is completely assembled, loosen bolt that attaches pulley to the Upper Pulley Bracket (installed at step H.). Raise or lower the bolt and pulley to remove slack from the cables. Make sure that the Weight Pin still engages all weight plates with the Selector Stem.
Need help?
Do you have a question about the Multi-Lat/Arm and is the answer not in the manual?
Questions and answers
Hello , I need the cable replacement kit for the upper pulley part and the lower as well. I can’t seem to find it for purchase on the site. It’s for the multi lat-arm machine.
