A.2. Connecting Leads to a Spring Clamp Terminal Block
The unit is delivered with two terminal block connectors. The connectors enable you to connect wires for
either the Relay Output or Alarm Input and then connect them to the unit.
To connect a wire to the spring clamp terminal block:
Strip the insulation form the end of each wire that is to be connected to the terminal block.
1.
Approximately 1 cm (2.54") of wire should be exposed.
With a small screwdriver, press in and hold the orange spring clamp button next to the female
2.
outlet where the wire will be inserted.
Insert the stripped end of the wire into the female outlet.
3.
Release the orange spring clamp button.
4.

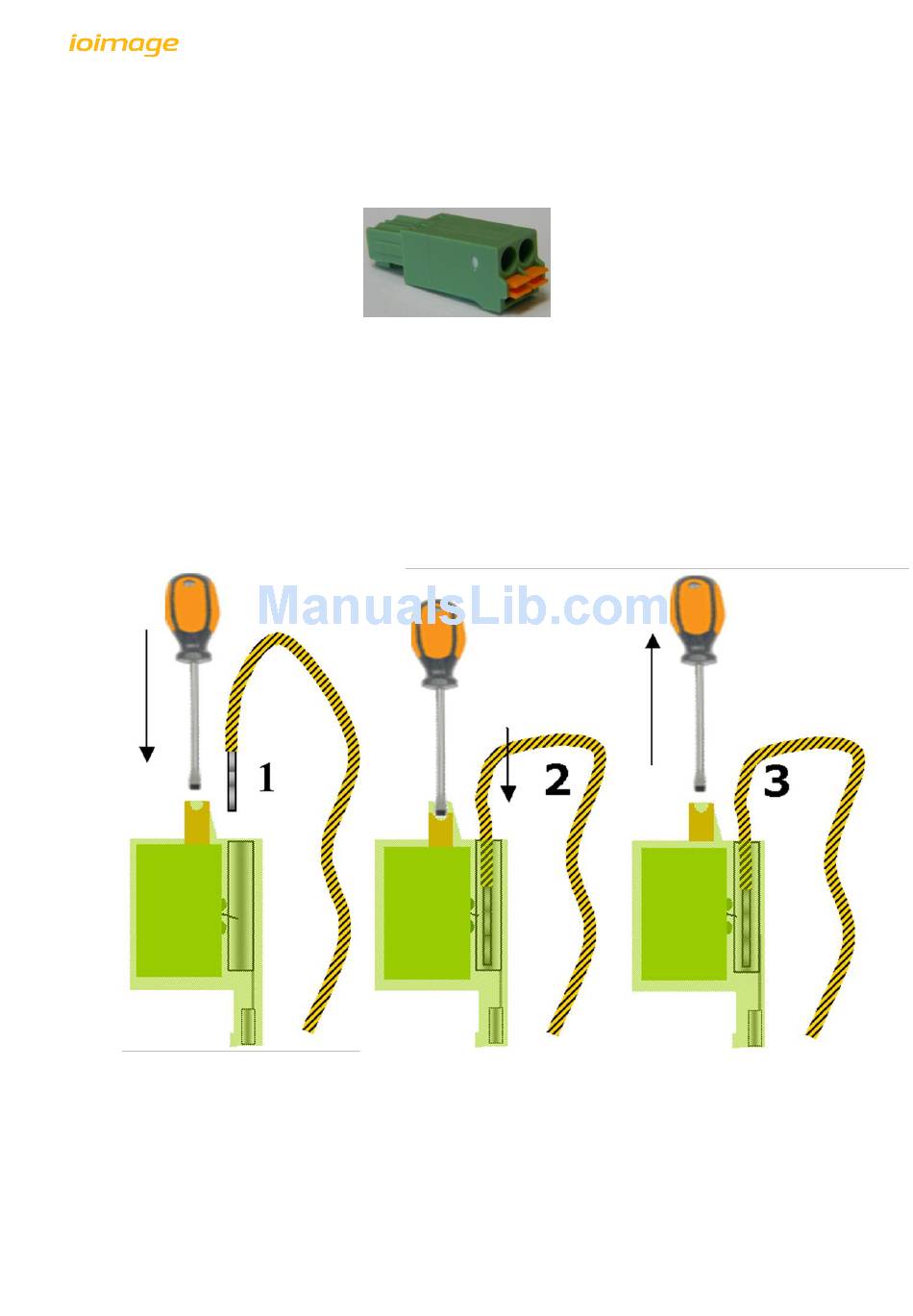

Figure 14: Spring Clamp Terminal Block

Figure 15: Connecting a Wire to a Terminal Block
