trk-101 Installation Manual
3.1.1 Assembling the Unit in a Rack Mount Panel (Optional Accessory)
Up to 10 units can be mounted on a single rack mount panel. After the units have been assembled in the
rack mount panel, the panel can be installed in a standard 19-inch rack.
To assemble units in a rack mount panel:
Remove the nut and washer from each of the two video connectors on the video connection
1.
panel of the unit.
Attach each unit to the rear side of the rack mount panel by inserting it through the holes as
2.
shown in
Figure
6

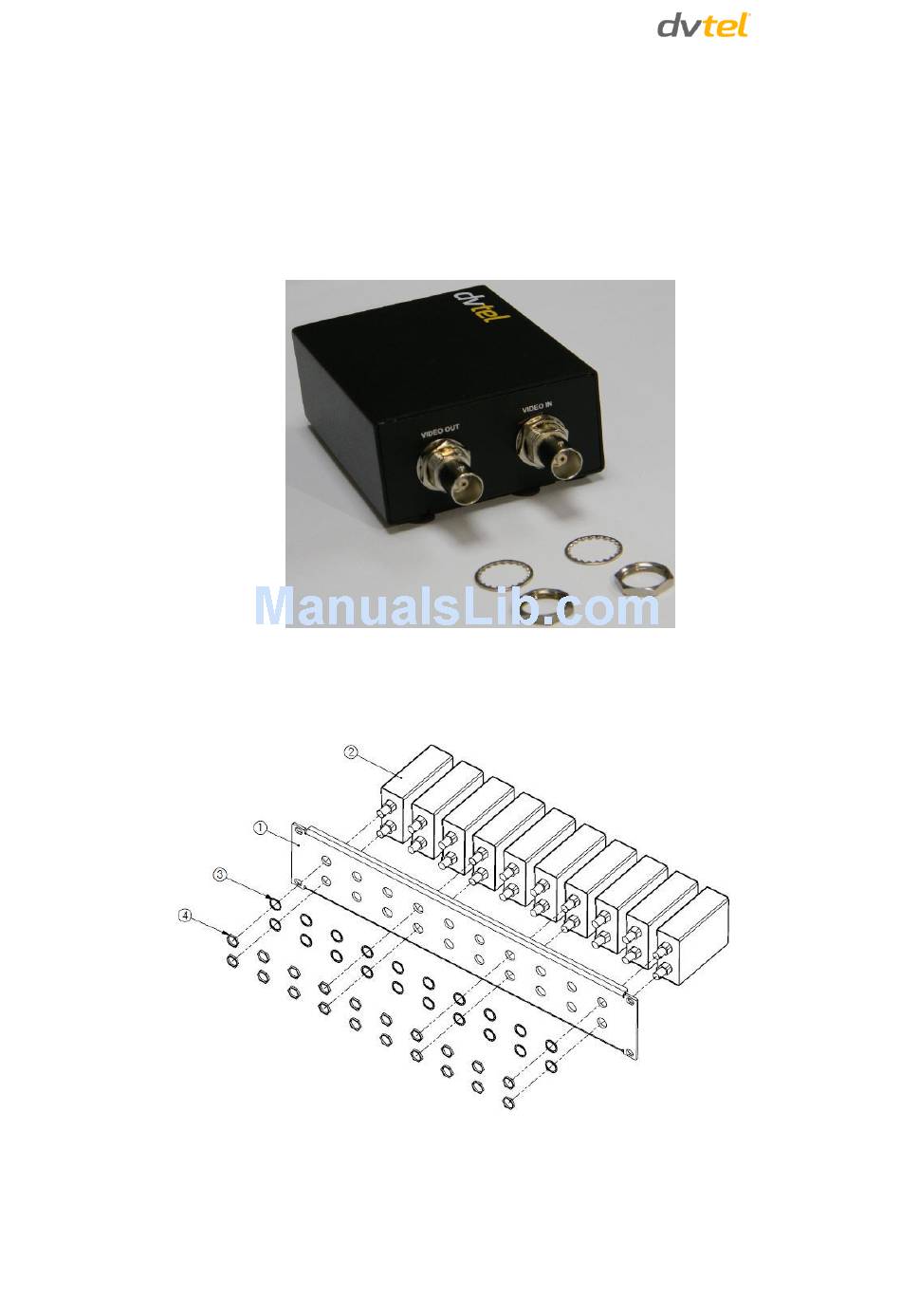

Figure 5: trk-101 with Nuts Removed
6.
Figure 6: Inserting Units into Rack Mount Panel
