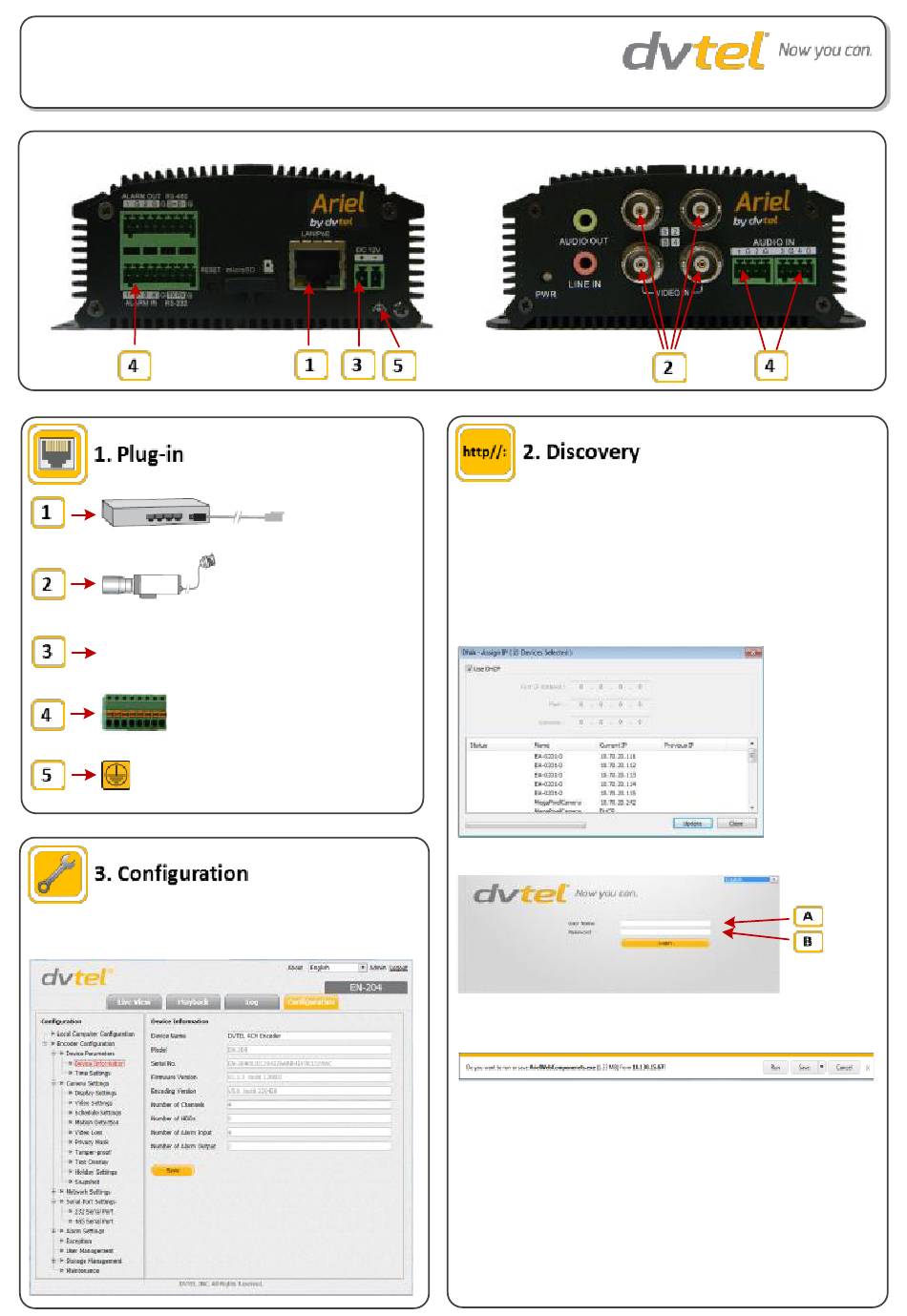

Quick Install Guide
Attach the unit to the LAN
Attach the camera/video source
Power the unit via the LAN for PoE or 12VDC power supply
Using the supplied terminal block
connectors, attach the unit to external
devices for alarms and audio in/out
Ground the unit
1. From the web interface, click the Configuration tab to configure
time, camera, network, serial port, alarm, and system settings.
EN-204 Encoder
If the encoder is managed by Horizon configured as a DHCP server, Horizon
automatically assigns the encoder an IP address.
If the encoder is managed by Latitude, you must manually enter its IP
address in the DNA utility.
2.1. To manage the encoder using Horizon or on a
DHCP-enabled network
1. Install the CD in the product package and run the DNA utility to login to
the unit. DNA automatically discovers the unit on the network.
2. Click on the unit in DNA's Discover List. The unit's Login window opens.
3. Enter the default User Name (A) and Password (B), which are case-sensitive.
4. Click Login. The EN-204 web interface opens.
5. Click the on-screen message to install the DVTEL plug-in.
6. Follow the on-screen instructions.
7. Proceed to Configuration.
2.2. To manage the encoder using Latitude or on a network
with static IP configuration
1. Follow Step 1 in section 2.1.
2. In the DNA Assign IP screen, uncheck Use DHCP, and enter the unit's IP,
Mask and Gateway IP addresses.
3. Click Update.
4. Follow Steps 2-5 in section 2.1.
= Admin
= 1234
