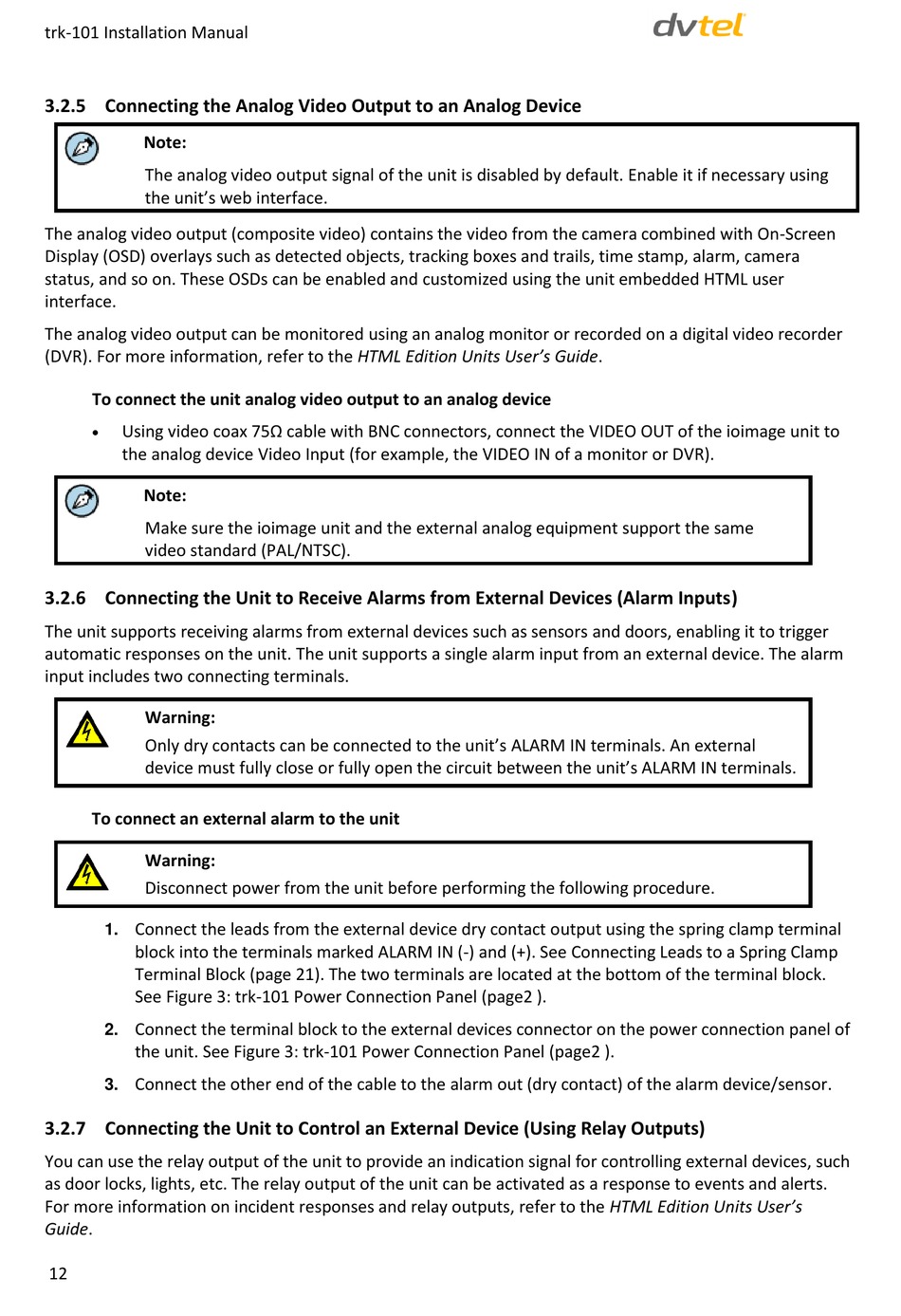

trk-101 Installation Manual
3.2.5 Connecting the Analog Video Output to an Analog Device
Note:
The analog video output signal of the unit is disabled by default. Enable it if necessary using
the unit's web interface.
The analog video output (composite video) contains the video from the camera combined with On-Screen
Display (OSD) overlays such as detected objects, tracking boxes and trails, time stamp, alarm, camera
status, and so on. These OSDs can be enabled and customized using the unit embedded HTML user
interface.
The analog video output can be monitored using an analog monitor or recorded on a digital video recorder
(DVR). For more information, refer to the HTML Edition Units User's Guide.
To connect the unit analog video output to an analog device
Using video coax 75Ω cable with BNC connectors, connect the VIDEO OUT of the ioimage unit to
the analog device Video Input (for example, the VIDEO IN of a monitor or DVR).
Note:
Make sure the ioimage unit and the external analog equipment support the same
video standard (PAL/NTSC).
3.2.6 Connecting the Unit to Receive Alarms from External Devices (Alarm Inputs)
The unit supports receiving alarms from external devices such as sensors and doors, enabling it to trigger
automatic responses on the unit. The unit supports a single alarm input from an external device. The alarm
input includes two connecting terminals.
Warning:
Only dry contacts can be connected to the unit's ALARM IN terminals. An external
device must fully close or fully open the circuit between the unit's ALARM IN terminals.
To connect an external alarm to the unit
Warning:
Disconnect power from the unit before performing the following procedure.
Connect the leads from the external device dry contact output using the spring clamp terminal
1.
block into the terminals marked ALARM IN (-) and (+). See Connecting Leads to a Spring Clamp
Terminal Block (page 21). The two terminals are located at the bottom of the terminal block.
See Figure 3: trk-101 Power Connection Panel (page2 ).
Connect the terminal block to the external devices connector on the power connection panel of
2.
the unit. See Figure 3: trk-101 Power Connection Panel (page2 ).
Connect the other end of the cable to the alarm out (dry contact) of the alarm device/sensor.
3.
3.2.7 Connecting the Unit to Control an External Device (Using Relay Outputs)
You can use the relay output of the unit to provide an indication signal for controlling external devices, such
as door locks, lights, etc. The relay output of the unit can be activated as a response to events and alerts.
For more information on incident responses and relay outputs, refer to the HTML Edition Units User's
Guide.
12
