To change the unit's IP address
Insert the CD included in the package in your computer's disk drive.
1.
Note:
The PC and the unit must be physically connected on the same subnet.
Run the dna.exe file by clicking the
2.
displayed in the window.
Select the unit by right-clicking on it.
3.
If there are devices located on a separate VLAN, click
4.
add them manually.
Select the unit by right-clicking on it and click Assign IP
5.
Assign IP dialog box opens.
icon. The DNA application opens and the device is

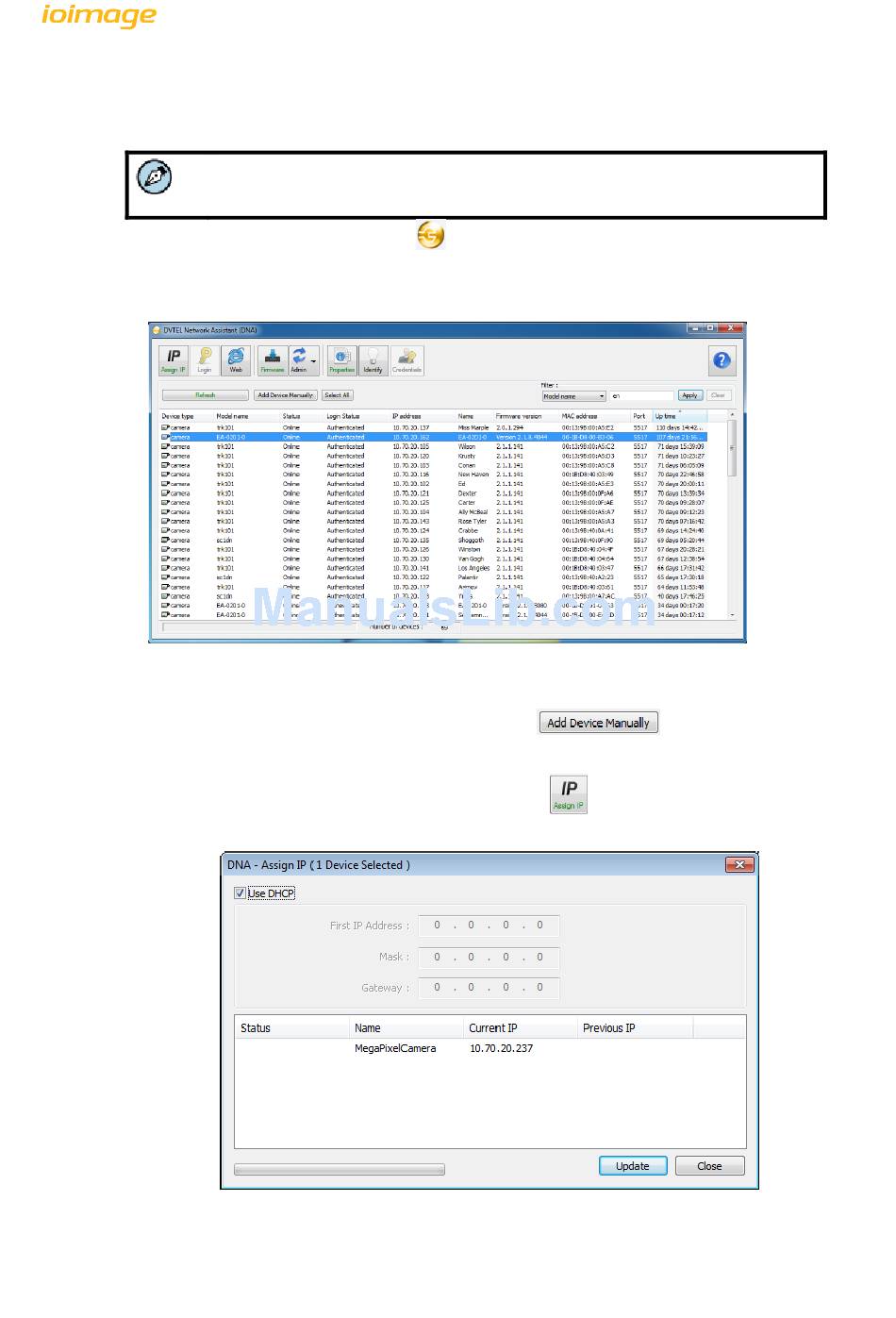

Figure 7: DNA Discovery Window

Figure 8: DNA Assign IP – Use DHCP Dialog Box
Installing and Connecting the Unit
on the DNA toolbar to
or select the Assign IP option. The
9
