3.2.4 Connecting the Video Source (Camera) to the Unit

The unit accepts Composite video (1Vp-p) from stationary analog cameras (standard, thermal, IR, and so
on). Video connections should use a 75Ω cable and should not be longer than 30 meters (98 feet).
To connect a video source to the unit
Securely connect the video cable BNC connector to the analog video output of the camera or
1.
video source.
Connect the other cable end to the VIDEO IN connection on the video connection panel of the
2.
unit. See Figure 4: trk-101 Video Connection Panel
To set the unit's video standard via its web interface
Enter the IP address of the unit in a browser. The unit's Login window opens.
1.
Login to the unit by entering your user name and password. The default user name and
2.
password are both "admin". The web interface opens.
If your computer requires ActiveX installation, install it now.
3.
From the Live View window, access the Camera Setup by clicking Setup > Camera > Streaming.
4.
The Streaming window opens.
In the Video Standard field, select PAL or NTSC.
5.
Click Apply to save the setting.
6.
Note:
If the video standard is changed, all analytic settings will be deleted.

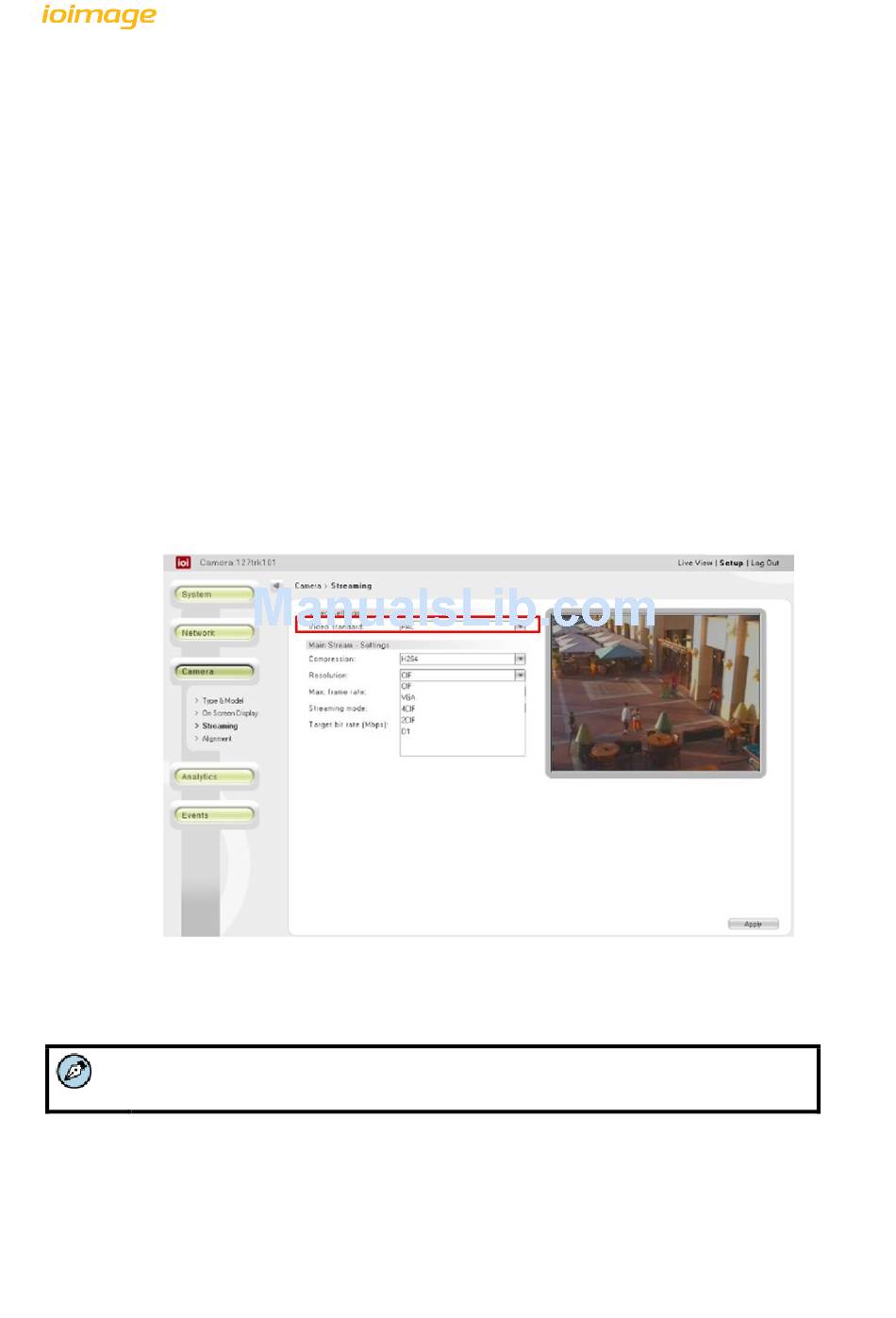

Figure 11: Web Interface Streaming Window

Installing and Connecting the Unit
(page 4).
