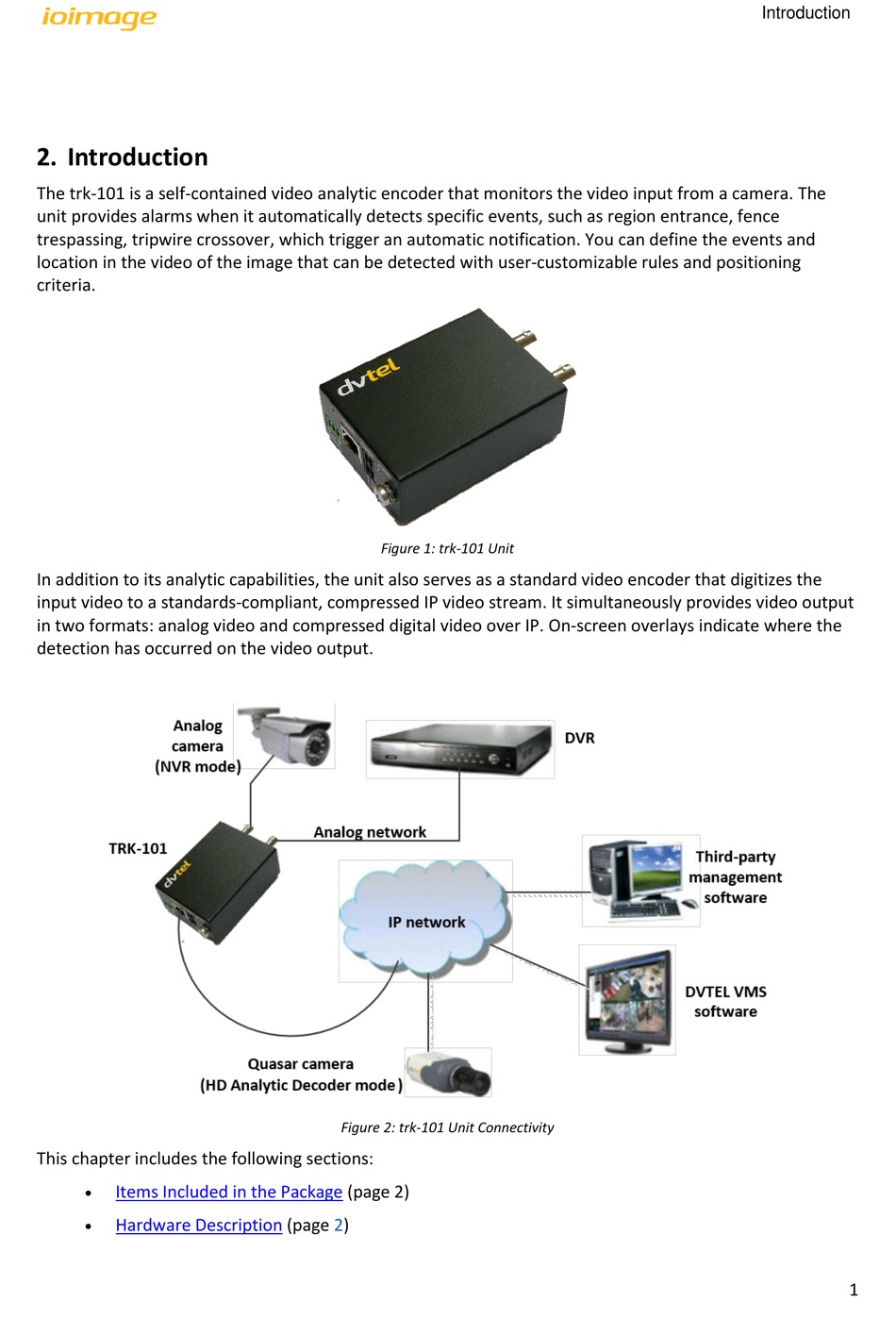

2. Introduction

The trk-101 is a self-contained video analytic encoder that monitors the video input from a camera. The
unit provides alarms when it automatically detects specific events, such as region entrance, fence
trespassing, tripwire crossover, which trigger an automatic notification. You can define the events and
location in the video of the image that can be detected with user-customizable rules and positioning
criteria.
In addition to its analytic capabilities, the unit also serves as a standard video encoder that digitizes the
input video to a standards-compliant, compressed IP video stream. It simultaneously provides video output
in two formats: analog video and compressed digital video over IP. On-screen overlays indicate where the
detection has occurred on the video output.
This chapter includes the following sections:

Items Included in the Package

Hardware Description

Figure 1: trk-101 Unit

Figure 2: trk-101 Unit Connectivity

(page 2)
(page 2)
Introduction
1
