Problem
No Power
PoE switch is not
recognized.
No Live Video
Live video is not clear.
Video color appears
incorrect.
Video flickers.
Connection to the INIT
program is not available
because of wrong ID and
password.
The WebGuard program
is not available.
Lens Type
Focal Length
Angle View
Lens Iris Control
Day/Night Filter

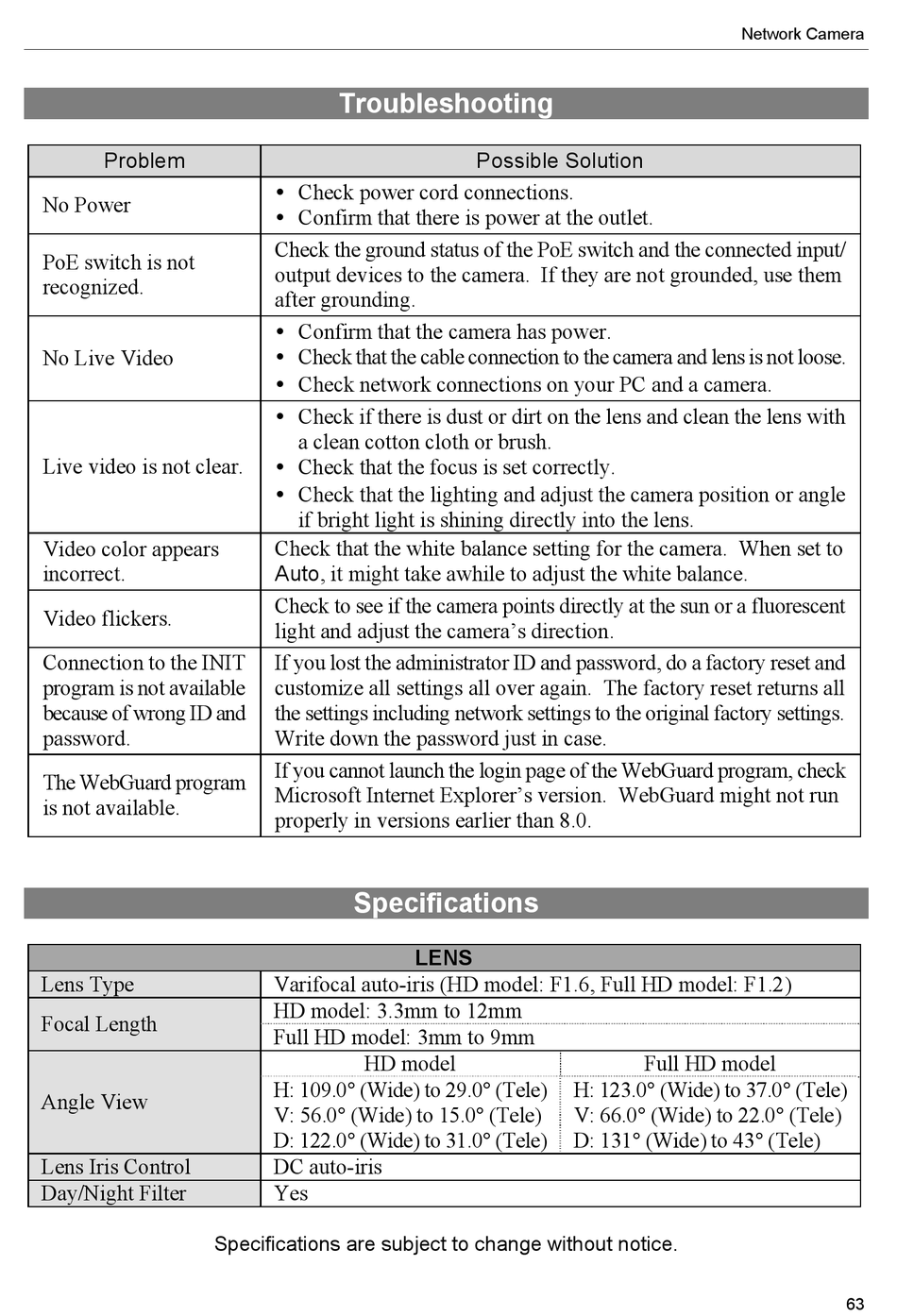

Troubleshooting

 Check power cord connections.
 Confirm that there is power at the outlet.
Check the ground status of the PoE switch and the connected input/
output devices to the camera. If they are not grounded, use them
after grounding.
 Confirm that the camera has power.
 Check that the cable connection to the camera and lens is not loose.
 Check network connections on your PC and a camera.
 Check if there is dust or dirt on the lens and clean the lens with
a clean cotton cloth or brush.
 Check that the focus is set correctly.
 Check that the lighting and adjust the camera position or angle
if bright light is shining directly into the lens.
Check that the white balance setting for the camera. When set to
Auto, it might take awhile to adjust the white balance.
Check to see if the camera points directly at the sun or a fluorescent
light and adjust the camera's direction.
If you lost the administrator ID and password, do a factory reset and
customize all settings all over again. The factory reset returns all
the settings including network settings to the original factory settings.
Write down the password just in case.
If you cannot launch the login page of the WebGuard program, check
Microsoft Internet Explorer's version. WebGuard might not run
properly in versions earlier than 8.0.

Specifications

Varifocal auto-iris (HD model: F1.6, Full HD model: F1.2)
HD model: 3.3mm to 12mm
Full HD model: 3mm to 9mm
HD model
H: 109.0° (Wide) to 29.0° (Tele)
V: 56.0° (Wide) to 15.0° (Tele)
D: 122.0° (Wide) to 31.0° (Tele)
DC auto-iris
Yes
Specifications are subject to change without notice.
Possible Solution
LENS
H: 123.0° (Wide) to 37.0° (Tele)
V: 66.0° (Wide) to 22.0° (Tele)
D: 131° (Wide) to 43° (Tele)
Network Camera
Full HD model
