Adjustment of the chimney connection
The stove is always delivered for top flue connection, but can be changed to rear flue con­
nection as follows:

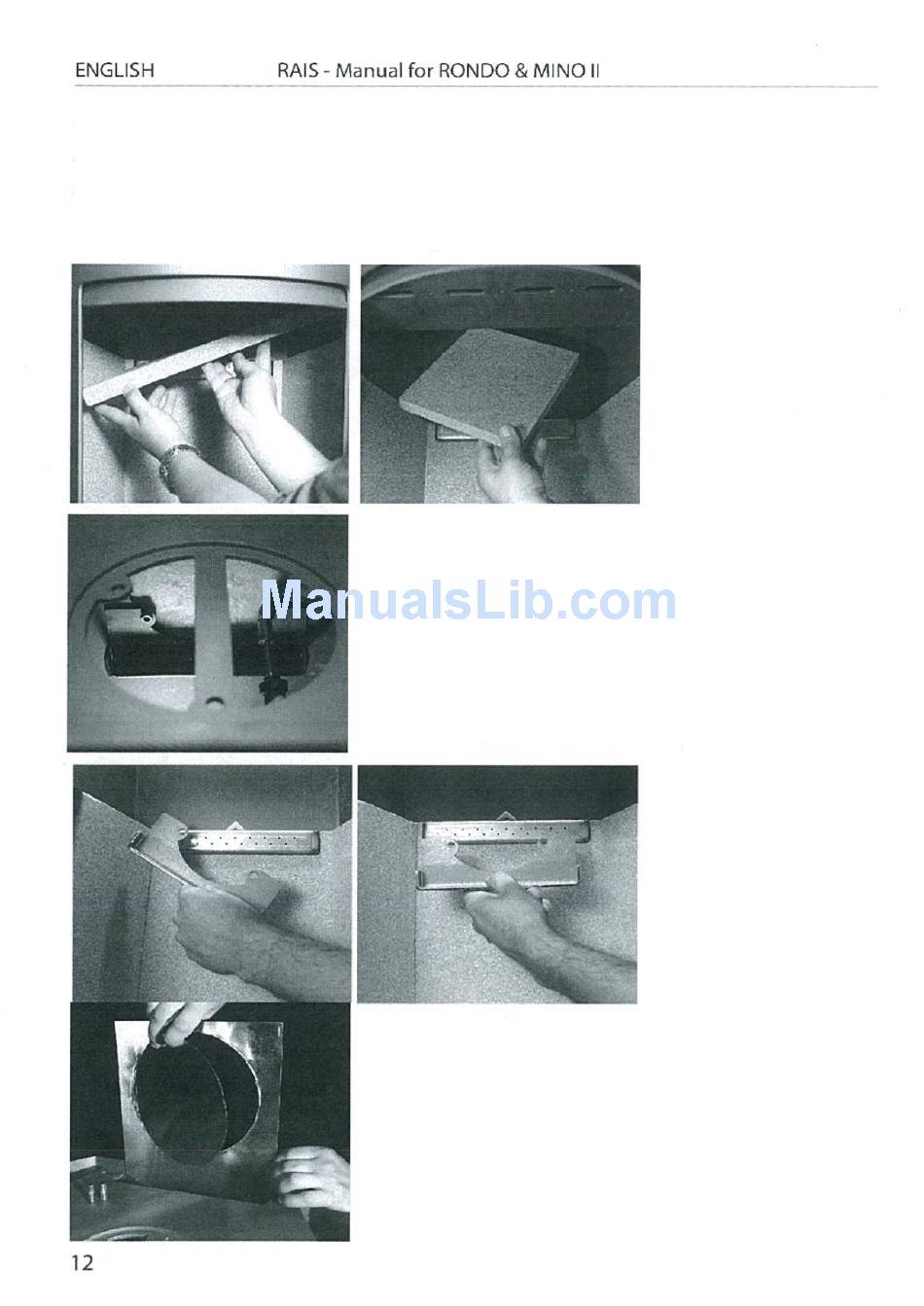

Loosen the three M6 nuts with a
Lift up the reflector plate, push out the 'knock­out'
and put the reflector plate back into place.
Remove the baffle plate
and smoke diverter ( see
cleaning and care ).
spanner
.
Make sure that the flue
diverter is fastened to the
protective cover.
