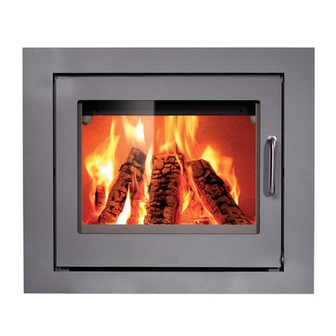

RAIS INSERT 60 User Manual
Hide thumbs Also See for INSERT 60:

Advertisement

Tested
& Listed by:
C
OMNI-Test Laboratories, Inc.
RAIS INSERT 60
USER'S MANUAL
RAIS A/S
Industrivej 20
9900 Frederikshavn
Denmark
Tel.: +45 98 47 90 33
Fax: +45 98 47 92 91
Beaverton
Oregon USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSERT 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RAIS INSERT 60

  • Page 1 RAIS INSERT 60 USER’S MANUAL RAIS A/S Industrivej 20 9900 Frederikshavn Denmark Tel.: +45 98 47 90 33 Fax: +45 98 47 92 91 Tested Beaverton & Listed by: Oregon USA OMNI-Test Laboratories, Inc.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION .........................3 Safety and Environmental Testing .................3 Features and Items Included ..................3 INSTALLATION ........................3 Precautions and Specifications..................3 Specifications.........................4 Assembly Instructions ....................5 Chimney.........................6 OPERATING INSTRUCTIONS....................7 First Fire.........................7 Building the Fire ......................8 Check for a Proper Burn ....................8 FIREWOOD .........................9 Specifications.........................9 Burning value of wood ....................9 A Few Reminders ......................9...
  • Page 3: Introduction

    Beaverton, Oregon and are listed to UL 1482 and ULC S628. They are also EPA certified. Features and Items Included Your RAIS has a built in convection system, so it creates air circulation in the room, to spread the heat faster and more evenly.
  • Page 4: Specifications

    (k of the alternate material / 0.84) x ½”. When installing the insert, the heat distribution to other rooms should be taken into consideration. The RAIS 60 Inserts have a heating capacity of approximately 1,076 ft² (100m²) based on a standard ceiling height.
  • Page 5: Assembly Instructions

    Assembly Instructions The detailed dimensions of the RAIS 60 Insert are as shown: Although the RAIS 60 Insert comes assembled, it has to be mounted into the fireplace or firebox. 1. First remove the baffle plate by lifting it up on 2.
  • Page 6: Chimney

    7. Finally, place the baffle plate back in reverse order. The baffle plate should be pushed all the way to the back of the firebox with it resting on both sides of the stones. 8. RAIS recommends that a sealer be used between the insert and the face of the opening.
  • Page 7: Operating Instructions

    Fire stops must be installed at spaces where the chimney passes through floors and/or ceilings. The RAIS 60 Insert is approved for installation in a masonry fireplace or a metal firebox (heat exchanger) within a masonry chimney (based on UL 907 listing) or for use in an approved factory-built zero-clearance fireplace (listed to UL 127).
  • Page 8: Building The Fire

    Basically, the primary air is used to start the fire, and the secondary air is used to maintain the fire. The RAIS 60 Insert stoves are equipped with an air control handle on the right of the door near the bottom. When the handle is pushed all the way up to Position 1, the primary air and secondary air are both fully open.
  • Page 9: Firewood

    For normal operation the air control handle should be set at Position 2. However, if the wood is burning too quickly, you can adjust the air control handle down. To ensure a proper and safe combustion, there should be bright and lasting flames/embers.
  • Page 10: Fuel Caution

    “freshen up” a fire in this heater. Keep all such liquids well away from the heater while in use. CARE AND MAINTENANCE Although your RAIS stove requires little day-to-day upkeep, it is important to maintain it for your safety and enjoyment. IMPORTANT:...
  • Page 11: Removing The Ashes

    Then, remove all the loose pieces of glass and replace only with a 4mm ceramic new glass panel and gasket available from an authorized RAIS dealer. Assemble the inner frame, tighten screws evenly (star formation), and put the door back on.
  • Page 12: Trouble Shooting

    Don' t use water to extinguish the fire. Warranty We offer a 5-year warranty on your RAIS stove, which covers any defect in material or workmanship. It does not cover damage from misuse or neglect. The glass, gaskets, firebrick and vermiculite stone liners are not covered.
