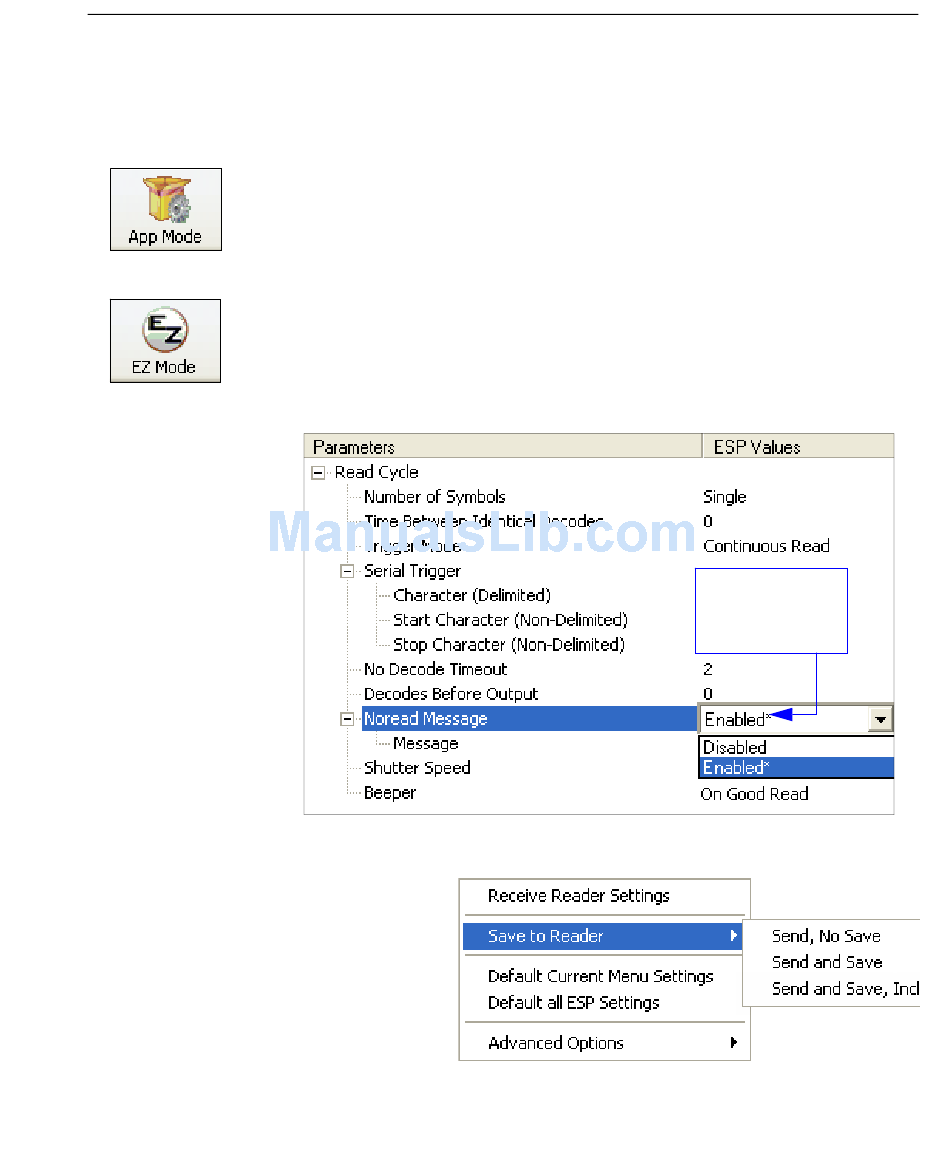

Navigating in ESP

To change reader settings, or to access the Terminal or Utilities views, click the App Mode
button.
To return to EZ Mode, click the EZ Mode button.
To make changes to configuration settings in the tree controls:
1. Left-click on the
+ to expand menu
items.
2. Double-click the
desired parameter
and single-click in
the selection box to
view options.
3. Place your cursor
in the selection
box, scroll down to
the setting you
want to change,
and single-click
the setting.
4. Left-click again on the open screen to
complete the selection.
5. Right-click on the open screen and
select Save to Reader to implement
the command in the reader. You can
send the command without saving it,
or you can send and save the command
simultaneously.
MS-2 CCD Reader User's Manual
Using ESP
X
The indicates
that the setting
is the default.
2-15
