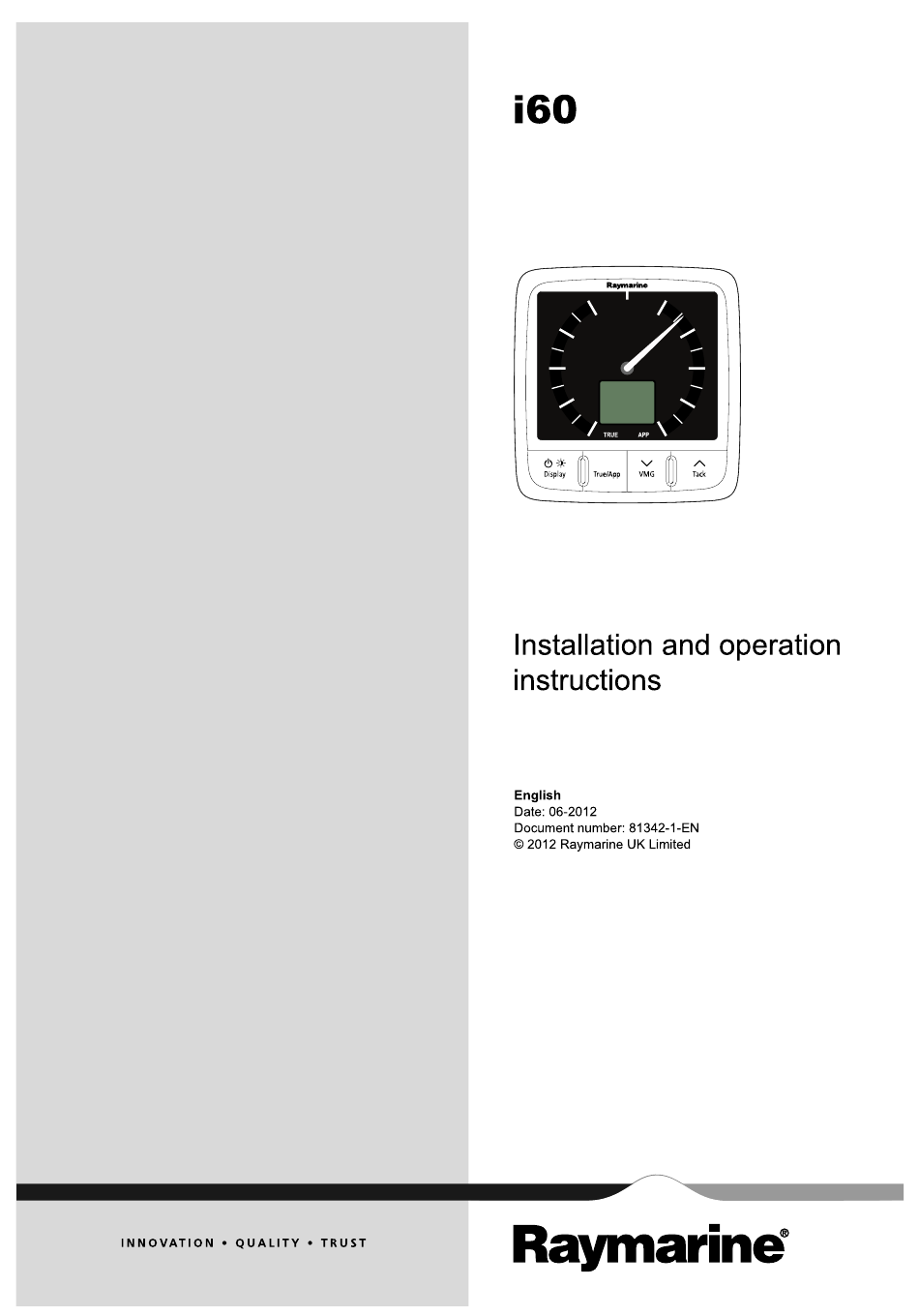

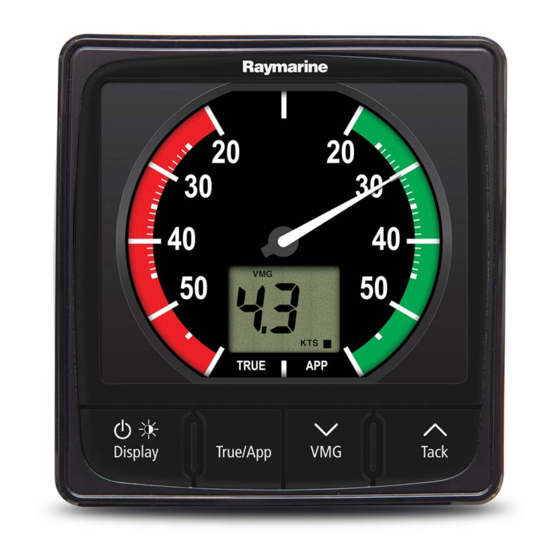

- Page 1 Display T rue/App T ack Installation and operation instructions Date: 06-2012 Document number: 81342-1-EN © 2012 Raymarine UK Limited...
- Page 3 Product handbooks The latest versions of all English and translated handbooks are available to download in PDF format from the website www.raymarine.com. Please check the website to ensure you have the latest handbooks.
-
Page 5: Table Of Contents
6.4 Illumination ............31 6.5 Calibration ............32 Chapter 7 Using your display......35 7.1 Pages ..............36 7.2 i60 Wind operation ..........36 7.3 Group illumination ..........37 Chapter 8 Using alarms ........39 8.1 Alarms..............40 Chapter 9 Maintaining your display....41 9.1 Service and maintenance ........ -
Page 7: Chapter 1 Important Information
Disclaimer Warning: High voltage Raymarine does not warrant that this product is error-free or that it is compatible with products manufactured by any person or This product contains high voltage. Adjustments entity other than Raymarine. -
Page 8: Connections To Other Equipment
Directive requires the recycling of waste electrical and electronic equipment. Whilst the WEEE Directive does not apply to some Raymarine products, we support its policy and ask you to be aware of how to dispose of this product. Warranty registration To register your Raymarine product ownership, please visit www.raymarine.com... -
Page 9: Chapter 2 Handbook Information
Chapter 2: Handbook information Chapter contents • 2.1 Handbook information on page 10 Handbook information... -
Page 10: Handbook Information
Close hauled wind The i60 Close hauled wind instrument provides an expanded indication from 20º to +60º about the bow and stern of the vessel. The i60 Close hauled wind must be used as part of a SeaTalk or SeaTalk network. -
Page 11: Chapter 3 Planning The Installation
Chapter 3: Planning the installation Chapter contents • 3.1 Installation checklist on page 12 • 3.2 System integration on page 13 • 3.3 Typical systems on page 14 • 3.4 System protocols on page 16 • 3.5 Parts supplied on page 16 •... -
Page 12: Installation Checklist
3.1 Installation checklist Installation includes the following activities: Installation Task Plan your system. Obtain all required equipment and tools. Site all equipment. Route all cables. Drill cable and mounting holes. Make all connections into equipment. Secure all equipment in place. Power on and test the system. -
Page 13: System Integration
3.2 System integration D12395-1 Item Device type Maximum Quantity Suitable Devices Connections i60 Wind, Close hauled wind As determined by the • i60 Wind • SeaTalk instrument. SeaTalk bus bandwidth • i60 Close hauled wind and power loading. SeaTalk instrument displays. -
Page 14: Typical Systems
Wind instrument Raymarine wind vane transducer Raymarine multifunction display 12 / 24 V dc power supply Raymarine course computer (providing 12 V dc power supply to the SeaTalk network.) i50 Speed instrument i50 Depth instrument Speed transducer... - Page 15 SeaTalk pilot controller SeaTalk instrument displays Fluxgate compass Rudder reference Raymarine course computer (providing 12 V dc power supply to SeaTalk network.) 12 / 24 V dc power supply Raymarine AIS transceiver Raymarine SeaTalk Man over board SeaTalk to SeaTalk...
-
Page 16: System Protocols
Devices that have a low draw can be powered from the network, although high current equipment will D12388-1 need to have a separate power connection. i60 instrument SeaTalk is a proprietary extension to NMEA 2000 and the Front bezel proven CAN bus technology. -
Page 17: Tools Required
3.6 Tools required Tools required for installation D12530-1 Pozi-drive screwdriver File 92 mm (3.62 in) hole cutter Adhesive tape Power drill Planning the installation... -
Page 19: Chapter 4 Cables And Connections
Chapter 4: Cables and connections Chapter contents • 4.1 General cabling guidance on page 20 • 4.2 Connections overview on page 20 Cables and connections... -
Page 20: General Cabling Guidance
SeaTalk network. • Ensure that any non-Raymarine cables are of the correct quality and gauge. For example, longer power cable runs may require larger wire gauges to minimize voltage drop along the run. -
Page 21: Power Connection
D12391-1 Raymarine's Instrument transducer converter (iTC-5) and an i70 SeaTalk instrument. instrument, the data can then be repeated on an i50 / i60 unit. SeaTalk instrument. 12 V dc vessel power supply. Warning: Grounding not required This product is fully insulated and does NOT require separate grounding. -
Page 22: Seatalk Ng Connection
12 V power supply. This may be 12 m (39.4 ft) SeaTalk E25051 provided from: extension cable • Raymarine SPX course computer, or 20 m (65.6 ft) SeaTalk D288 • Other separate regulated 12 V supply. extension cable... - Page 23 • Use your SeaTalk backbone and connect each NMEA2000 device on a spur, OR • connect the instrument display on a spur into an existing NMEA2000 backbone. Important: You cannot have any 2 terminated backbones connected together, unless you have an isolation gateway between the two backbones.
-
Page 25: Chapter 5 Location And Mounting
Chapter 5: Location and mounting Chapter contents • 5.1 Selecting a display location on page 26 • 5.2 Mounting on page 27 • 5.3 Front bezel on page 27 • 5.4 Selecting a transducer location on page 28 Location and mounting... -
Page 26: Selecting A Display Location
Viewing angle considerations As display contrast, color and night mode performance are all affected by the viewing angle, Raymarine recommends you temporarily power up the display when planning the installation, to enable you to best judge which location gives the optimum viewing angle. -
Page 27: Mounting
5.2 Mounting 5.3 Front bezel Pre-mounting check Removing the front bezel The product is designed to be surface mounted. Before mounting the unit, ensure you have: • Selected a suitable location. • Identified the cable connections and route that the cables will take. -
Page 28: Selecting A Transducer Location
5.4 Selecting a transducer location Wind vane transducer / rotavecta location requirements When selecting a location for your wind transducer it is important to consider a number of factors. The transducer's location must: • Allow reasonable access for installation and servicing. •... -
Page 29: Chapter 6 Getting Started
Chapter 6: Getting started Chapter contents • 6.1 Controls on page 30 • 6.2 Power on page 30 • 6.3 Data master on page 31 • 6.4 Illumination on page 31 • 6.5 Calibration on page 32 Getting started... -
Page 30: Controls
6.1 Controls 6.2 Power Powering on the unit With power to the unit turned on but the unit switched off: 1. Press and hold the Power button until the unit powers on and data is displayed (approximately 2 seconds). Note: When power to the unit is turned on the unit will switch on automatically. -
Page 31: Data Master
6.3 Data master 6.4 Illumination Where a system contains more than one unit capable of Adjusting the backlight level displaying a data type, the unit physically connected to the transducer must be set as the data master and any other units The backlighting can be adjusted using the power button. -
Page 32: Calibration
User calibration Check instrument software version. Check instrument software version. The i60 Close hauled wind is a repeat display and as such does Check the instrument status (either not require calibration, the steps below apply to the calibration of master or repeater). - Page 33 18. To exit the dealer calibration pages at any time press and hold the Power and True / App buttons simultaneously for approximately 2 seconds. Note: User calibration access, wind speed and boat show mode pages are not available on the i60 Close hauled wind. Getting started...
-
Page 35: Chapter 7 Using Your Display
Chapter 7: Using your display Chapter contents • 7.1 Pages on page 36 • 7.2 i60 Wind operation on page 36 • 7.3 Group illumination on page 37 Using your display... -
Page 36: Pages
• High and low apparent wind angle alarms. *Low apparent wind angle alarm Note: Alarms are only available on the i60 Wind instrument, when set as a master unit. No alarms are available on the i60 Tack Close hauled wind instrument. -
Page 37: Group Illumination
7.3 Group illumination Using Tack and VMG buttons Group illumination is used to synchronizes and control the backlighting level of multiple units assigned to the same group. The unit can participate in shared illumination via a SeaTalk network or group illumination via a SeaTalk network. -
Page 39: Chapter 8 Using Alarms
Chapter 8: Using alarms Chapter contents • 8.1 Alarms on page 40 Using alarms... -
Page 40: Alarms
The current threshold will start to flash. Note: Alarms are not available on the i60 Close Hauled wind. 2. Use the Tack button to increase the alarm threshold. 3. Use the VMG button to decrease the alarm threshold. -
Page 41: Chapter 9 Maintaining Your Display
Chapter 9: Maintaining your display Chapter contents • 9.1 Service and maintenance on page 42 • 9.2 Condensation on page 42 • 9.3 Routine equipment checks on page 43 • 9.4 Cleaning on page 43 • 9.5 Cleaning the display case on page 44 •... -
Page 42: Service And Maintenance
This product contains no user serviceable components. Please Certain atmospheric conditions may cause a small amount of refer all maintenance and repair to authorized Raymarine condensation to form on the unit's window. This will not damage dealers. Unauthorized repair may affect your warranty. -
Page 43: Routine Equipment Checks
9.3 Routine equipment checks 9.4 Cleaning Raymarine strongly recommends that you complete a number Best cleaning practices. of routine checks to ensure the correct and reliable operation When cleaning this product: of your equipment. • Do NOT wipe the display screen with a dry cloth, as this could Complete the following checks on a regular basis: scratch the screen coating. -
Page 44: Cleaning The Display Case
9.5 Cleaning the display case 9.6 Cleaning the display screen The display unit is a sealed unit and does not require regular A coating is applied to the display screen. This makes it water cleaning. If it is necessary to clean the unit, follow this basic repellent, and prevents glare. -
Page 45: Chapter 10 Troubleshooting
Chapter 10: Troubleshooting Chapter contents • 10.1 Troubleshooting on page 46 • 10.2 Instrument troubleshooting on page 47 • 10.3 Power up troubleshooting on page 48 • 10.4 Miscellaneous troubleshooting on page 49 • 10.5 Self-test on page 50 Troubleshooting... -
Page 46: Troubleshooting
The troubleshooting information provides possible causes and corrective action required for common problems associated with marine electronics installations. All Raymarine products are, prior to packing and shipping, subjected to comprehensive test and quality assurance programs. However, if you experience problems with the operation of your product this section will help you to diagnose and correct problems in order to restore normal operation. -
Page 47: Instrument Troubleshooting
10.2 Instrument troubleshooting Fault Cause Action Blank display. No power supply. • Check fuse / circuit breaker. • Check power supply. • Check SeaTalk / SeaTalk cabling and connector security. SeaTalk / SeaTalk information not being SeaTalk / SeaTalk cabling or connector fault. •... -
Page 48: Power Up Troubleshooting
10.3 Power up troubleshooting Problems at power up and their possible causes and solutions are described here. Problem Possible causes Possible solutions The system (or part of it) does not start Power supply problem. Check relevant fuses and breakers. Check that the power supply cable is sound and that all connections are tight and free from corrosion. -
Page 49: Miscellaneous Troubleshooting
Check that the power source is of the correct voltage and sufficient current. Software mismatch on system (upgrade Go to www.raymarine.com and click on support for the latest software required). downloads. Corrupt data / other unknown issue. Perform a factory reset. -
Page 50: Self-Test
/ or fault codes should be used when Self-test stage 3 will perform pointer offset and corrections. contacting Raymarine customer support. Pressing the Display (Power) button will rotate the pointer clockwise to align with the major graduations. -
Page 51: Chapter 11 Technical Support
Chapter 11: Technical support Chapter contents • 11.1 Raymarine customer support on page 52 • 11.2 Checking the software version on page 52 Technical support... -
Page 52: Raymarine Customer Support
11.2 Checking the software version Raymarine provides a comprehensive customer support service. Follow the steps below to identify the software version of your You can contact customer support through the Raymarine unit. website, telephone and email. If you are unable to resolve a... -
Page 53: Chapter 12 Technical Specification
Chapter 12: Technical specification Chapter contents • 12.1 Technical specification on page 54 Technical specification... -
Page 54: Technical Specification
12.1 Technical specification Nominal supply voltage 12 V dc Operating voltage range 10 V dc to 16 V dc Power consumption • < 1 W Typical (Display only) • 2.4 W Maximum (Transducer connected) Current • 45 to 65 mA Typical (Display only) •... -
Page 55: Chapter 13 Spares And Accessories
Chapter 13: Spares and accessories Chapter contents • 13.1 Wind transducers on page 56 • 13.2 Spares on page 56 • 13.3 SeaTalk cables and accessories on page 57 • 13.4 Converters on page 58 Spares and accessories... -
Page 56: Wind Transducers
13.1 Wind transducers 13.2 Spares The following wind transducers are available for the i60 range: The table below lists the spare parts available for i60 instrument displays Description Part number Notes Description Part number Note Wind vane transducer E22078 i50 / i60 / i70 front... -
Page 57: Seatalk Ng Cables And Accessories
13.3 SeaTalk cables and accessories Description Part No Notes DeviceNet adaptor A06045 Allows the connection SeaTalk cables and accessories for use with compatible cable (Female) of NMEA 2000 devices products. to a SeaTalk system. Description Part No Notes DeviceNet adaptor A06046 Allows the connection Backbone Kit... -
Page 58: Converters
13.4 Converters Part number Description E22158 SeaTalk to SeaTalk Converter... -
Page 59: Appendix A Nmea 2000 Sentences
Appendix A NMEA 2000 sentences The i60 instrument range supports the following NMEA 2000 Parameter Group Number (PGN) sentences. PG name i60 Wind Transmit i60 Wind Receive ● 59392 ISO Acknowledgement ● ISO Request 59904 ● ● 60928 ISO Address claim ●... - Page 62 www.ra ym a rin e .c o m...
