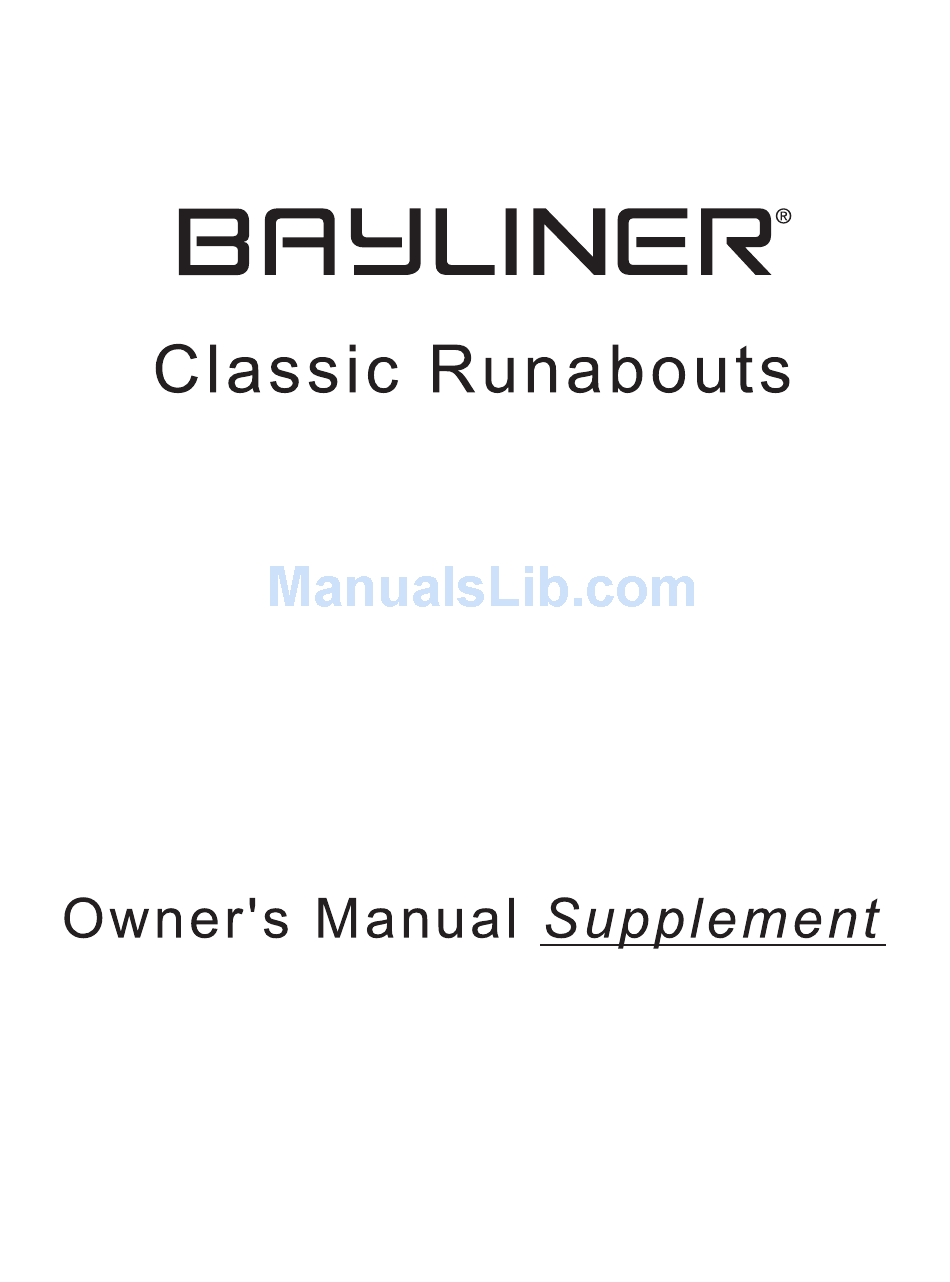

This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner.
Contents Chapter 1: Welcome Aboard! Chapter 4: Propulsion & Related Systems Dealer Service 1 Engine 29 Warranty Information 1 Bilge Blower System 29 Boating Experience 1 Fuel System 30 Fuel Fill & Vent 30 Engine & Accessory Guidelines 2 Gas Engine Fuel Filters 30 Engine &...
Page 5
Chapter 7: Deck Equipment Chapter 11: Electrical System Cleats & Bow/Stern Eyes 39 12-Volt DC System 53 Battery(s) 53 Ski-Tow Ring 39 Battery Switch (If Equipped with Two Batteries) 53 Canvas & Vinyl Tops & Enclosures 40 Battery Switch Positions 53 192 Bimini Top (If Equipped) 40 Fuses 54 192 Aft Bimini Top (If Equipped) 41...
Page 6
Hazard Boxes & Symbols The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan- gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol- low all safety instructions.
• Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer. • A copy of the Limited Warranty was included in your owner’s packet. • If you did not get a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for a copy.
Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement Engine & Accessory Guidelines NOTICE When storing your boat, please refer to your engine’s operation and maintenance manuals. NOTICE Certain modifications to your boat WILL result in cancellation of your warranty protection.
Classic Runabouts • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Qualified Maintenance WARNING! To maintain the integrity and safety of your boat, allow ONLY qualified personnel to perform maintenance on, or change, in any way, the: • Steering system • Propulsion system •...
Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement Safety Standards DANGER! FALLING and ROTATING PROPELLER HAZARD! • NEVER allow anyone to ride on parts of your boat NOT designed for such use. • Sitting on seat backs, lounging on the forward deck, bow riding, gun- wale riding or occupying the transom platform while underway is especially hazardous and WILL cause personal injury or death.
Classic Runabouts • Owner’s Manual Supplement Chapter 1: Welcome Aboard! Carbon Monoxide (CO) DANGER! • Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely dangerous. • ALL engines, generators, and fuel burning appliances produce CO as exhaust. • Prolonged exposure to low concentrations or very quick exposure to high concentrations WILL cause BRAIN DAMAGE or DEATH.
Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement Where & How CO Can Accumulate Stationary conditions that increase CO accumulations include: A. Using engine, generator, or other fuel burn- B. Mooring too close to another boat that is...
Classic Runabouts • Owner’s Manual Supplement Chapter 1: Welcome Aboard! CO Checklists Trip Checklist Make sure you know where the exhaust outlets are located on your boat. Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
Chapter 1: Welcome Aboard! Classic Runabouts • Owner’s Manual Supplement More Information For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to boat more safely, contact: United States Coast Guard National Marine Manufacturers American Boat &...
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement Component Locations 12-Volt DC Accessory Outlets - 192 (2 Total): • One is located at the helm. • One is located on the port aft wall in the cabin. 12-VOLT DC...
Page 25
Classic Runabouts • Owner’s Manual Supplement Chapter 3: Locations 12-Volt DC Accessory Outlets - 210 (2 Total): • One is located at the helm. • One is located next to the cabin entry door. 12-VOLT DC OUTLET 12-VOLT DC OUTLET 12-Volt DC Accessory Outlets - 215 (2 Total): •...
Page 26
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement 12-Volt DC Fuse Block -192 & 210: • Located behind the dash. • Access through the dash access cur- tain on the starboard aft wall in the cabin. FUSE ENTRY BLOCK DOOR 12-Volt DC Fuse Block - 194 &...
Page 27
Classic Runabouts • Owner’s Manual Supplement Chapter 3: Locations Batteries (Typical): • Located behind the port and starboard aft seat backs. BATTERY BATTERY (IF EQUIPPED) • Access by removing the aft seat backs. Battery Switch (If Equipped) (Typical): • Located behind the port aft seat back.
Page 28
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement Blower Switch - 192, 194 & 195: Located at the helm. BLOWER SWITCH Blower Switch - 210 & 215: Located at the helm. BLOWER SWITCH CO Monitor - 192: Located on the starboard aft wall of the cabin.
Page 29
Classic Runabouts • Owner’s Manual Supplement Chapter 3: Locations CO Monitor - 210: Located on the starboard aft wall of the cabin. CO MONITOR Depth Finder Transducer (If Equipped) (Typical): • Located in the forward area of the engine compartment bilge.
Page 30
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement Fuel Fill Deck Fitting (marked GAS or DIESEL) (Typical): Located on the port aft VENTED FUEL FILL DECK FITTING deck. Fuel Filter/Water Separator - 192, 194 & 195 (Diesel Engine Only): •...
Page 31
Classic Runabouts • Owner’s Manual Supplement Chapter 3: Locations Livewell Aerator Control Valve - 194 Only: • Located inside the livewell. LIVEWELL AERATOR CONTROL VALVE • Access by removing the seat cushion and lifting the livewell hatch. Livewell Pump Switch - 194 Only: Located at the helm.
Page 32
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement Navigation Lights - 192: • Red and green running lights are ALL-ROUND LIGHT located on the forward deck. • White all-round light is located on RUNNING LIGHTS the aft deck. Navigation Lights - 194: •...
Page 33
Classic Runabouts • Owner’s Manual Supplement Chapter 3: Locations Navigation Lights - 210: • Red and green running lights are ALL-ROUND LIGHT located on the forward deck. • White all-round light is located on the RUNNING LIGHTS aft deck. Navigation Lights - 215: •...
Page 34
Chapter 3: Locations Classic Runabouts • Owner’s Manual Supplement Trolling Motor - 194 Only: Located on the forward deck. TROLLING MOTOR Trolling Motor 12-Volt DC Circuit Breaker - 12-VOLT DC 194 Only: CIRCUIT BREAKER • Located under the starboard aft jump seat.
Classic Runabouts • Owner’s Manual Supplement Chapter 4: Propulsion & Related Systems Engine Read the engine operation and maintenance manuals before starting or working on the engine. Bilge Blower System WARNING! FIRE and EXPLOSION HAZARD! Fuel vapors can explode! BEFORE starting the engine: 1.
Chapter 4: Propulsion & Related Systems Classic Runabouts • Owner’s Manual Supplement Fuel System WARNING! FIRE, EXPLOSION, and OPEN FLAME HAZARD! • It is very important that the fuel system be inspected thoroughly the first time it is filled and at each subsequent filling.
Classic Runabouts • Owner’s Manual Supplement Chapter 4: Propulsion & Related Systems Fuel Filter/Water Separator (Diesel Engine Only) NOTICE • The frequency of water draining or element replacement is controlled by the contamination level in the fuel. • Inspect the collection bowls for water daily.
Chapter 4: Propulsion & Related Systems Classic Runabouts • Owner’s Manual Supplement Quick Oil Drain System The quick oil drain hose assembly was attached to the engine oil pan at the factory. However, some minor assembly is still needed before you can use this system.
Classic Runabouts • Owner’s Manual Supplement Chapter 5: Controls & Gauges Steering • Your boat features a power-assisted* rack-and-pinion steering system. • For information about the power-assist fluid reservoir, refer to the engine operation and maintenance manual. • Boat steering is not self-centering.
Chapter 5: Controls & Gauges Classic Runabouts • Owner’s Manual Supplement Gauges Cleaning the Gauges CAUTION PRODUCT or PROPERTY DAMAGE HAZARD! • Use only mild soap and water to clean the gauge lenses and bezels. • Use of other cleaners, including common window cleaning solutions, may cause the lenses to crack.
Classic Runabouts • Owner’s Manual Supplement Chapter 6: Plumbing Bilge Pump NOTICE Discharge of oil, oil waste, or fuel into navigable waters is prohibited by law. Violators are sub- ject to legal action by the local authorities. • Your boat has a bilge pump for pumping water out of the bilge.
Chapter 6: Plumbing Classic Runabouts • Owner’s Manual Supplement Autofloat Switch • The autofloat switch turns the bilge pump On when water rises above a preset level. • Test the autofloat switch often. Autofloat switch testing: AUTOFLOAT SWITCH 1. Lift the float switch test button to TESTING turn On the bilge pump.
Classic Runabouts • Owner’s Manual Supplement Chapter 6: Plumbing Livewell System (194 Only) WARNING! FLOODING and SWAMPING HAZARD! • NEVER leave your boat unattended while the livewell system is running. • Any leak or break in this system may allow large amounts of water to flood the bilge, which could swamp the battery(s), and even sink your boat.
Chapter 6: Plumbing Classic Runabouts • Owner’s Manual Supplement Portable Toilet NOTICE Check with local authorities for regulations regarding the legal use of marine head systems. Read the manufacturer’s operating instructions before using the portable toilet. PORTABLE TOILET...
Classic Runabouts • Owner’s Manual Supplement Chapter 7: Deck Equipment Cleats & Bow/Stern Eyes WARNING! PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD! NEVER lift your boat using the bow/stern eyes or the cleats. Read the section on towing in the Sport Boat Owner’s Manual before: •...
Chapter 7: Deck Equipment Classic Runabouts • Owner’s Manual Supplement Canvas & Vinyl Tops & Enclosures CAUTION PRODUCT or PROPERTY DAMAGE HAZARD! Take down and securely stow ALL canvas & vinyl BEFORE your boat is transported by road. NOTICE BEFORE cleaning and/or stowing your canvas or vinyl, read the sections later in this chapter, Canvas Care and Vinyl Care.
Classic Runabouts • Owner’s Manual Supplement Chapter 7: Deck Equipment 192 Aft Bimini Top (If Equipped) 1. Zip four to six inches of the aft bimini top to the forward bimini top. 2. Insert the end eyes of the main bow...
Chapter 7: Deck Equipment Classic Runabouts • Owner’s Manual Supplement 210 & 215 Convertible Top Slide the windshield hinges of the main bow (A) over the pre-drilled holes (B) in the windshield frames and insert the securing pins. SECURING PIN...
Classic Runabouts • Owner’s Manual Supplement Chapter 7: Deck Equipment Vinyl Curtains (If Equipped) NOTICE When taking down the vinyl curtains, avoid socket/stud problems by using the following method to unfasten the curtain sockets from the studs on the bimini top: •...
Page 50
Chapter 7: Deck Equipment Classic Runabouts • Owner’s Manual Supplement 210 & 215 Side Curtains 1. Insert the side curtain’s stud into the convertible top’s socket. 2. Snap the side curtain to the convertible top and the windshield frame. 210 & 215 Aft Curtain 1.
Classic Runabouts • Owner’s Manual Supplement Chapter 7: Deck Equipment Canvas Care (see also ‘Clear Vinyl Care’ on next page) • After each use, especially in saltwater, rinse the canvas with cold freshwater. • Before stowing, let the canvas air-dry completely.
Chapter 7: Deck Equipment Classic Runabouts • Owner’s Manual Supplement Clear Vinyl Care CAUTION • NEVER store the clear vinyl pieces wet, as this will cause a milky film to develop. • NEVER fold or crease the clear vinyl pieces as cracking will occur.
Classic Runabouts • Owner’s Manual Supplement Chapter 8: Entertainment Systems Audio Equipment NOTICE AM radio reception may be impaired when the engine is running. Read the manufacturer’s instruction manual before using the audio equipment.
Classic Runabouts • Owner’s Manual Supplement Chapter 9: Convertible Seats, Beds, & Tables Sleeper Seats • The sleeper seats can be adjusted fore and aft in the upright, operating position. • The seat bottoms adjust into backrests when the seats are in the lounge position.
Classic Runabouts • Owner’s Manual Supplement Chapter 10: Lights Care & Maintenance All of the lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1. There may be a blown fuse - replace the fuse.
Classic Runabouts • Owner’s Manual Supplement Chapter 11: Electrical System DANGER! EXTREME FIRE, SHOCK and EXPLOSION HAZARD! • To minimize the risks of fire and explosion, NEVER install knife switches or other arcing devices in the fuel compartment. • NEVER substitute automotive parts for marine parts. Marine electrical, ignition, and fuel system parts were designed and manufactured to comply with rules and regulations that minimize risks of fire and explosion.
Classic Runabouts • Owner’s Manual Supplement Chapter 11: Electrical System 12-Volt DC System Battery(s) • The battery(s) supplies electricity for lights, 12-volt accessories and engine starting. • The Electrical section of Chapter 8 in the Sport Boat Owner’s Manual provides battery care and maintenance instructions.
Classic Runabouts • Owner’s Manual Supplement Chapter 11: Electrical System 12-Volt DC Accessory Outlets CAUTION Do NOT use the 12-volt DC accessory outlet with a cigarette or cigar lighter. High tempera- tures may melt the outlet. • The outlets can be used with any 12-volt device which draws 10-amps or less.
Classic Runabouts • Owner’s Manual Supplement Important Records Selling Dealer Key Numbers Name Of Dealership Ignition Other Address Electronics Phone/FAX/E-mail Manufacturer Model Name/Number Sales Manager Serial Number Service Manager Manufacturer Model Name/Number Engine Serial Number Manufacturer Model Name/Number Engine Serial Number...
Classic Runabouts • Owner’s Manual Supplement Float Plan Before going boating, fill out a copy of this float plan (or similar) and leave it with a reliable person whom you can depend on to contact the Coast Guard or other rescue organization, if you do not return as scheduled.
Page 71
Classic Runabouts • Owner’s Manual Supplement Chapter 11: Electrical System Survival Equipment Trip Expectations Marine Radio (Yes/No) Type Frequencies Departing From Number of PFDs Flares (Yes/No) Mirror (Yes/No) Departure Date Departure Time Smoke Signals (Yes/No) Flashlight (Yes/No) Food (Yes/No) Stopover 1...
