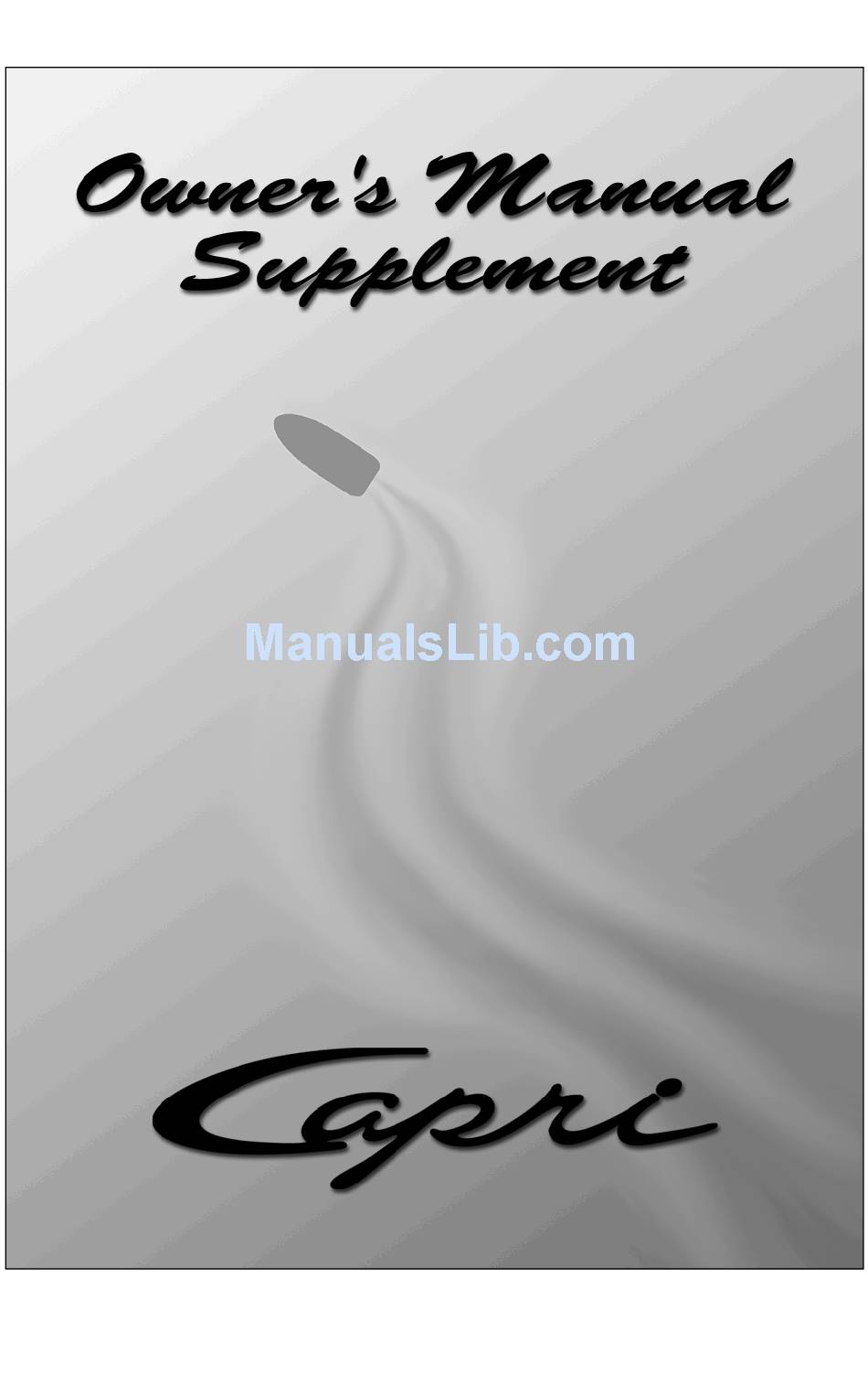

Bayliner Capri Owner's Manual Supplement
Bayliner Capri Owner's Manual Supplement

Bayliner Capri Owner's Manual Supplement

Capri series boat

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Capri and is the answer not in the manual?

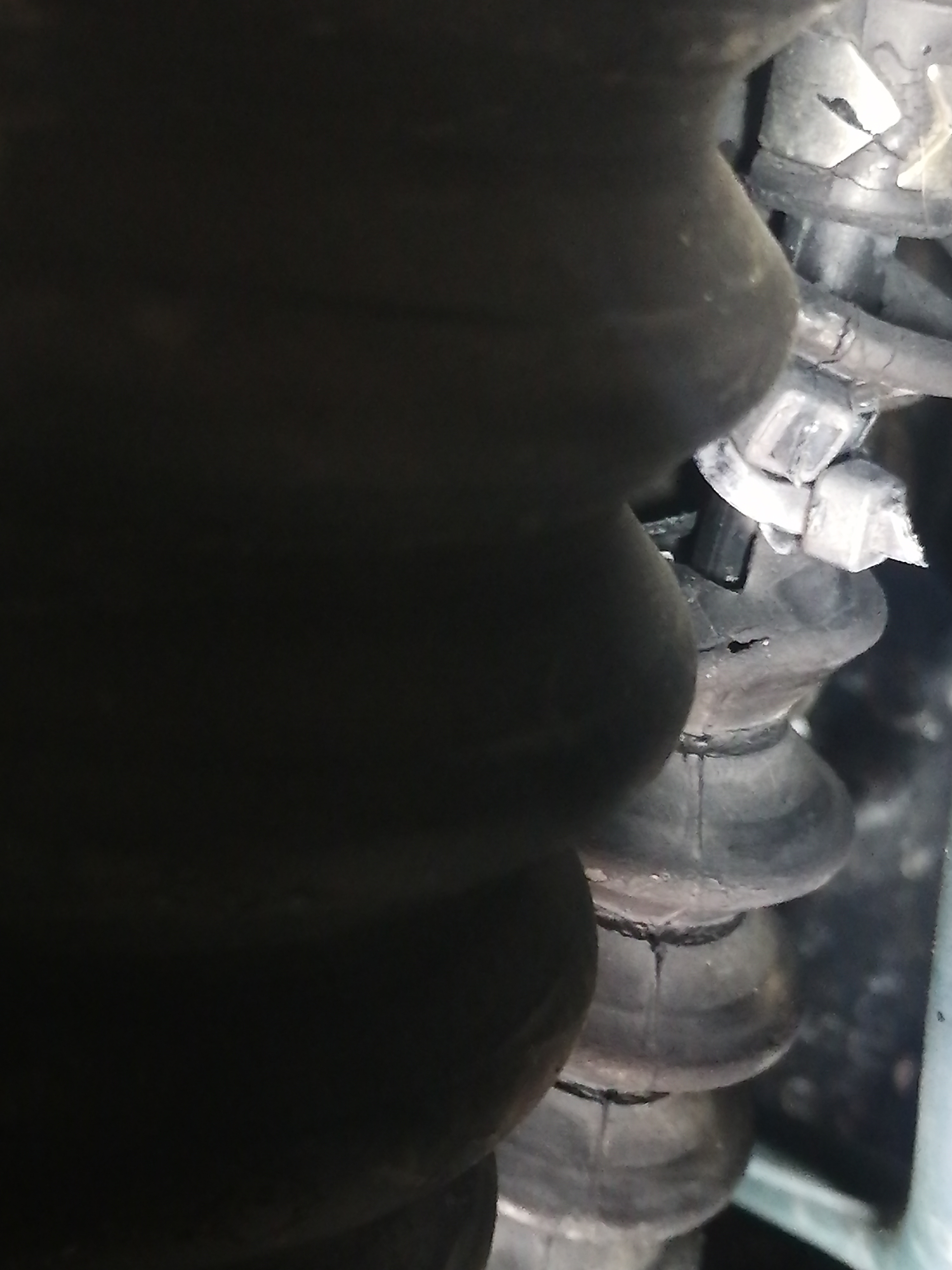

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bayliner Capri

  • Page 2: Hull Identification Number

    This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner.
  • Page 4: Table Of Contents

    Contents Chapter 1: About This Manual Chapter 3: Components & Systems Dealer Service 13 Electrical System (12-Volt DC) Boating Experience 14 Fuses and/or Circuit Breakers Engine & Accessories Guidelines 15 Wiring Diagrams 15 Outboard Models Safety Standards 16 Outboard Fishing Models Qualified Maintenance 17 Stern Drive Models 18 Stern Drive Fishing Models...
  • Page 5 32 Sleeper Seat Adjustment 32 Fore-aft positions: 32 Lounge positions: 32 Pedestal Seats 33 Canvas Top Installation 34 Canvas Stowage Appendix A: Limited Warranty 35 What Is Not Covered 35 Other Limitations 35 Your Obligation...
  • Page 7: Chapter 1: About This Manual

    Please be advised that certain modifications to your boat can result in cancellation of your warranty protection. Always check with your dealer before making any modifications to your boat. Capri Runabouts • Owner’s Manual Supplement...
  • Page 8: Safety Standards

    Special Care For Moored Boats If moored in saltwater or fresh water, your boat will collect marine growth on its Capri Runabouts • Owner’s Manual Supplement...
  • Page 9: Hazard Warning Symbols

    N O T I C E This message box calls attention to installation, operation or maintenance information, which is important to proper operation but is not hazard related. Capri Runabouts • Owner’s Manual Supplement...
  • Page 10: Chapter 2: Product Specifications

    Beam Length Clearance Draft Capacity (gal) 16’ 1’’ 3’ 5’’ 7’ 2’ 8’’ 1750 (CH) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal. 17’ 7’’ 3’ 10’’ 6’ 11’’ 2’ 8’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 11: 1800 (Cj)

    Length Clearance Draft Capacity (gal) 17’ 7’’ 3’ 10’’ 6’ 11’’ 2’ 8’’ 1802 (CC) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 17’ 7’’ 4’ 5’’ 6’ 11’’ 2’ 8’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 12: 1804 (Pc)

    Length Clearance Draft Capacity (gal) 17’ 7’’ 3’ 10’’ 6’ 11’’ 2’ 8’’ 1850 (BB) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 18’ 4’’ 3’ 10’’ 7’ 5’’ 2’ 10’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 13: 1850 (Cs)

    Length Clearance Draft Capacity (gal) 18’ 4’’ 3’ 10’’ 7’ 5’’ 2’ 10’’ 1950 (CL) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 18’ 8’’ 3’ 1’’ 7’ 6’’ 2’ 10’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 14: 1952 (Cn)

    Length Clearance Draft Capacity (gal) 18’ 8’’ 3’ 8’’ 7’ 6’’ 2’ 10’’ 1954 (CW) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 18’ 8’’ 3’ 1’’ 7’ 6’’ 2’ 10’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 15: 2050 (Cx)

    Length Clearance Draft Capacity (gal) 20’ 6’’ 3’ 9’’ 7’ 8’’ 2’ 10’’ 2050 (CZ) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 20’ 6’’ 3’ 9’’ 7’ 8’’ 2’ 10’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 16: 2052 (Ck)

    Length Clearance Draft Capacity (gal) 20’ 6’’ 4’ 4’’ 7’ 8’’ 2’ 10’’ 2150 (CT) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 20’ 8’’ 3’ 10’’ 4’ 3’’ 2’ 11’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 17: 2152 (Cy)

    Length Clearance Draft Capacity (gal) 20’ 8’’ 4’ 6’’ 7’ 11’’ 3’ 0’’ 2350 (BC) Overall Bridge Maximum Fuel Tank Beam Length Clearance Draft Capacity (gal) 23’ 10’’ 5’ 2’’ 8’ 4’’ 3’ 1’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 18: 2350 (Bd)

    23’ 9’’ 4’ 8’’ 8’ 6’’ 3’ 0’’ 2352 (BF) Optional Overall Bridge Maximum Fuel Tank Beam Water Tank Length Clearance Draft Capacity (gal) Capacity (gal) 23’ 10’’ 5’ 2’’ 8’ 4’’ 3’ 1’’ Capri Runabouts • Owner’s Manual Supplement...
  • Page 19: Chapter 3: Components & Systems

    • The battery charging systems (alternators and battery charger) are designed to charge conventional lead-acid batteries. Before installing gel- cell (or other new technology) batteries, read and follow the battery charger’s operating instructions. Capri Runabouts • Owner’s Manual Supplement...
  • Page 20: Fuses And/Or Circuit Breakers

    BLOWER (I.O. BOATS HORN, BROWN/ 5 amp 10 amp ONLY), YELLOW WIRE GREEN WIRE NAVIGATION/ANCHOR INSTRUMENTS, 10 amp 10 amp LIGHTS, BLUE WIRE BLUE WIRE BILGE PUMP, 5 amp 10 amp STEREO, RED WIRE BROWN WIRE Capri Runabouts • Owner’s Manual Supplement...
  • Page 21: Wiring Diagrams

    Chapter 3: Components & Systems Wiring Diagrams Outboard Models NOT USED NOT USED TRIM/TRAILER SWITCH (3) Capri Runabouts • Owner’s Manual Supplement...
  • Page 22: Outboard Fishing Models

    Chapter 3: Components & Systems Outboard Fishing Models Capri Runabouts • Owner’s Manual Supplement...
  • Page 23: Stern Drive Models

    Chapter 3: Components & Systems Stern Drive Models Capri Runabouts • Owner’s Manual Supplement...
  • Page 24: Stern Drive Fishing Models

    Chapter 3: Components & Systems Stern Drive Fishing Models Capri Runabouts • Owner’s Manual Supplement...
  • Page 25: Controls

    • Avoid the storage of gear where it would block navigation lights from view. Compass Your boat may come equipped with a compass. Carefully read and follow the man- ufacturer’s calibration and operating instructions provided in the owner’s packet. Capri Runabouts • Owner’s Manual Supplement...
  • Page 26: Depth Finder

    FLOODING AND SWAMPING HAZARD - Never anchor by the stern alone-- there is less freeboard and flooding or swamping is more likely to occur. When using only one anchor, secure the anchor line to the bow cleat or bow eye. Capri Runabouts • Owner’s Manual Supplement...
  • Page 27: Ski Pylon

    DRAIN TYPICAL BILGE LIVE WELL DRAIN COOLER DRAIN PUMP DRAIN ON SOME MODELS (ON PORT SIDE) SINK DRAIN LOCATIONS (PORT SIDE) ON SOME MODELS (OPTION) TYPICAL TRANSOM TRANSOM LADDER STERN EYE GARBOARD (TYPICAL) DRAIN Capri Runabouts • Owner’s Manual Supplement...
  • Page 28: Fuel System

    Owner’s Manual must be followed. C A U T I O N ! Avoid the storage or handling of gear near the fuel lines, fittings and tank. Capri Runabouts • Owner’s Manual Supplement...
  • Page 29: Bilge Blower

    If you smell any fuel, DO NOT start the engine. If the engine is already running, immediately shut off the engine and all electri- cal accessories. Investigate immediately. DO NOT obstruct or modify the venti- lation system. Capri Runabouts • Owner’s Manual Supplement...
  • Page 30: Live Well System

    THRU-HULL to drain completely. STAND PIPE STAND PIPE DRAIN, ATTACHED DRAIN, REMOVED N O T I C E The live well pump should be shut off while underway at planing speeds. Capri Runabouts • Owner’s Manual Supplement...
  • Page 31: Bilge Pump

    To remove the power cartridge: Lift the tab while rotating the fins counter clockwise and lift out the power cartridge (Fig. 1). Clear the housing of debris. FIG. 1 Capri Runabouts • Owner’s Manual Supplement...
  • Page 32 ON POSITION (UP) OFF POSITION (DOWN) N O T I C E Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Violators are subject to legal action by the local authorities. Capri Runabouts • Owner’s Manual Supplement...
  • Page 33: Fresh Water System

    TYPICAL FRESH WATER SYSTEM COMPONENTS TO TRANSOM SHOWER ON AFT DECK WATER PUMP SINK WATER TANK DRAIN HOSE TO SINK FAUCET FAUCET WATER PUMP SWITCH & LABEL Capri Runabouts • Owner’s Manual Supplement...
  • Page 34: Marine Head With Pump Out

    DASH Portable Toilet PORTABLE TOILET STORAGE LOCATION (TYPICAL) Your boat may feature a portable toilet. Read and follow the manufacturer’s operat- V-BERTH ing instructions supplied in your owner’s packet before using your portable toilet. Capri Runabouts • Owner’s Manual Supplement...
  • Page 35: Alcohol Stove

    TOP. PROXIMITY TO THE ALWAYS INSERT THE STOVE OVERHEAD IS A FIRE HAZARD IN THE SLIDE OUT STOVE CORRECT LOCATION OF OPERATION BOARD BEFORE THE STOVE DURING USE AND DURING USE STOVE STORAGE AREA Capri Runabouts • Owner’s Manual Supplement...
  • Page 36: Aft Jump Seat Conversion

    Aft Jump Seat Conversion 1850BB, 1850CS, 2050CX and 2052CK The following is the procedure for converting the jump seats into a sunlounge for the Capri 1850CS, 2050CX and 2052CK models: Remove the port jump seat PORT JUMP SEAT STBD JUMP SEAT (Fig.
  • Page 37: 1750Ch, 1950Cl,1952Cn, 1954Cw, 2150Ct And 2152Cy

    Chapter 3: Components & Systems 1750CH, 1950CL,1952CN, 1954CW, 2150CT and 2152CY. The following is the procedure for converting the jump seats into a sunlounge for the Capri 1750CH, 1950CL, 1952CN, 1954CW, 2150CT and 2152CY. Step - 1: Remove the jump seats (A) by sliding them forward.
  • Page 38: Sleeper Seat Adjustment

    Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding or occupying the transom platform or the aft sunlounge cushions while under- way is especially hazardous and WILL cause personal injury or death. Capri Runabouts • Owner’s Manual Supplement...
  • Page 39: Canvas Top Installation

    The top can then be adjusted as in steps 3 and 4 to bring the lower row of snaps on the canvas in line with the row on the boat. Like the top, the additional can- vas pieces are in proper adjustment when they are smooth and taut. Capri Runabouts • Owner’s Manual Supplement...
  • Page 40: Canvas Stowage

    Chapter 3: Components & Systems Canvas Stowage CANVAS STOWAGE (TYPICAL VIEW) Your boat may feature venti- lated stowage space for the can- vas top under either the canvas stowage cover or the aft sun- lounge pad. MOTOR BOX Capri Runabouts • Owner’s Manual Supplement...
  • Page 41: Appendix A: Limited Warranty

    ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED TO THE DURATION OF ONE YEAR. Neither Bayliner nor the selling dealer shall have any responsibility for loss of use of the boat, loss of time, inconvenience, commercial loss or consequential damages.
