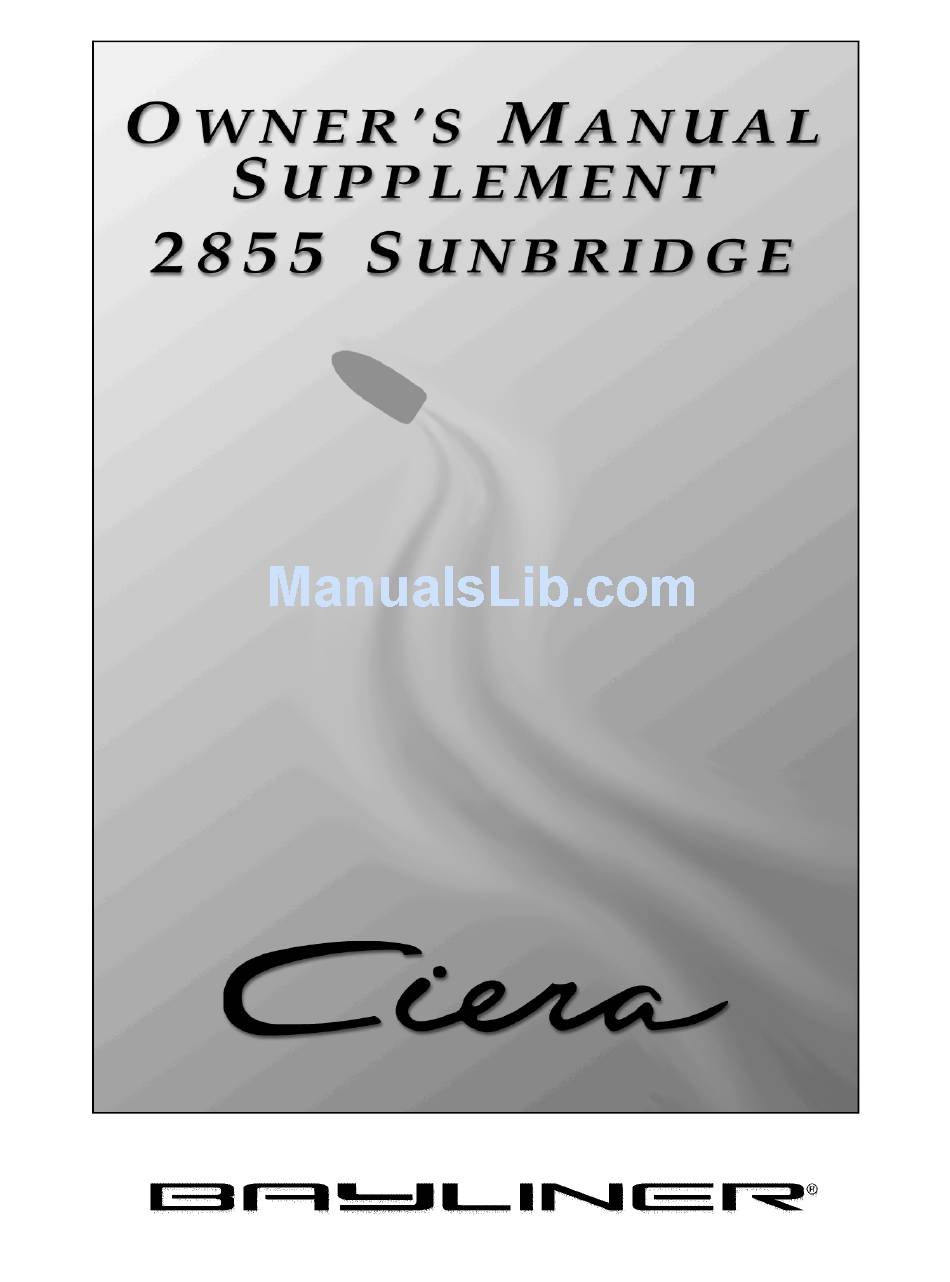

Bayliner 2855 Sunbridge Owner's Manual
Bayliner 2855 Sunbridge Owner's Manual

Bayliner 2855 Sunbridge Owner's Manual

Ciera
Table of Contents

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2855 Sunbridge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bayliner 2855 Sunbridge

  • Page 2: Hull Identification Number

    Bayliner. This document is to be returned upon...
  • Page 3 To keep our respected status as the number one boat builder in the world, Bayliner has instituted an ongoing Total Customer Satisfaction Program.
  • Page 4: Table Of Contents

    CONTENTS CHAPTER 1: WELCOME ABOARD! Bilge Blower Trim Tabs Dealer Service Bilge Pumps Boating Experience 16 Autofloat Switches Engine/Accessories Guidelines Freshwater System (LX models only) Qualified Maintenance 17 Water Heater Special Care For Moored Boats 18 Transom Shower Safety Standards Sink &...
  • Page 7: Chapter 1: Welcome Aboard

    Chapter 1: Welcome Aboard! Chapter 1: Welcome Aboard! This owner’s manual supplement provides specific information about your boat that is not covered in the owner’s manual. Please study the owner’s manual and this supplement carefully, paying particular attention to the Limited Warranty.
  • Page 8: Special Care For Moored Boats

    Chapter 1: Welcome Aboard! and other people to the danger of bodily injury or accidental death. We recommend that you follow the instructions provided in the owner’s manual this owner's manual supplement, the engine owner’s manual and all accessory instruction sheets/manuals included in your boat’s owner’s packet. WARNING! To maintain the integrity and safety of your boat, only qualified personnel should perform maintenance on, or in any way modify: The steering system, propulsion system, engine control...
  • Page 9: Hazard Boxes & Symbols

    Chapter 1: Welcome Aboard! H a z a r d B o x es & S y m b o l s The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dangerous situations which could lead to either personal injury or product damage. We urge you to read these warnings carefully and follow all safety recommendations.
  • Page 10: Chapter 2: Features/Systems

    Chapter 2: Features/Systems Chapter 2: Features/Systems D i m e n si o n s a n d Ta nk C a p a ci ti e s Draft Overall Bridge Fuel Capacity Freshwater Waste Holding Tank Beam Length Clearance (gal) Capacity (gal) Capacity (gal)
  • Page 11: Deck Hardware And Accessories

    Chapter 2: Features/Systems De c k Ha r d w ar e an d Ac c es s o r ie s FOREDECK HARDWARE AND ACCESSORIES FWD. CLEAT WINCH SWITCH FWD. ROPE ANCHOR CHOCK WINDLASS DECK CLEAT (TYPICAL) ANCHOR NAVIGATIONAL WINDSHIELD ROLLER LIGHTS (TYPICAL)
  • Page 12 Chapter 2: Features/Systems H e l m L a y o u t VIEW OF HELM LOOKING FORWARD SHIFTER LOCATED ON OUTBOARD SIDE OF HELM FWD. HELM INSTRUMENT PANEL DEPTH SOUNDER GAUGE TACHOMETER VOLTMETER SPEEDOMETER TEMP. FUEL GAUGE GAUGE 12 VOLT VHF RADIO TRIM TABS ADAPTER...
  • Page 13: Cockpit Hardware And Accessories

    Chapter 2: Features/Systems Cockpit Hardware and Accessories VIEW OF AFT DECK AFT DECK SEAT VIEW OF PORT COCKPIT LOOKING FORWARD REMOVABLE STBD. TABLE CABIN ENTRY DOOR ENGINE HATCH PORT LOUNGE VIEW OF AFT STARBOARD COCKPIT SEAT ACCESS TO FUEL FILL AND WASTE PUMP OUT HOSES REMOVABLE COURTESY...
  • Page 14: Windshield Wiper

    Chapter 2: Features/Systems Wi n d sh i e ld W ip e r • The windshield wiper control switch is located at the helm. • Periodically, the wiper blade will need to be replaced using 18” blade refills. To improve visibility; keep your windshield clean and regularly apply a good quality anti-rain solution to the exterior panes and an anti-fog solution to the interior panes.
  • Page 15: 12 Volt Dc System

    Chapter 2: Features/Systems 1 2 Vo lt D C S y st e m Fuses and Circuit Breakers POSITION "1" POSITION "BOTH" ACTIVATES ACTIVATES BOTH The engine is protected by a large cir- BATTERY "1" BATTERIES cuit breaker located on the engine. The accessories are protected by cir- cuit breakers on the battery switch AFT DECK...
  • Page 16: Shore Power

    Chapter 2: Features/Systems Battery Charger Your boat is equipped with a battery charger. We recommend that you thoroughly read and understand the battery charger manual before using the charger. • The battery charger will charge the boat’s batteries whenever the boat is plugged into 120 volt shore power. •...
  • Page 17 Chapter 2: Features/Systems CAUTION! FIRE, SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD! • NEVER connect dockside power to your boat outside North America unless you have pur- chased the international electrical conversion option. • The simultaneous use of several AC components can result in an overloaded circuit. It may be necessary to turn off one or more accessories in order to use another accessory.
  • Page 18: Navigation & Communication Equipment

    Chapter 2: Features/Systems N a v ig a t io n & C o m m u n i ca t io n E q u ip m e n t The owner’s packet contains operation manuals for all navigation &...
  • Page 19: Lighting

    Chapter 2: Features/Systems L ig h t in g Navigation and Interior Lights We strongly recommend that you understand navigation light section of the owner’s manual. The navigation and inte- rior lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1.
  • Page 20: Propulsion

    Chapter 2: Features/Systems P r o p u ls i o n Engine The owner’s packet contains detailed engine operation and maintenance manuals. Be sure to read and understand these manuals before operating or performing maintenance to the engine. F u e l S ys t e m FUEL FILL LOCATION Fuel Fill and Vent: The fuel fill is located on the starboard...
  • Page 21: Bilge Blower

    Chapter 2: Features/Systems Bilge Blower BILGE BLOWER • The bilge blower removes fumes from the engine SYSTEM compartment and draws fresh air into the compart- ENGINE ment through the deck vents. COMPARTMENT • To ensure fresh air circulation, operate the bilge blower for at least four minutes before starting the STBD engine, during starting, and while operating the boat...
  • Page 22: Bilge Pumps

    Chapter 2: Features/Systems B i l g e P u m p s AFT BILGE PUMP LOCATION FWD. BILGE PUMP LOCATION Your boat is equipped with two impeller-type bilge pumps. FWD. The bilge pumps are automatically controlled by float switches (see "Autofloat Switches" on the next page). The bilge pumps can also be controlled by switches on the dash.
  • Page 23: Freshwater System (Lx Models Only)

    Chapter 2: Features/Systems F r es h w a te r S ys t e m (LX models only VIEW OF GALLEY Your boat is equipped with a pressure-demand freshwater (potable) system. These pressure type (demand) systems operate when the water pump switch (located below the galley sink, see photograph on the GALLEY right.) is in the ON position.
  • Page 24: Transom Shower

    Chapter 2: Features/Systems WARNING! HOT HAZARD! Water heated by the water heater can reach temperatures high enough to scald the skin. CAUTION! WATER HEATER DAMAGE HAZARDS! • DO NOT energize the AC water heater electrical circuit until the heater is completely filled with water.
  • Page 25: Raw Water System

    Chapter 2: Features/Systems Ra w Wa t e r S y s te m Seacocks TYPICAL RAW WATER INTAKE SEACOCK COMPONENTS Seacocks are valves which are typically used to manage the intake of raw water through the hull below the water line (raw water intake seacocks). Seacocks may SEACOCK º...
  • Page 26: Marine Head With Holding Tank

    Chapter 2: Features/Systems Marine Head with Holding Tank HEAD PICKUP LOCATED MARINE HEAD SYSTEM BELOW MIDDLE ENTRY STEP Your boat comes equipped with a marine head (toilet) and waste holding tank system. Be sure MARINE to read the manufacturer’s operation and mainte- HEAD nance manual (included in your boat’s owner’s HOSE TO...
  • Page 27: Air Conditioning System (Option Available On Lx Models Only)

    Chapter 2: Features/Systems A i r C on d i t io n in g S y s te m (O p t io n Ava i la b le o n L X M o de l s O n ly ) Your boat may be equipped with an optional air conditioning system.
  • Page 28: Canvas Top Installation

    Chapter 2: Features/Systems C a n v as To p In s t al la t io n 1. Slide the swivel ends (A) of the main bow (B) over the side windshield frames (C) and insert the pins (D). 2.
  • Page 29: Chapter 3: Electrical Routings

    Chapter 3: Electrical Routings Chapter 3: Electrical Routings H u l l Wir e H a r n e ss R o u ti n g s TO TRIM BONDING TAB PUMP BUSS BAR TO ENGINE (OPTIONAL) HARNESS A/C UNIT WATER PUMP GROUND...
  • Page 30: Deck Wire Harness Routings

    Chapter 3: Electrical Routings De c k Wi r e H ar n e s s Ro u t in g s FORWARD SECTION OF DECK WIRE HARNESS TO TRANSOM TO DASH OVERHEAD LIGHT STEP LIGHT TO WIPER TO LIGHT COMPASS SWITCH OVERHEAD...
  • Page 31: Battery Cable Routings

    Chapter 3: Electrical Routings Ba t te r y C ab l e R ou t i n gs POSITIVE BATTERY CABLE ROUTINGS TO BATTERY SWITCH IN TRANSOM STORAGE JUMPER CABLE TO STARTER SOLENOID POSITIVE ON ENGINE CABLES BATTERIES PORT NEGATIVE BATTERY CABLE ROUTINGS GROUND NEGATIVE CABLES...
  • Page 32: Chapter 4: Wiring Schematics

    Chapter 4: Wiring Schematics Chapter 4: Wiring Schematics NOTICE • Wiring diagrams show optional equipment not installed on all models. • Some boats may come equipped with silver (-) and copper (+) colored speaker wires or red/ black (-) and red/white (+) port speaker wire colors; green/black (-) and green/white (+) star- board speaker wire colors.
  • Page 33: Dual Dockside

    Chapter 4: Wiring Schematics Du a l Do c k si d e • Ciera 2855 Cruiser Owner’s Manual Supplement...
  • Page 34: Gas Engine Electrical System

    Chapter 4: Wiring Schematics G as E n g in e E le c tr i c al S y s t em • Ciera 2855 Cruiser Owner’s Manual Supplement...
  • Page 35: Diesel Engine Electrical System

    Chapter 4: Wiring Schematics Di es e l E n g i ne E le c t r ic a l S y st e m • Ciera 2855 Cruiser Owner’s Manual Supplement...
  • Page 36: Limited Warranty

    LIMITED WARRANTY AND ALLOW US AN OPPORTUNITY TO RESOLVE THE MATTER. We require that you return your boat, at your expense, to your selling dealer or, if necessary, to the Bayliner factory. You will be responsible for all transportation, haulouts and other expenses incurred in returning the boat for warranty service.
  • Page 37 Owner’s Notes...
  • Page 38 Owner’s Notes...
  • Page 40 Part Number 1693511 Bayliner • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571...

This manual is also suitable for:

Ciera 2855 sunbridge
