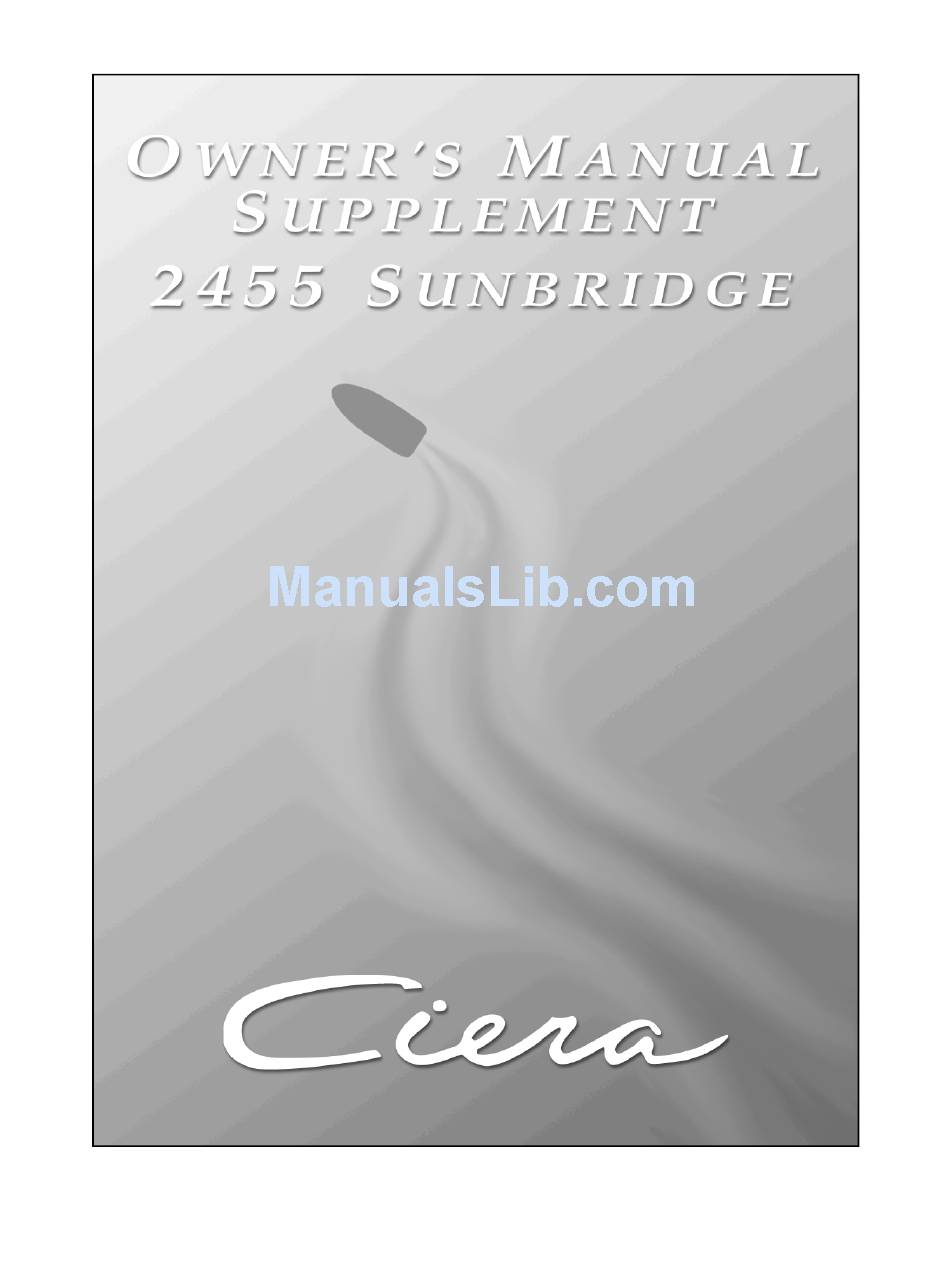

Summary of Contents for Bayliner Ciera 2455 Sunbridge

  • Page 2: Engine Serial Number

    Bayliner. This document is to be returned upon...
  • Page 4: Table Of Contents

    CONTENTS Chapter 1: Welcome Aboard! Propulsion 14 Engine Dealer Service Fuel System Boating Experience 14 Fuel Fill and Vent 14 Fuel Filters Engine/Accessories Guidelines 14 Anti-siphon Valve Qualified Maintenance Bilge Blower Special Care For Moored Boats 15 Trim Tabs Safety Standards Bilge Pumps 17 Autofloat Switches Hazard Boxes &...
  • Page 7: Chapter 1: Welcome Aboard

    Chapter 1: Welcome Aboard! Chapter 1: Welcome Aboard! This owner’s manual supplement provides specific information about your boat that is not covered in the owner’s manual. Please study the owner’s manual and this supplement carefully, paying particular attention to the Limited Warranty in this supplement.
  • Page 8: Special Care For Moored Boats

    Chapter 1: Welcome Aboard! S p e c ia l Ca r e F o r Mo o r e d B o a ts If moored in saltwater or fresh water, your boat will collect marine growth on its hull bottom. This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.
  • Page 9: Hazard Boxes & Symbols

    Chapter 1: Welcome Aboard! H a z a r d B o x es & S y m b o l s The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dangerous situations which could lead to either personal injury or product damage. We urge you to read these warnings carefully and follow all safety recommendations.
  • Page 10: Chapter 2: Features & Systems

    Chapter 2: Features & Systems Chapter 2: Features & Systems D i m e n si o n s a n d Ta nk C a p a ci ti e s Draft Overall Bridge Fuel Capacity Freshwater Waste holding Tank Beam Length Clearance...
  • Page 11: Hull Exterior Hardware & Drains

    Chapter 2: Features & Systems H u l l E x t e r i o r H a r d w a r e & D r a in s FUEL TANK, FRESH WATER AIR COND. AIR COND. TANK & HOLDING TANK VENTS DRAIN OVERBOARD STARBOARD HULLSIDE...
  • Page 12: Deck Hardware

    Chapter 2: Features & Systems De c k H ar d w a r e VENTILATION LOUVERS FOR ENGINE COMPARTMENT FUEL TANK FILL FITTING WATER TANK FILL FITTING WASTE PUMP-OUT FITTING PUMP OUT LOCATIONS ANCHOR ROLLER BOW CLEAT ROPE CHOCK (TYPICAL) VIEW OF FOREDECK SIDELIGHTS...
  • Page 13 Chapter 2: Features & Systems C o ck p it L ay o u t VOLTMETER TEMPERATURE OIL PRESSURE GAUGE GAUGE GAUGE TACHOMETER SPEEDOMETER COMPASS 12 VOLT ADAPTER COCKPIT LIGHTS ANCHOR LIGHTS FUEL GAUGE TRIM TAB GAUGE DEPTH FINDER (LX MODELS) TRIM TAB FWD &...
  • Page 14: Windshield Wiper

    Chapter 2: Features & Systems Windshield Wiper • The windshield wiper control switch is located at the helm. • Periodically, the wiper blade will need to be replaced using 18” blade refills. • To improve visibility; keep your windshield clean and regularly apply a good quality anti-rain solution to the exterior panes and an anti-fog solution to the interior panes.
  • Page 15: 12 Volt Dc System

    Chapter 2: Features & Systems 1 2 Vo lt D C S y st e m ENGINE VOLTMETER COMPARTMENT Fuses and Circuit Breakers BATTERIES The engine is protected by a large circuit breaker located on the engine. The accesso- ries are protected by circuit breakers on the battery switch panel and by the accessory circuit breakers located below the steering wheel.
  • Page 16: Battery Charger

    Chapter 2: Features & Systems Battery Charger (LX models only) BATTERY CHARGER Your boat may be equipped with a battery charger. We recommend that you thor- oughly read and understand the battery charger manual before using the charger. • The battery charger will charge the boat’s batteries whenever the boat is BATTERIES plugged into 120 volt shore power.
  • Page 17 Chapter 2: Features & Systems CAUTION! FIRE, SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD! • NEVER connect dockside power to your boat outside North America unless you have pur- chased the international electrical conversion option. • The simultaneous use of several AC components can result in an overloaded circuit. It may be necessary to turn off one or more accessories in order to use another accessory.
  • Page 18: Audio Equipment

    Chapter 2: Features & Systems A u d i o E q u i p m e nt The audio equipment installed on your boat has separate manuals (included in your boat’s owner’s packet) that explains its operating procedures in detail. NOTICE AM radio reception may be impaired in areas where reception is limited or anytime the engine is running.
  • Page 19: Lighting

    Chapter 2: Features & Systems L ig h t in g Navigation and Interior Lights We strongly recommend that you understand navigation light section of the owner’s manual. The navigation and inte- rior lights installed on your boat are of top quality, but you should be aware that failure may periodically occur for a variety of reasons: 1.
  • Page 20: Propulsion

    Chapter 2: Features & Systems P r o p u ls i o n Engine The owner’s packet contains detailed engine operation and maintenance manuals. Be sure to read and understand these manuals before operating or performing maintenance to the engine. F u e l S ys t e m Fuel Fill and Vent The fuel fill is located on the starboard aft deck.
  • Page 21: Bilge Blower

    Chapter 2: Features & Systems Bilge Blower BILGE BLOWER TRANSOM • The bilge blower removes fumes SYSTEM STBD FUEL TANK from the engine compartment and draws fresh air into the com- partment through the deck vents. • To ensure fresh air circulation, ENGINE COMPARTMENT operate the bilge blower for at...
  • Page 22: Bilge Pumps

    Chapter 2: Features & Systems B i l g e P u m p s FWD BILGE PUMP LOCATION Your boat is equipped with two impeller- type bilge pumps. They are controlled by a AFT BILGE PUMP LOCATION switch on the dash panel, which should be activated whenever water begins to accu- mulate in the bilge.
  • Page 23: Autofloat Switches

    Chapter 2: Features & Systems Autofloat Switches Automatic bilge pumps use electromagnetic float (autofloat) switches to automatically activate the pump whenever water accumulates above a preset level in the bilge. One autofloat switch is mounted next to the bilge pump it acti- vates, and is wired directly to the battery so it will normally function even when the boat is completely shut down and left unattended.
  • Page 24: Water Heater (Lx Models Only)

    Chapter 2: Features & Systems HEAD FRESHWATER DETAIL VIEW WATER TANK VENT FRESH WATER WATER HOSE TANK TANK VENT WATER TANK FILL GALLEY TO DECK FITTING PORT HOT WATER SYSTEM DET A IL VIEW TO GALLEY & HEAD WATER HEATER DRAIN HOSE HOT WATER...
  • Page 25: Raw Water System

    Chapter 2: Features & Systems Ra w Wa t e r S y s te m Seacocks TYPICAL RAW WATER INTAKE SEACOCK COMPONENTS Seacocks are valves which are typically used to manage the intake of raw water through the hull below the water line (raw water intake seacocks). Seacocks SEACOCK º...
  • Page 26: Marine Head With Holding Tank (Lx Models Only)

    Chapter 2: Features & Systems Marine Head with Holding Tank MACERATOR SYSTEM (OPTION) (LX Models Only) Your boat may come equipped with a marine head and holding tank. FWD. Be sure to follow the manufacturer’s operating instructions included in the boat’s owner’s packet. Seawater is used to flush waste from the toilet into the holding tank.
  • Page 27: Air Conditioning System (Option)

    Chapter 2: Features & Systems A i r C on d i t io n in g S y s te m (O p t io n ) (Option available on LX Models Only) Your boat may be equipped with an optional air conditioning system. Please refer to the air conditioner manual for detailed operating instructions.
  • Page 28: Warning Label Locations

    Chapter 2: Features & Systems Air Conditioning Water Pickup Routing FWD. HOSE TO AIR CONDITIONING UNIT AIR CONDITIONING SEA STRAINER AIR CONDITIONING WATER PUMP STBD. HULLSIDE FUEL TANK AIR CONDITIONING SEACOCK Wa r n in g L ab e l L o c at i on s FOREDECK WARNING OIL DISCHARGE LABEL (ON UNDERSIDE OF HATCH)
  • Page 29: Canvas Top Installation

    Chapter 2: Features & Systems C a n v as To p In s ta l la t io n 1. Slide the swivel ends (A) of the main bow (B) over the side windshield frames (C) and insert the pins (D). 2.
  • Page 30: Chapter 3: Electrical Routings

    Chapter 3: Electrical Routings Chapter 3: Electrical Routings AFT HULL ELECTRICAL HARNESS TO GALLEY TO NEGATIVE POSTS ON BATTERIES FIRE BOTTLE (EUROPEAN OPTION) TO DECK BILGE PUMP FUEL SENDER TO BATTERY SWITCH IN STBD. COCKPIT STORAGE LOCKER WATER PUMP HARNESS STARTING POINT DEPTH SOUNDER...
  • Page 31 Chapter 3: Electrical Routings ROMEX ROUTING & BATTERY CHARGER LOCATION (LX MODELS ONLY) TO A/C PANEL IN GALLEY PORT HULLSIDE BATTERY CHARGER BATTERIES OPTIONAL TO HOT AIR COND. UNIT WATER TANK JUNCTION BOX FOR A/C PUMP TRANSOM BATTERY CABLE ROUTING BATTERY SWITCH IN DECK...
  • Page 32 Chapter 3: Electrical Routings TO GROUND IN GALLEY BONDING HARNESS ROUTING TO HEAD PICKUP SEACOCK TO (OPTIONAL) AIR TO FUEL CONDITIONING STRAINER TANK SENDER TO (OPTIONAL) AIR CON. SEACOCK TO (OPTIONAL) AIR CON PUMP TO WASTE GROUND SEACOCK BUSS BAR TO GROUND ON ENGINE TO FUEL...
  • Page 33: Chapter 4: Wiring Schematics

    Chapter 4: Wiring Schematics Chapter 4: Wiring Schematics NOTICE • Wiring diagrams show optional equipment not installed on all models. • Some boats may come equipped with silver (-) and copper (+) colored speaker wires or red/ black (-) and red/white (+) port speaker wire colors; green/black (-) and green/white (+) star- board speaker wire colors.
  • Page 34: Dual Dockside

    Chapter 4: Wiring Schematics Du a l Do c k s id e • Ciera 2455 Cruiser Owner’s Manual Supplement...
  • Page 35: Engine Electrical System

    Chapter 4: Wiring Schematics E n g in e E le c tr i c al S ys t e m • Ciera 2455 Cruiser Owner’s Manual Supplement...
  • Page 36: Limited Warranty

    LIMITED WARRANTY AND ALLOW US AN OPPORTUNITY TO RESOLVE THE MATTER. We require that you return your boat, at your expense, to your selling dealer or, if necessary, to the Bayliner factory. You will be responsible for all transportation, haulouts and other expenses incurred in returning the boat for warranty service.
  • Page 37 Owner’s Notes...
  • Page 38 Owner’s Notes...
  • Page 40 Part Number 1693373 A Brunswick Company Bayliner • P.O. Box 9029 • Everett, WA 98206 • 360-435-5571...
