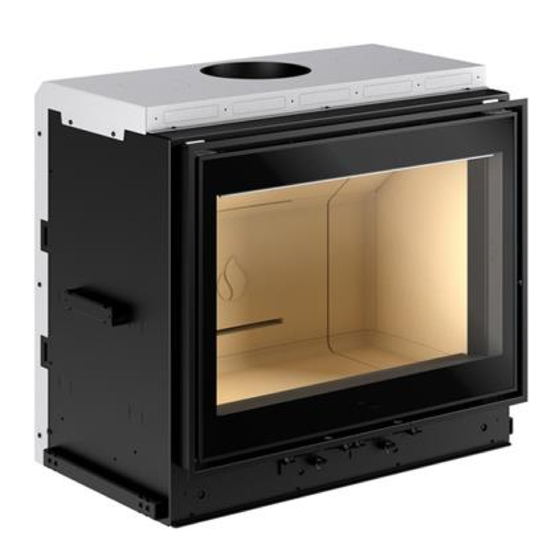

- Page 1 MC 70/51 MC 90/44 MC 120/48 Riverside, Goods Road, Belper, Derbyshire. DE56 1UU Tel: 01773 820940 Fax: 01773 820477 E-mail: info@robeys.co.uk Web Site www.robeys.co.uk INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE...
-
Page 2: Health And Safety Precautions
SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY INSTRUCTIONS CAREFULLY BEFORE INSTALLATION These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. - Page 3 NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet of the stove to the top of the chimney should be satisfactory. Alternatively the calculation procedure given in EN 13384-1 may be used as the basis for deciding whether a particular chimney design will provide sufficient draught. Please Note, this appliance has been tested by the manufacturers and works on a 3.5m straight flue.
-
Page 4: Warning Note
Document J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber Combustion air supply In order for the stove to perform efficiently and safely there should be an adequate air supply into the room in which the stove is installed to provide combustion air. -
Page 5: Important Notes
(b) Let the fire go out (c) When safe to do so, check for flue or chimney blockage and clean if required (d) Do not attempt to relight the fire until the cause of the fume emission has been identified and corrected. If nec- essary seek expert advice. - Page 6 Operation with door left open: Operation with the door open can cause excess smoke. The appliance must not be operated with the appliance door left open except as directed in the instructions. Dampers left open: Operation with the air controls or dampers open can cause excess smoke. The appliance must not be operated with air controls or dampers left open except as directed in the instructions.
- Page 7 Refuelling Keep the firebox well filled (the fuel may be sloped up from the front firebars), but do not allow fuel to spill over the top of the front fire bars. Take care that fuel does not project over the front fire bars or damage to the glass may be caused when the doors are closed Flueway cleaning It is important that the baffle plate and all the stove flueways are kept clean.
- Page 10 Section Heading Page GENERAL RULES / QUICK QUIDE Single chimney or flue way Soot inspection Chimney stack Fresh air intake Installation environment Load bearing capacity of the floor Heating capacity Methods of heat diffusion Suitable heat insulating materials 1.10 Minimum safety distances 1.11 Connection to the flue way 1.12...
- Page 48 Multifuoco ventilation kit with remote control. INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE.
