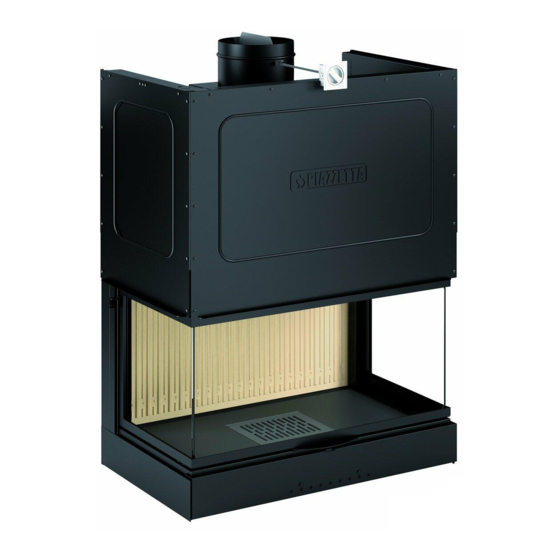

Dear Customer,
Thank you for having chosen one of our products, which is the result of years of experience and continuous research aimed at making a
superior product in terms of safety, reliability and performance.
This booklet contains information and advice for safe and efficient use of your product.
IMPORTANT INFORMATION
•
This instruction booklet has been prepared by the manufacturer
and is an integral part of the product. In the event of sale or relo-
cation of the product make sure this booklet accompanies it, since
the information contained in it is addressed to the purchaser and
to anyone involved in the installation, use and maintenance of the
product.
•
Read the instructions and the technical information contained in
this booklet carefully before proceeding with installation, use or
any repairs.
•
The observance of the instructions and technical information in
this instruction booklet guarantees the safety of persons and pro-
perty; it also ensures more efficient operation and an increased li-
fespan.
•
Gruppo Piazzetta S.p.A. cannot be held responsible for damage or
injury due to failure to comply with the instructions for installa-
tion, use and maintenance given in this booklet, or due to unau-
thorised alterations or to the use of other than original spare
parts.
•
Appliance installation and use must conform with the manufac-
turer's instructions as well as with European and national legisla-
tion and local regulations.
•
The wall against which the product is to be placed must not be of
See the guarantee certificate enclosed with the product for the terms, limitations and exclusions.
In line with its policy of constant product improvement and renewal, the manufacturer may make changes without notice.
This document is the property of Gruppo Piazzetta S.p.A.; no part of it may be disclosed to third parties without the written permission
of Gruppo Piazzetta S.p.A.
All rights reserved by Gruppo Piazzetta S.p.A..
REFERENCE STANDARDS
UNI EN 832 . . . . . . . . . . . . . . . . . . . . . . . .Thermal performance of buildings - Calculation of energy use for heating
UNI EN 13229 . . . . . . . . . . . . . . . . . . . . . .Inset appliances including open fires fired by solid fuels - Requirements and test methods
UNI 10683:2005 . . . . . . . . . . . . . . . . . . . . .Heating appliances fired by wood or other solid biofuels - Installation requirements
UNI EN 13384 . . . . . . . . . . . . . . . . . . . . . .Chimneys - Thermal and fluid dynamic calculation methods
UNI 7129 . . . . . . . . . . . . . . . . . . . . . . . . . .Gas plants for domestic use fed by network distribution
UNI 10847 . . . . . . . . . . . . . . . . . . . . . . . . .Chimneys for generators feeded with liquid and solid flues - Maintenance and inspection
EN 1856-1 . . . . . . . . . . . . . . . . . . . . . . . . .Chimneys - Requirements for metal chimneys - Part 1: System chimney products
EN 1856-2 . . . . . . . . . . . . . . . . . . . . . . . . .Chimneys - Requirements for metal chimneys - Part 2: Metal liners and connecting flue pipes
UNI EN 1443 . . . . . . . . . . . . . . . . . . . . . . .Chimneys – General requirements
DIN 18 895 . . . . . . . . . . . . . . . . . . . . . . . . .Fireplaces
DIN 51731 class of measurement HP2
•
•
•
•
•
•
•
•
. .Fuels
H07025720 / DT2000722 - Rev. 03
wood or any other flammable material. For correct installation it
is also important to maintain safety distances (refer to the section
entitled "MINIMUM SAFETY DISTANCES").
Prior to completing installation of the surround, light the stove
and when it has heated up check that the grate and that the flue
connection is correct.
Check that the floor where the product is to be installed is per-
fectly level.
Do not fix the heater unit in any way whatsoever, but simply place
it next to the surround.
When handling the steel parts of the surround or the ceramic
parts it is advisable to use clean cotton gloves to avoid leaving fin-
gerprints that are difficult to remove at first time of cleaning
The fireplace must be assembled by two persons.
This appliance has been designed solely for heating. It is not re-
commended for cooking foods.
Stop using the product in the event of fault or malfunctioning.
The product you have purchased may differ slightly from the one
illustrated in this booklet since the pictures are only given as an
indication and not an exact portrayal.
DT2010001-01
DT2010139-00
DT2010140-02
29
Advertisement
Table of Contents
Related Manuals for Piazzetta MA271 SL
Summary of Contents for Piazzetta MA271 SL
-
Page 1: Important Information
In line with its policy of constant product improvement and renewal, the manufacturer may make changes without notice. This document is the property of Gruppo Piazzetta S.p.A.; no part of it may be disclosed to third parties without the written permission of Gruppo Piazzetta S.p.A. -
Page 2: Table Of Contents
DIMENSIONS MA271 SL ........43... -
Page 3: General Rules
1.0 GENERAL RULES DT2011911-00 Before proceeding with installation, choose the most suitable position for your fireplace according to the indications given in the paragraph “MINIMUM SAFETY DISTANCES” and to all the indications below. Fig. 1 CHIMNEY STACK FLUE HOOD GRILLE CONNECTION TO FLUE SAFETY DISTANCES OUTER HOOD... -
Page 4: Single Flueway Or Chimney
DT2030258-00 If the flue pipe is an incorrect size or installed other than in compliance with the above instructions, Gruppo Piazzetta Fig. 3 Fig. 4 S.p.A. cannot be held liable for malfunctioning of the product, damage to property or injury to persons or animals. -
Page 5: Chimney Stack
DT2010025-03 CHIMNEY STACK The chimney stack is a device fitted on the top of the chimney that is de- Fig. 7 Fig. 8 signed to aid dispersion of the products of combustion in the atmos- phere. The chimney stack must comply with the following requirements: - it must have an internal section and shape the same as the flue (A);... -
Page 6: Fresh Air Intake
DT2010170-01 FRESH AIR INTAKE To ensure trouble-free operation the stove/fireplace must have the Fig. 12 necessary air available for combustion and this is provided through the fresh air intake. The fresh air intake must: Canopy - have a total free cross section at least equal to the size given in the grille paragraph “TECHNICAL DATA”;... -
Page 7: Installation Environment
DT2010033-01 INSTALLATION ENVIRONMENT The appliance should be installed in a location which allows safe and convenient use as well as easy maintenance. If the product being in- stalled requires an electrical socket, the room must also be provided with an earthed power supply in accordance with current regulations. The room where the appliance is to be installed must comply with the following requirements: they must not be used as a garage, store for combustible material or for activities with a risk of fire. -
Page 8: Suitable Heat Insulating Materials
DT2010173-01 SUITABLE HEAT INSULATING MATERIALS Type of suitable heat insulating materials. Material: mineral fibre; ceramic fibre; rock wool. sheets; mat; shells. Form: Specifications: specific weight of at least 245 kg/m³ with working temperature limit of at least 1000°C. Thermal conductivity λ (400°C) ≤ 0.1 W/mK Thickness: as shown in the figures in the paragraph “MINIMUM SAFETY DISTANCES”. -
Page 9: Connection To The Flueway
This area is defined by the distance “R”. (Fig. 15 - 16) Failure to comply with the above could cause a fire!!! The minimum safety distances to be observed are given in the table below: MA271 SL MA283 DX-SX SL MA272 SL... -
Page 10: Lining Wall
Furthermore, the surround must be made with non-flammable materials in com- pliance with regulations. For Gruppo Piazzetta S.p.A. surrounds, follow the instructions enclosed with the product. Testing and lighting for first time Only a visual inspection can be made in the intermediate stage for fireplaces, stoves and appliances that must be assembled or clad with brick- work or require the use of cement binders. -
Page 11: Prevention Of Domestic Fires
DT2010027-02 1.14 PREVENTION OF DOMESTIC FIRES The product must be installed and used in compliance with the manufacturer’s instructions and European and national standards as well as local regulations. When a flue pipe passes through a wall or a ceiling, special installation methods must be applied (protection, thermal insulation, distances from heat-sensitive materials, etc.). -
Page 12: Technical Data And Specifications
MA271 SL Enamelled fireplace MA271 SL ....1 Grate 422x466 ......2 Aluker back panel 495x520 . -
Page 13: Accessories And Equipment
DT2011915-00 ACCESSORIES AND EQUIPMENT Description Silicone paint spray can In kit Valve with smoke damper control In kit Ash drawer In kit Hood grille 145x390 In kit External air intake grille 175x325 In kit Hexagonal door handle tool In kit Pipes and bends for connection to flueway Optional Kit feet MA SL... -
Page 14: Technical Data
DT2012343-02 TECHNICAL DATA U.M. MA271 SL MA272 SL MA283 DX-SX SL Rated heat power 12.0 12.0 12.0 Consumption at rated heat output kg/h Thermal efficiency > 70% > 70% > 70% CO content (with 13% O2) Approved in accordance with standard... -
Page 15: Dimensions Ma271 Sl
DT2033359-01 DIMENSIONS MA271 SL Ø 25 59,5 53 ,5 DT2033573-00 DIMENSIONS MA272 SL Ø 63,8 135 ,3 131 ,3 12,5 10 ,5 91,6 H07025720 / DT2000722 - Rev. 03... -
Page 16: Dimensions Ma283 Dx Sl
DT2033361-00 DIMENSIONS MA283 DX SL Ø 25 DT2033360-00 DIMENSIONS MA283 SX SL Ø 25 H07025720 / DT2000722 - Rev. 03... -
Page 17: Preparing For Installation
- Adjust the height of the fireplace from the ground according to the chosen cladding or surround. If more height is needed, insert sui- table shims. If a PIAZZETTA cladding or surround is installed, the exact height of the hearth is determined in the “INSTRUCTION FOR THE INSTALLER”... -
Page 18: Installation Of The Smoke Register
4.0 INSTALLATION OF THE SMOKE REGISTER DT2010328-00 The hearth is provided with a smoke register with articulated rod Fig. 26 which has the job of following the angle of inclination to which the li- ning hood is being set. For installation purposes proceed as follows: - position the register [2] in its seat and keep it in a vertical position. -
Page 19: Use
5.0 USE DT2012344-00 • Certain basic facts can be all-important for best performance and getting the most out of your appliance. Please find below some basic in- formation intended to be of use with regard to the choice of firewood, the adjustment of the dampers and proper operation of the appliance. •... -
Page 20: Smoke Damper Regulation
SMOKE DAMPER POSITION FIREPLACE IN OPERATION LIGHTING OR STOKING-UP AT NOMINAL POWER OF FIREPLACE MA271 SL MA272 SL MA283 DX-SX SL (*) Position referred to a draught of 12 Pa H07025720 / DT2000722 - Rev. 03... -
Page 21: Combustion Air Regulation
Regulation is carried out as shown in the figure to the side. Refe- rence should also be made to the paragraph “SMOKE DAMPER RE- GULATION”. DT2030526-00 Regulation and quantity of material to be burned for rated power: MA271 SL MA272 SL MA283 DX-SX SL Material to be burned See “FUEL” paragraph... -
Page 22: Lighting
DT2010617-01 LIGHTING When lighting the fire, the grate should be brought quickly to working temperature. If it is done slowly, condensation will inevitably form and cause blackening of the grate and the glass. Put the fuel into the grate according to the methods described below: Fig. -
Page 23: Maintenance
6.0 MAINTENANCE DT2012347-00 • Maintenance is to be considered compulsory for correct and efficient stove operation. If maintenance is not carried out with the recom- mended frequency, stove performance could suffer. The manufacturer will not be responsible for stove deterioration or malfunction if due to poor maintenance. -
Page 24: Cleaning The Glass (Daily)
Proper tightness of the door seal is essential for optimal product performance. It is therefore recommended that the seals be checked peri- odically or after a long period of use for signs of wear or damage. If necessary replace them using Gruppo Piazzetta S.p.A. original spare parts. -
Page 25: Disposal Of Ashes
DT2010049-04 DISPOSAL OF ASHES Ash from natural (non-treated) wood burned in stoves or open fireplaces is composed mainly of calcium, silicon, potassium and magnesium oxides. The ashes can therefore be used as a fertiliser for plants or in the garden, albeit not exceeding 2.6 kg per 10m2 annually. The ashes should be placed in a metal container with a sealed cover. -
Page 26: Troubleshooting
7.0 TROUBLESHOOTING DT2010332-00 Some of the above problems could be resolved by following the instructions. Only qualified persons must carry out work on the stove and only when it is cold and disconnected from the power supply (pull out the plug). Unauthorised tampering with the appliance or use of other than original spare parts invalidates the warranty and relieves the manufacturer of all and any liability. - Page 27 Problem Cause Remedy Use the quantity of wood indicated in Quantity of wood less than necessary The grate does not warm the instructions (See “TECHNICAL for nominal efficiency DATA” paragraph) Undersized grate for the environment Integrate with another product to be heated Inadequate insulation for the environ- Insulate well with suitable materials ment in which the fireplace is installed...
- Page 28 N° matricola prodotto, da comunicare al Centro Assistenza Tecnica del Gruppo Piazzetta in caso di richiesta assistenza. Product serial number, to be quoted when requesting service from the Gruppo Piazzetta After-Sales Service Centre. Via Montello, 22 31011 Casella d’Asolo (TV) - ITALY Tel.
