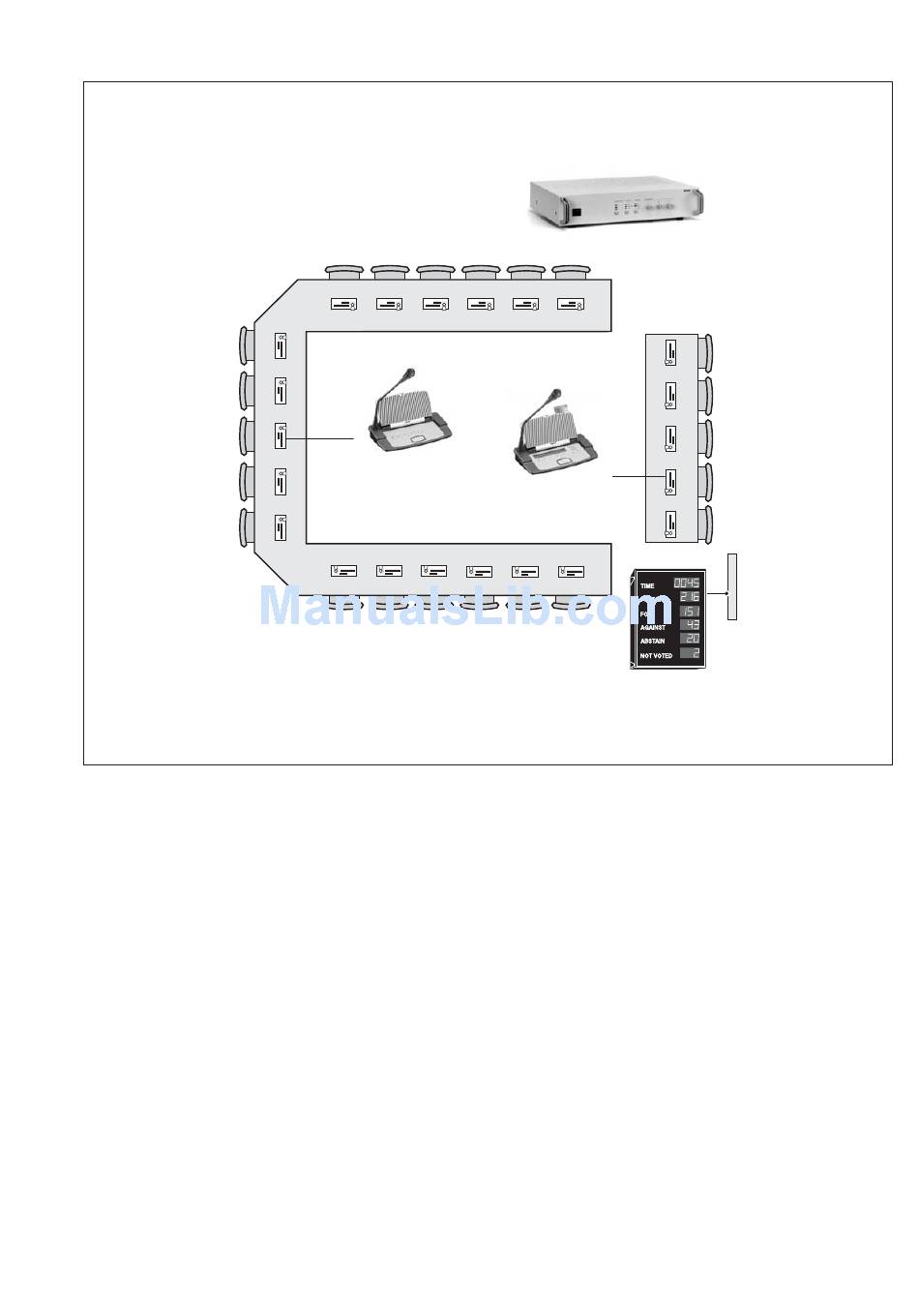

Example 2 - discussion with voting
The kind of discussion shown in this example is typical
of a local council or board meeting, where some for-
malised structure is required and the need for quick
and efficient decision taking means that an automatic
voting system is required. The Basic CCU, the
LBB 3500/05, is used as a stand-alone conference con-
trol system, providing voting facilities as well as micro-
phone management and power for all contribution
units. A chairman will preside over the meeting and
control the proceedings.
An LBB 3547/00 Chairman Unit is provided, whose
graphic LCD display provides the chairman with speak-
er information, voting results and a description of the
unit softkey functions.
LBB 3544/00
Delegate Unit
LBB 3547/00
Chairman Unit &
ID-card Reader,
Channel Selector
The unit also has microphone priority and can be used
to start, stop and suspend voting, and alter delegate
microphone status.
Each delegate is equipped with an LBB 3544/00; a table-
top delegate unit which allows them to speak, register a
request-to-speak, listen to the speaker, and vote. The
five voting buttons allow parliamentary-, multiple
choice- or audience response voting to take place. The
voting results are sent via the CCU to a numeric hall
display.
DCN Data Brochure | Introduction | 11
LBB 3500/05
Basic Central
Control Unit
Numeric Hall Display
