Bosch Digital Congress Network Data Brochure page 14

Infra-red
Headphones
Receiver
LBB 3535
LBB 1215
Dual Audio Interface Unit
Universal
Microphone
Clamp

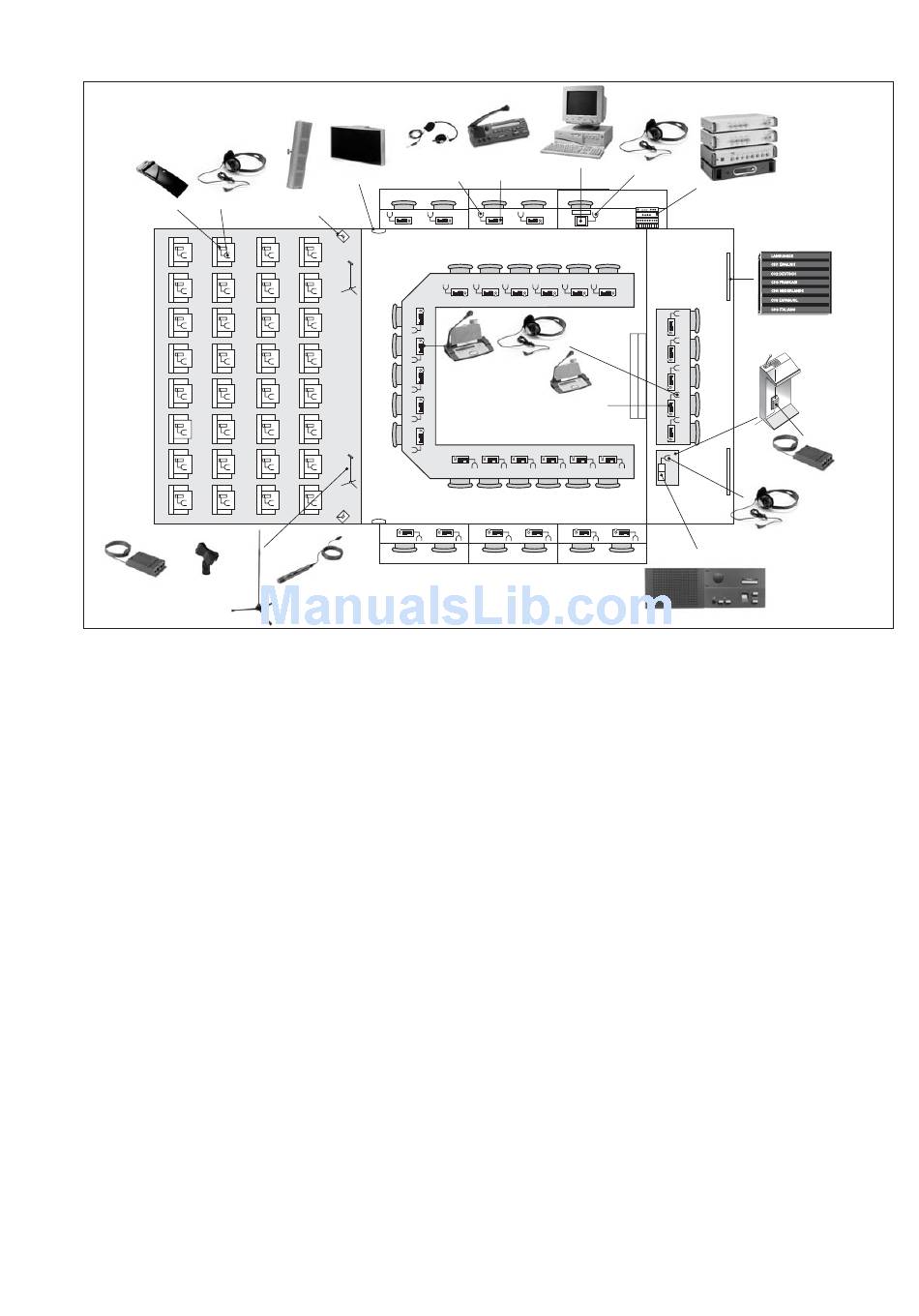

Example 4 - conference with PC control
The venue and number of participants is similar to exam-
ple 3, but extra facilities are provided by the addition of a
PC (with DCN application software modules), a wireless
language distribution system and an alphanumeric display
for showing voting results. The LBB 3500/15 Extended
CCU carries out core control functions, and this is comple-
mented by the conference management facilities available
to the operator via the appropriate application software.
The use of the PC and the relevant software modules
allows electronic identification and access control for
contributing delegates, via a card reader with or without
PIN code. All contributing delegates use the
LBB 3546/00 Delegate Unit, which incorporates a Chip-
Card reader facility. The chip-cards are encoded using
the Chip-Card Encoder software module and the
LBB 3557 Chip-Card Encoder.
An infra-red transmission system is used to distribute
the interpretation languages to the seated non-con-
tributing delegates. The Infra-Red Transmitter and
strategically-located infra-red radiators are used to dis-
tribute the available languages throughout the confer-
ence venue. Each non-contributing delegate is equipped
with an infra-red receiver and headphones, and can
LBB 9095
Interpreter
Headphones
Infra-red Radiator
Loudspeaker
Sound Column
LBB 3546/00
Delegate Unit &
ID-card Reader,
LCD Display &
Channel Selector
LBB 3536
Hand Microphone
LBC 1221
Floor Stand
DCN Data Brochure
LBB 3520
Interpreter Unit & Headphones
LCD Display
Headphones
LBB 3547/00
Chairman Unit &
ID-card Reader,
LCD Display &
Channel Selector
LBB 3538
Loudspeaker Panel
select the language of his/her choice by means of a
channel selection facility on the receiver.
The software modules running on the system PC would
typically include the following:
• Startup - essential in all DCN software driven
applications
• System Installation - to provide configuration infor-
mation for other software modules
• Microphone Management or Synoptic Microphone
Control - to configure and control delegate micro-
phone status and determine microphone operating
mode. Both give on-screen status
• Delegate Database - to compile a data- base on con-
ference participants and specify conference-related
parameters such as access requirements
• Multi Voting - to allow different kinds of voting
including parliamentary voting
• Simultaneous Interpretation - to provide up to
15 simultaneous interpretations of the floor language
• Attendance Registration - to provide electronic access
control and a means of delegate registration
• Message Distribution - to allow the
generation of messages to individuals or groups
• ID-Card Encoder
| Introduction | 13
LBB 3500
Basic Central Control Unit
LBB 3508
Audio Media Interface Unit
Mixing Amplifier
LBB 4502/XX
Integrus Transmitter
LBB 3535
Dual Audio Interface Unit
Headphones
LBB 3537
Microphone & Control Panel
LBB 3524
Electronic Channel Selector Unit
