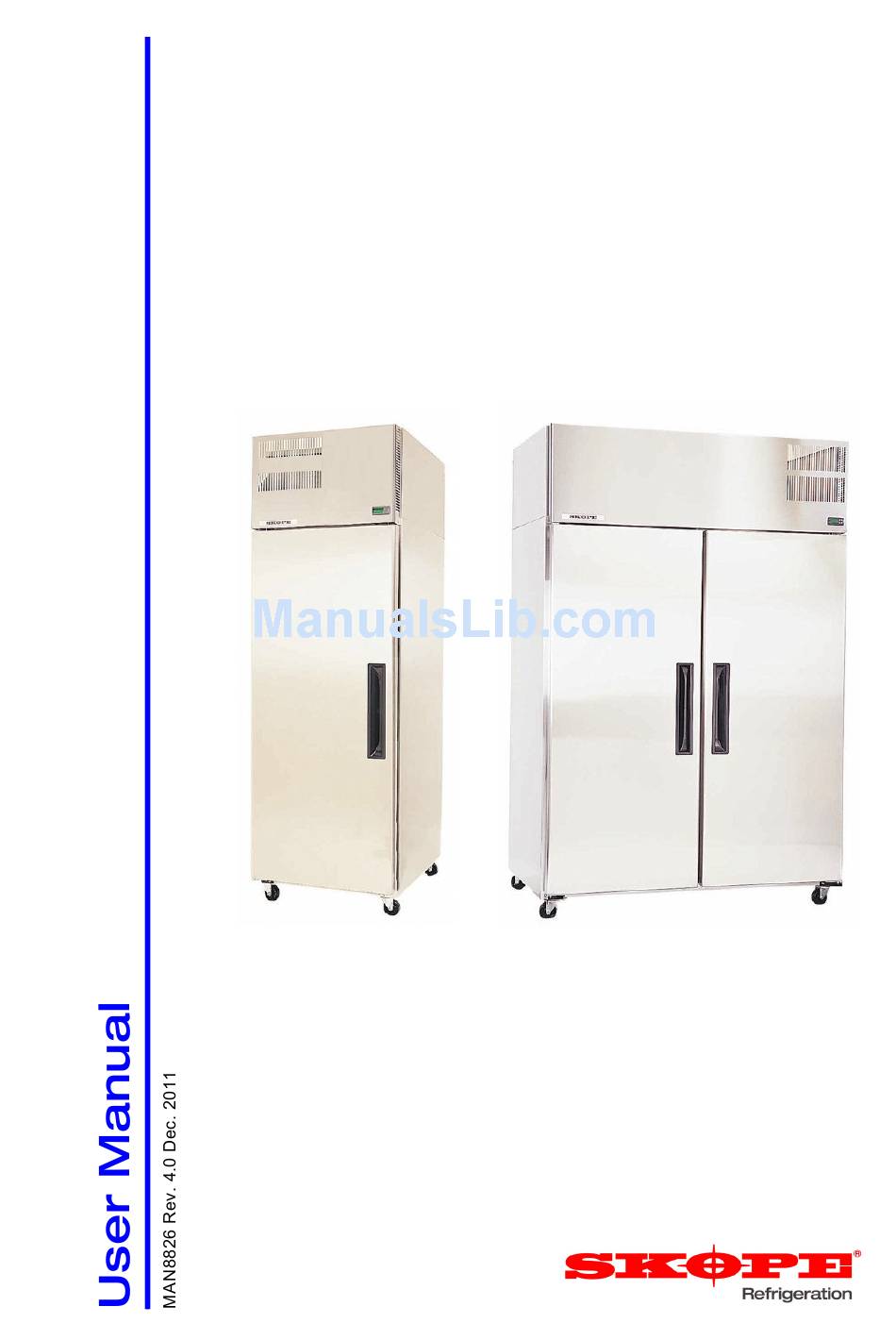

  • Page 1 SKOPE PEGASUS PG600/1300VF Vertical Freezer - INTEGRAL PG600VF PG1300VF...
  • Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
  • Page 3: Table Of Contents

    Troubleshooting......... 16 SKOPE Pegasus Vertical Freezer - Integral...
  • Page 4: Installation

    SKOPE Pegasus Vertical Freezer - Integral Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, ...
  • Page 5: Positioning The Cabinet

    SKOPE Pegasus Vertical Freezer - Integral Positioning the Cabinet Location When positioning the cabinet, avoid direct sunlight and warm draughts etc. The cabinet must NOT be situated where it is affected by warm or hot air °C) (above 40 from adjacent equipment, as this will compromise the airflow and performance of the chiller.
  • Page 6: Ventilation

    SKOPE Pegasus Vertical Freezer - Integral Ventilation Adequate ventilation is essential. For efficient operation of the chiller, it is essential that adequate ventilation be provided above the refrigeration unit. Never store cardboard cartons or other items on top of the refrigeration unit.
  • Page 7: Shelving

    SKOPE Pegasus Vertical Freezer - Integral Shelving The cabinet is supplied with two sets of shelves and shelf support brackets per door. The shelves can be positioned at different heights to suit various products. To fit the shelves 1. Unpack the shelving items from inside the cabinet.
  • Page 8: Operation

    SKOPE Pegasus Vertical Freezer - Integral Operation Automatic Start-Up Connect the cabinet to the mains power supply and check operation of the refrigeration unit, electronic controller and cabinet lighting. Refrigeration The refrigeration unit evaporator and condenser fans should all operate Unit continuously from the time the cabinet is plugged in.
  • Page 9: Electronic Controller

    SKOPE Pegasus Vertical Freezer - Integral Electronic Controller Controller Display Item Icon Function Silences alarm buzzer Allows entry to frequent parameters section, if pressed for 5 seconds Allows entry to configuration parameters section, if pressed simultaneously with SEL key for 5 seconds...
  • Page 10: Controller Operation

    3. Unplug the cabinet from the power supply for 1 minute, then re-connect to the power supply. 4. Check cabinet product loading to ensure ventilation slots are not blocked and that product does not overhang the shelves. 5. If alarm persists, contact a SKOPE authorised refrigeration service agent. Operation User Manual...
  • Page 11: Programming

    SKOPE Pegasus Vertical Freezer - Integral Programming To prevent unauthorised modification, the controller is factory set with the keypad locked. To make permanent program changes, including changing the setpoint and forcing a manual defrost, the keypad must first be unlocked, by entering an access code.
  • Page 12 SKOPE Pegasus Vertical Freezer - Integral To lock the keypad 1. Press and hold both the PRG and SEL keys simultaneously for more than 5 seconds until ‘00’ is displayed. 2. Press the UP (aux) key until ‘22’ is displayed.
  • Page 13: Setpoint

    Setpoint The freezer setpoint is factory set at -21°C. If necessary, the standard setting can be adjusted between -16°C and -26°C. SKOPE do not recommend the setpoint be changed unless absolutely necessary, and then only in small increments at a time.
  • Page 14: Servicing

    Cabinet The cabinet interior is lit by an LED tube fitted behind the diffuser at the top Interior Lights of the cabinet (PG600VF) or behing the centre pillar (PG1300VF). See the table below for LED tube specifications. LED tube specifications...
  • Page 15: Cleaning

    Over time, dust may accumulate within the condenser that cannot be removed with a brush. if this occurs, contact SKOPE to arrange for a SKOPE Authorised Service Agent to clean the condenser with compressed air.
  • Page 16: Troubleshooting

    SKOPE Pegasus Vertical Freezer - Integral Troubleshooting Complaint Possible Cause Repair 1. Cabinet not • Loss of power supply. • Check mains power supply. operating and no controller display: 2. Cabinet lights • Failed LED light tube. • Replace LED light tube (see not operating: page 14).
  • Page 17 SKOPE INDUSTRIES LIMITED NEW ZEALAND CONTACT Head Office PO Box 1091, Christchurch New Zealand Freephone: 0800 947 5673 Fax: (03) 983 3896 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz AUSTRALIAN CONTACT A.B.N. 73 374 418 306 PO Box 7543, Baulkham Hills B.C. NSW 2153, Australia...
