Skope ProSpec Series Service Manual
Top mount fridge hydrocarbon
Hide thumbs
Also See for ProSpec Series:
- Service manual (78 pages) ,
- User manual (4 pages) ,
- User manual (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Skope ProSpec Series
Summary of Contents for Skope ProSpec Series

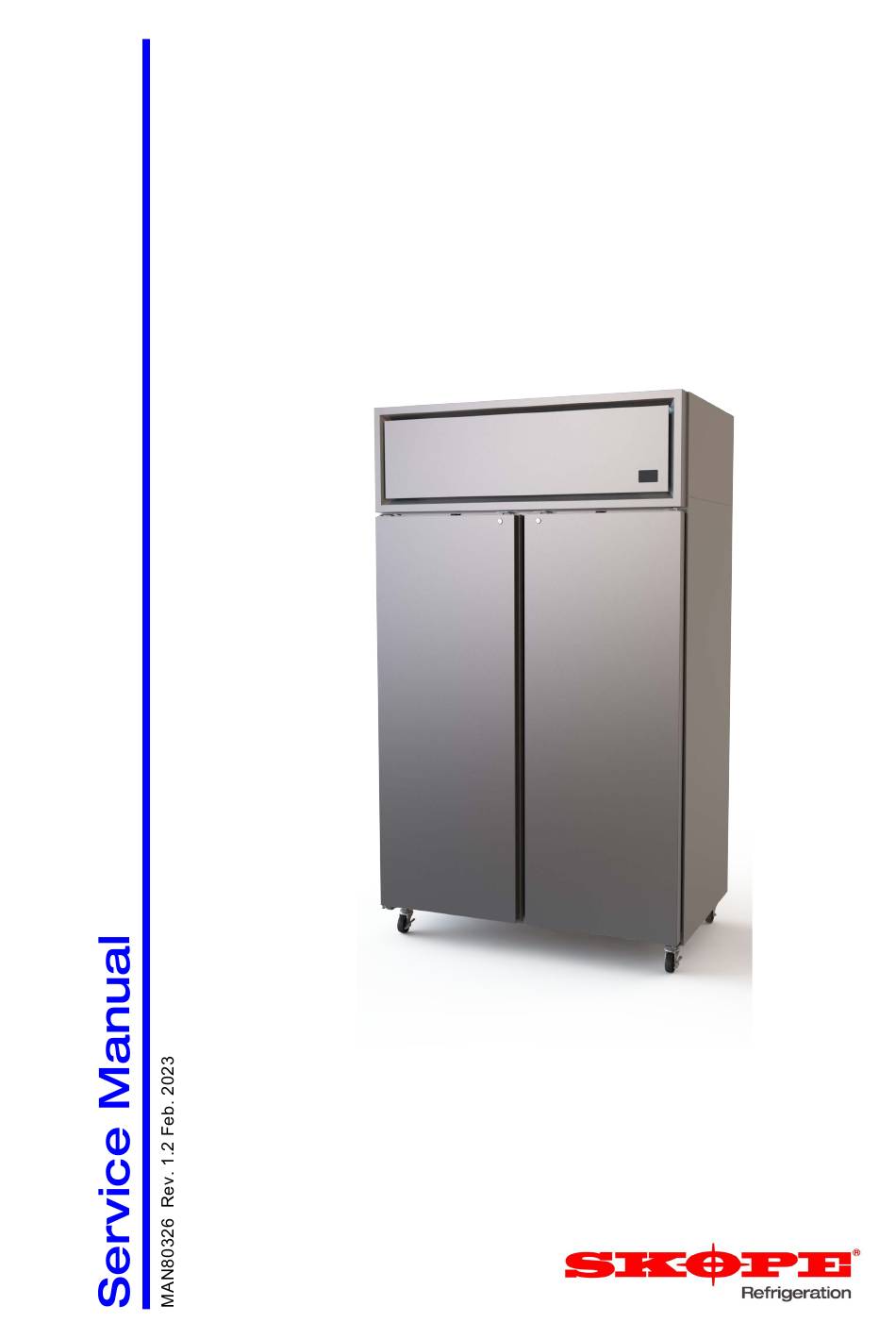

- Page 1 ProSpec SKOPE Top Mount Fridge Hydrocarbon...
- Page 2 Website: www.skope.com Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: Applies the trade mark to the product after its state, condition, get-up or packaging has been altered...
-
Page 3: Table Of Contents
SCS Connect Track App ....... . 12 SKOPE-connect App........12 Controller Faceplate . - Page 4 On-site Work Procedure ........55 SKOPE ProSpec Upright Series...
-
Page 5: Servicing Hydrocarbon
Asphyxiation Service requirements Do not interfere with the refrigeration system. All refrigeration maintenance and repairs must be undertaken according to the SKOPE HC Service Requirements. See the “SKOPE HC Service Requirements” below for more information, including examples of hazardous activities. -
Page 6: Skope Hydrocarbon Service Requirements
SKOPE ProSpec Upright Series SKOPE Hydrocarbon Service Requirements Servicing must only be performed by approved SKOPE Service Technicians, and must meet all requirements in the SKOPE Hydrocarbon Service Policy (available from SKOPE), including the following: Hydrocarbon work – SKOPE Service Policy It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy... -
Page 7: Specifications
SKOPE ProSpec Upright Series 2 Specifications Models This product service manual is applicable to the SKOPE ProSpec top mount upright fridges detailed in the table below. Refer to the relevant product specification sheet (available on the SKOPE website: www.skope.com) for specifications. -
Page 8: Installation
SKOPE ProSpec Upright Series 3 Installation Installation Guidelines When installing this cabinet, ensure the installation guidelines below are considered and met. Ventilation Surface Door Opening Climate Class Ensure all ventilation The installation surface Allow adequate space for The cabinet must be... -
Page 9: Shelves
SKOPE ProSpec Upright Series 300 mm 300 mm Min. above* Min. above* Rear top sign* No side No behind clearance clearance required required No below clearance required 50mm Adhesive Blocks If required use two adhesive blocks on the rear of the cabinet. Position... -
Page 10: Repositioning Shelves
SKOPE ProSpec Upright Series Procedure 2: To remove a shelf support strip 1. Pull the front of shelf support strip up and away from the vertical support. This will free up the front section of the support strip. 2. Pull the rear shelf support strip forward and away from the cabinet. -
Page 11: Operation
SKOPE ProSpec Upright Series 4 Operation Loading Product Let the cabinet run for 30 minutes before loading it with product for the first time. When loading the cabinet: • Do not exceed a maximum load of 46kg per shelf (standard shelves). -
Page 12: Electronic Controller
Connect electronic controller. Track App SKOPE- The SKOPE-connect app is designed for end-users and provides wireless access to the controller from mobile devices with Bluetooth capability. connect App The app allows end users to adjust some electronic controller settings including energy saving modes, open/close hours and preset temperature set points for specific product. -
Page 13: Controller Faceplate
SKOPE ProSpec Upright Series Controller Faceplate Buttons and The controller faceplate includes the front display panel and interface buttons. Display Table 2: Controller faceplate No. Description 1 Night Mode: Indicator. On during cabinet night mode. Display: Indicator. Digital display of cabinet air temperature or messages. The temperature is what the sensor inside the cabinet detects, and not necessarily the product temperature. -
Page 14: Scs Connect Field App And Track App
(search for “scs wellington” to find it). 2. When you first run the app, you will be requested to enter an activation code. Contact your Service Manager or SKOPE to receive your activation code (you must be connected to the internet at the time of activation). - Page 15 SKOPE ProSpec Upright Series Home screen The home screen shows a graphic representation of the current state of the cabinet being controlled. Output control Provides control of the controller input sensors and switches, and output relays. Edit parameters Provides access and editing of individual controller parameters.
-
Page 16: Faults And Alarms
SKOPE ProSpec Upright Series Faults and Alarms If a fault occurs, it is logged, the Fault - Alarm indicator is lit on the controller faceplate, and a message may be displayed. Faults do not affect product temperature, and do not require action from the shop owner, unless they turn into an alarm. - Page 17 SKOPE ProSpec Upright Series Table 4: Faults (continued) Description Possible root cause Actions Cartridge swap is not required. • Condenser not clean • Remove and clean the condenser filter. • Check that the condenser is free of debris. • If the coil is dirty, clean it with a vacuum cleaner or High condensing temperature soft brush.
- Page 18 SKOPE ProSpec Upright Series Table 5: Alarms (continued) Code Description Possible root cause Action • Excessive door openings • Make sure the door is not opened unnecessarily. • Door being left open • Ensure the door is closed. • Door leaking air (bad gasket or •...
- Page 19 SKOPE ProSpec Upright Series Table 5: Alarms (continued) Code Description Possible root cause Action Cartridge swap is not required. • Control probe or circuit • Either: • Measure the probe resistance to make sure it is Control probe failure within the range.
- Page 20 SKOPE ProSpec Upright Series Table 5: Alarms (continued) Code Description Possible root cause Action • Parameters • Load the correct parameter settings. Controller communication error • Controller or circuit • The controller may be reading incorrectly and need replacing. Controller has lost communication channels.
-
Page 21: Replacement Procedures
The cabinet is fitted with LED modular interior light(s). Ensure the light is replaced with the same light type. Fluorescent or LED tubes cannot be used in place of LED modular lights. IMPORTANT Replace the light with the same SKOPE OEM part. DO NOT use alternative LED strip or tube lights, or fluorescent tubes. - Page 22 SKOPE ProSpec Upright Series Procedure 7: To replace an interior LED light assembly 1. Disconnect the cabinet from the power supply. 2. Remove all wire shelves from cabinet. 3. Shelf support strips will need to be removed on one side of the cabinet. This will depend on if you are replacing a left or right side LED assembly.
-
Page 23: Doors
SKOPE ProSpec Upright Series Procedure 8: To replace the LED driver power supply 1. Disconnect the cabinet from the power supply. 2. Remove the front panel assembly, cabinet sides and back strip IMPORTANT Lift the cartridge, do NOT slide as cabinet seal may be damaged 3. -
Page 24: Alignment Adjustment
SKOPE ProSpec Upright Series Alignment If a door is out of alignment, realign it by loosening the top hinge bracket fixing screws, and move the top of the door as required. Adjustment Replacing the The one-piece door gasket clips into the door frame and runs around the perimeter of the door. -
Page 25: Replacing The Capstan
Ensure you have read and understood this manual before starting any servicing. Important • SKOPE hydrocarbon refrigeration systems must only be serviced by appropriately skilled and qualified refrigeration mechanics. • Servicing a sealed refrigeration system must occur at a hydrocarbon workshop or service area with dedicated hydrocarbon equipment and personal protective equipment (PPE). -
Page 26: On-Site Work
▪ Must have no ignition sources, nor any areas where the gas may pool. • Must be able to transport swap units. • Should carry minimum SKOPE hydrocarbon service parts. On-site Work The service technician must have required knowledge, skills, qualifications, and tools before beginning any on-site work on the refrigeration sealed system. -
Page 27: Refrigeration Cartridge Assembly
Other parts may appear to be suitable, but may not be approved or safe for use in an appliance with hydrocarbon refrigerant. The cartridge must only be used on a SKOPE hydrocarbon compliant cabinet. Refer to the cabinet rating label to determine if the cabinet is suitable for use with a hydrocarbon cartridge. -
Page 28: Gas Detector
• Experience and qualifications suitable for work on a flammable refrigeration system. • Performs no unsafe activity. • Fully complies with SKOPE HC service policy. Minimum tools and equipment • Hydrocarbon gas detector • Safety signage – suitable to create a safe work zone 1.5 m around the cabinet. -
Page 29: Replacing The Cartridge
New spare part refrigeration cartridges supplied by SKOPE are not supplied with the evaporator tub lid, top strap brackets and hold down brackets. When replacing a faulty top mount refrigeration cartridge, retain these parts for use on the new spare part replacement cartridge. -
Page 30: Cartridge Electrics Box Assembly
SKOPE ProSpec Upright Series The evaporator tub lid, top strap brackets and hold down brackets can be ordered in addition to the refrigeration cartridge if required. See page 48 for spare part numbers. Top strap brackets Evaporator tub lid Hold down... - Page 31 SKOPE ProSpec Upright Series Procedure 16: To remove and open the cartridge electrics box assembly 1. Disconnect the fridge from the power supply. 2. If present, unclip the electronic controller from the top of the electrics box. 3. Undo the fixing screw at the top of the electrics box cover, and remove the cover.
-
Page 32: Cartridge Cover
Refer to the label on the electrics box cover to identify the condenser fan plug and socket in the electrics box. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. -
Page 33: Evaporator Fan
(complete with fan motor and fan blade) can be lifted off the evaporator tub once the refrigeration cartridge cover has been removed. IMPORTANT Replace the motor with the same SKOPE OEM part. DO NOT use alternative parts. It is important that the fan blade and/or fan motor is replaced with the same part to ensure safety, correct alignment and refrigeration performance, and compliance. -
Page 34: Compressor
SKOPE ProSpec Upright Series Procedure 21: To access the evaporator fan assembly (continued) 3. Free up cables from the putty on the evaporator tub perimeter. 4. Cut cable ties to release control probe from the fan bracket. 5. Lift the assembly up and out of the evaporator box. -
Page 35: Compressor Electrics
SKOPE ProSpec Upright Series IMPORTANT To eliminate possible vibration noise, ensure no pipes touch the plastic base and condenser assembly. Compressor The compressor electrics are located on the front of the compressor. Electrics To access the compressor electrics, remove the refrigeration cartridge (see page 28) cartridge cover (see page 32). -
Page 36: Qc Terminals
11. Set up controller and cabinet links as required: • Corporate: The service tech must link to the controller to the cabinet serial number in the SCS Connect Field app. • General Market: The owner must set up SKOPE-connect (if in use). Replacement Procedures Service Manual... -
Page 37: Door Switch
SKOPE ProSpec Upright Series Door Switch The cabinet is fitted with a door switch above each door, which tells the electronic controller when a door is opened. A small magnet in the door frame activates the switch. A cable connects the switch to the electronic controller via an inline connector on top of the cabinet. -
Page 38: Condenser Probe
SKOPE ProSpec Upright Series Procedure 28: To replace the evaporator probe (continued) 4. Remove both pieces of putty securing the pipes and cables on the evaporator tub perimeter. 5. Carefully lift the coil up and out of the evaporator tub. Take care of pipes and cables when lifting out. - Page 39 SKOPE ProSpec Upright Series Note: These diagnostic procedures are indicative only. Procedure 30: Refrigeration system diagnostic test Before you start 1. Make sure you are in a suitable workshop. 1. Isolate the cabinet from the power supply and remove the refrigeration cartridge, and remove the cartridge cover.
-
Page 40: Wiring
SKOPE ProSpec Upright Series 7 Wiring Model: Fridge ProSpec 1 and 2-door Model Number: PG21.UPR.1.SD, PG21.UPR.2.SD WIRE COLOURS Black Brown Orange GNYE GNYE Green Inlet-L Inlet-L Inlet-N Inlet-N Blue EMC Filter EMC Filter Grey T1-1 T1-1 T1-2 T1-2 White Compressor... -
Page 41: Spare Parts
SKOPE ProSpec Upright Series 8 Spare Parts Main Assembly – 1-door Fridge Table 12: Parts – Main assembly: 1-door fridge Description Page Cabinet assembly Page 43 Solid door assembly Page 45 Front panel assembly Page 46 Page 47 Cartridge assembly... -
Page 42: Main Assembly - 2-Door Fridge
SKOPE ProSpec Upright Series Main Assembly – 2-door Fridge Table 13: Parts – Main assembly: 2-door fridge Description Page Cabinet assembly Page 43 Solid door assembly Page 45 Front panel assembly Page 46 Page 47 Cartridge assembly Spare Parts Service Manual... -
Page 43: Cabinet Assembly - 1-Door Fridge
SKOPE ProSpec Upright Series Cabinet Assembly – 1-door Fridge Table 14: Parts – 1-door cabinet assembly Description SKOPE Spare Part No. Door locking plate SKC-2-190-0012-0 Adjustable castor (swivel) SXX6181 Adjustable castor (lockable) SXX6182 6" Adjustable Leg (150 mm to 180 mm) -
Page 44: Cabinet Assembly - 2-Door Fridge
SKOPE ProSpec Upright Series Cabinet Assembly – 2-door Fridge Table 15: Parts – 2-door cabinet assembly Description SKOPE Spare Part No. Door locking plate SKC-2-190-0012-0 Adjustable castor (swivel) SXX6181 Adjustable castor (lockable) SXX6182 6" Adjustable Leg (150 mm to 180 mm) -
Page 45: Solid Door Assembly
SKOPE ProSpec Upright Series Solid Door Assembly Table 16: Parts – Solid door assembly SKOPE Spare Part No. Description 1 door 2 door Door assembly - left hand SKC-0-000-1022-0 – Door assembly - right hand (reversible option) SKC-0010-0040-0 – 2 Door assembly - left hand –... -
Page 46: Front Panel Assembly
SKOPE ProSpec Upright Series Front Panel Assembly Table 17: Parts – Front panel assembly SKOPE Spare Part No. Description 1 door 2 door Sign back strip SKC-2-180-0012-0 SKC-2-180-0057-0 Sign panel left SKC-2-180-0234-0 SKC-2-180-0234-0 Sign panel right SKC-2-180-0011-0 SKC-2-180-0011-0 Baffle SKC-0-000-1023-0... -
Page 47: Fridge Cartridge Assembly
SKOPE ProSpec Upright Series Fridge Cartridge Assembly Spare Parts Service Manual... - Page 48 SKOPE ProSpec Upright Series Table 18: Parts – Fridge cartridge assembly Description SKOPE Spare Part No. 1 Door 2 Door HB0070832517A Refrigeration cartridge assembly* HB0070832517A Top metal strap bracket HB0070114875 HB0070114875 Evaporator box lid HB0070511356 HB0070511356 Cartridge gasket seal 1571 mm...
-
Page 49: Electronic Controller Assembly
SKOPE ProSpec Upright Series Electronic Controller Assembly Table 19: Parts – Electronic controller Description SKOPE Spare Part No. Electronic controller assembly* HB0070833377 Wellington drive controller ELZ11749-1629 Controller housing base HB0070206125 Controller housing cover HB0070206126 Cable clamp HB0070206127 * Indicates component sub-assembly... -
Page 50: Electrics Box Assembly
SKOPE ProSpec Upright Series Electrics Box Assembly Table 20: Parts – Electrics box assembly Description SKOPE Spare Part No. Electrics junction box assembly* Electrical front panel HB0070207012A Electrical enclosure panel HB0070207014 Electrical rear panel HB0070207013A EMI filter HB0074600001 Cable clamp... -
Page 51: Maintenance
Unplug the cabinet from the power supply before cleaning the condenser coil. Condenser To ensure trouble-free performance, the condenser coil must be kept clean. SKOPE strongly urges monthly cleaning with a soft brush to remove dust and fluff. A more thorough cleaning is Coil required by qualified service personnel every six months. - Page 52 SKOPE ProSpec Upright Series Procedure 31: To clean the condenser coil 1. Disconnect the cabinet from the power supply. Front panel 2. Remove the front panel assembly from the top of the cabinet by swinging it out and off. Lit sign front panels will also need to be unplugged.
-
Page 53: Troubleshooting
Lights not on • Refrigeration system error (indicated by • Diagnose and repair. If a system fault is found contact the electronic controller) SKOPE for information on how to proceed. • Plug not connected properly • Check and clean the plugs. •... - Page 54 Product must not overhang the shelves. • Refrigeration system error (indicated by • Diagnose and repair. If a system fault is found contact the electronic controller) SKOPE for information on how to proceed. • Frequent door opening • Limit door openings. •...
-
Page 55: On-Site Work Procedure
SKOPE ProSpec Upright Series On-site Work Procedure If a customer reports a “not cooling” fault, and it has been established that the cabinet is not cooling, follow the procedure for an authorised service person below when making the service visit. - Page 56 SKOPE ProSpec Upright Series On-site work procedure (continued) Return faulty cartridge to service depot: Create a safe work area around faulty Is refrigeration cartridge. Area must be in open well system ventilated space. Ensure no hazards, considered to ignition sources or drains.
- Page 57 SKOPE Industries Limited ABN: 73 374 418 306 AU: 1800 121 535 NZ: 0800 947 5673 skope@skope.com www.skope.com...
