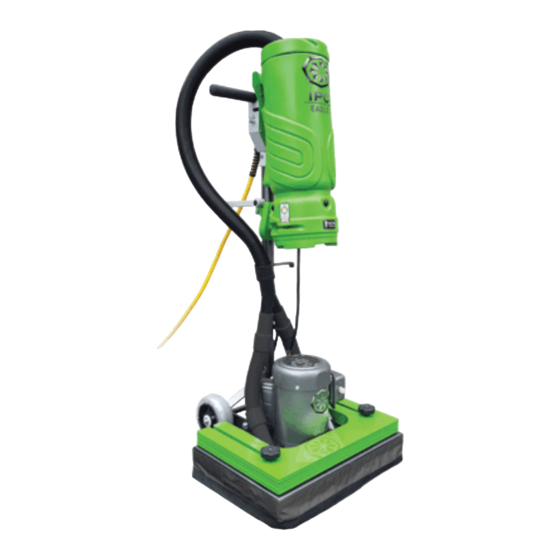

- Page 1 Parts & Operations Manual 28” 20” Integra-D Orbital Floor Machine Model: ORB20, ORB20V/ ORB28, ORB28V Serial Number: Date of Purchase: ____________________________________ ____________________________________ More info: www.ipceagle.com...
-
Page 2: General Safety
Integra-D - Orbital Floor Machines About the Integra-D Floor Machine Our Integra-D orbital scrubbing machine has been designed from the ground up to offer the most time saving efficient features for the user. A 1.5 hp motor spinning at 3450 rpm sits on a new, heavy duty vacuum system that significantly reduces airborne dust. Removable, ¼... -
Page 3: Maintenance Schedule
Maintenance Schedule Daily - Before Use • Tighten knobs holding weights down • Check AC power cord. Do NOT operate equipment if AC power cord is cut, frayed or if ground is missing • Check to see if the quick release cam is still tight, the quick release bolt is housed in a slot on the handle support, locating pins are in place and, locking handle is tight. -
Page 4: General Operating Instructions
Safety Our products are built to strict safety and reliability specifications in accordance with industry standards. Therefore, safety issues pertaining to operation and repair of Integra-D equipment are primarily environmental and human interface. The following basic safety tips are given to ensure safe installation, operation and maintenance of the Integra-D. Transport of Machine To transport this machine, the following procedure is advised: •... - Page 5 • Sanding wood decks is not recommended by the manufacturer due to uneven surfaces which could lead to damage to the machine. Some pressure treated wood found in decking contains arsenic that, when sanded, will create hazardous dust. The manufacturer assumes no liability if the machine is used on decks, and damage caused from sanding pressure treated wood will not be warranted.
- Page 6 PROBLEM: Machine pulls hard to the right CAUSE SOLUTION 1. Worn pad 1. Replace pad 2. Worn isolators 2. Replace isolators PROBLEM: Machine is unusually loud CAUSE SOLUTION 1. Isolators worn 1. Replace isolators 2. Component has come loose 2. Tighten all screws, bolts, knobs 3.
- Page 7 Handle Item N. Part N. Description Quantity IT-04248 Bolt 1/4-20 Nyloc IT-20002 Nut 1/4-20 Nyloc IT-04142 Cam Lever Assembly IT-04158 Bushing IT-22305 Acorn Nut 3/8-16 IT-27412 Handle with Cord Hook Brace Painted IT-01745 Pigtail 42” SJT 105C IT-04148 Extension Rod Welded IT-04151 Tapered Sleeve IT-04152...
-
Page 8: Switch Box
Switch Box Item N. Part N. Description Quantity IT-03789 Foam Handle Grip IT-04909 Trigger IT-04131 Switch Box IT-04910 Safety Switch Lever IT-04199 8-32 X 1/4” Phillips Screw IT-03949 Safety Switch Knob IT-03951 Safety Switch Spring IT-20484 Cord Grip IT-04190 Safety Switch Lever IT-14717 Strain Relief IT-03699... -
Page 9: Base Assembly
Base Assembly Item N. Part N. Description Quantity IT-70302 Motor 1.5 hp 3450 rpm IT-27552 T-Handle Support with Tab Painted IT-27536 Star Grip Knob IT-27541 Fast Pin IT-27523 Cam Lever IT-27551 1/4 Washer for Cam Lever IT-20002 1/4-20 Nyloc Nut IT-27520 Wishbone IT-27522... - Page 10 Base Assembly Item N. Part N. Description Quantity IT-27562 Bearing Kit IT-27545 Screw 1/4-20 X 3/4” Countersunk for Drive Pad IT-27551 1/4 Washer for Cam Lever IT-27559 1/4-20 X 3/4 Cap Screw IT-275IT-27 Base Gasket Small IT-27517 Isolator 4 (20”)/8 (28”) IT-27546 Screw 5/16-18 X 5/8”...
- Page 11 Skirt & Accessories Item N. Part N. Description Quantity IT-27538 Grey Skirt for 20” IT-27539 Grey Skirt for 28” IT-27525 Y Connector IT-27540 Vacuum Hose Assembly...
- Page 12 HEPA Dry Vac Kit Vacuum Schematic Fast Track Vac 18 18 Item N. Part N. Description Page 3 Quantity IT-27112 Vacuum Housing (Body) IT-27108 Vacuum Motor IT-27113 Lid, Vacuum Hose and Hose Cuff Swivel IT-27130 Hose and Hose Cuff Swivel IT-27132 3 Way Power Adapter IT-27103...
- Page 13 Filter Use Disposable filter bag required Please read the important information below regarding the proper use of our filter system. The primary filter (first filter) is the most important filter, as it filters 99.97% of particles. Failure to use this primary filter will cause damage to the secondary filter, vacuum motor and disperse fine particles into the air.
