INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
230911-16
TCWS.54NG04.C2

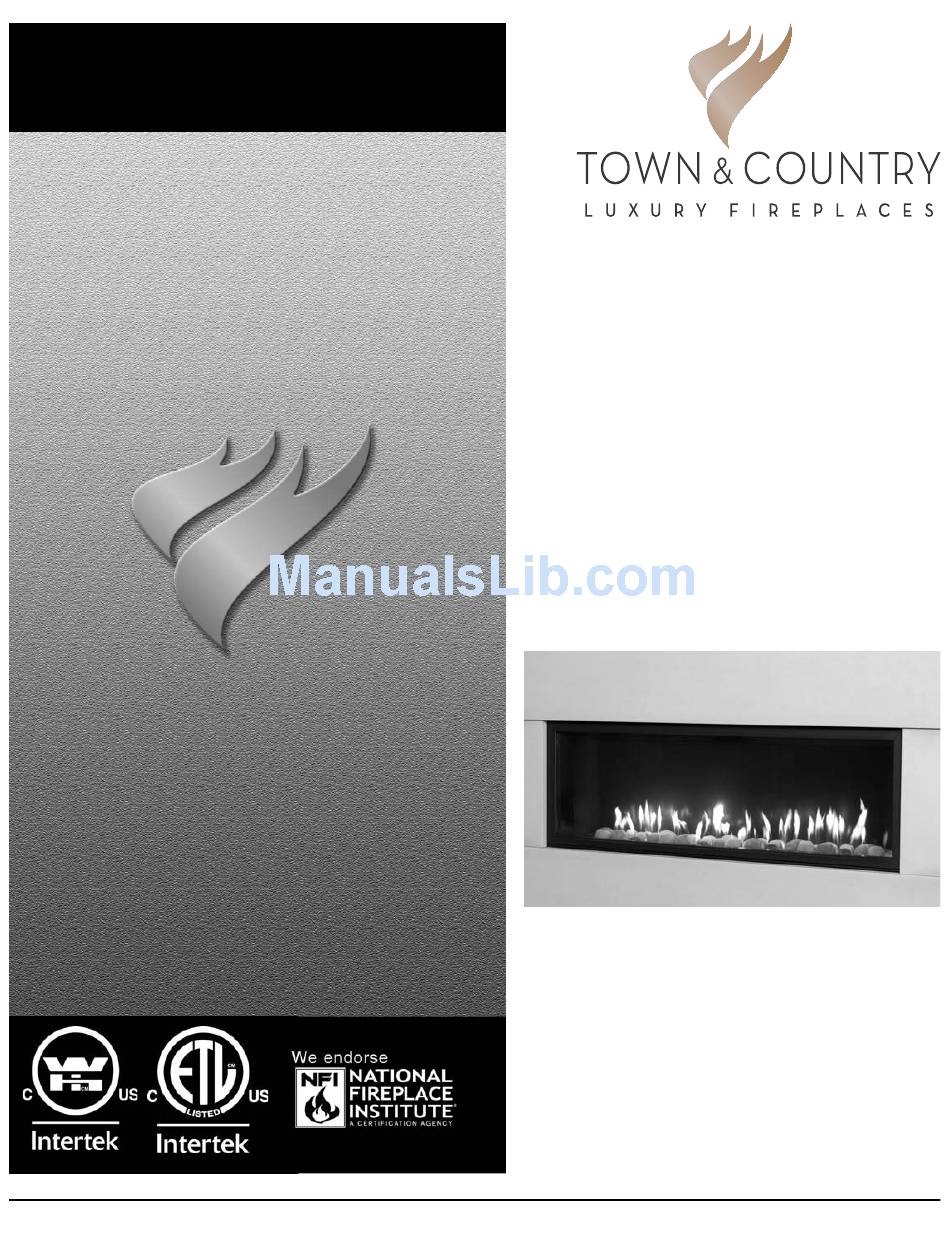

TRANQUILITY
BURNER KIT
INSTRUCTIONS
PART# TCWS.54NG04.C2
For TCWS Series C
5056.42521042
TCWS.54NG04.C2
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.54NG04.C2
Summary of Contents for Town & Country Fireplaces TCWS.54NG04.C2
- Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS.54NG04.C2 TRANQUILITY BURNER KIT INSTRUCTIONS PART# TCWS.54NG04.C2 For TCWS Series C 230911-16 5056.42521042 TCWS.54NG04.C2...
-
Page 2: Contents Of Package
Contents of Package 3.4 LBS SAND HARDWARE PACK EQUALIZER ROCKS BURNER ASSEMBLIES BURNER TRAY ASSEMBLY PEBBLE SETS TCWS.54NG04.C2 230911-16... - Page 3 Fig #2a fi rebox. Be sure pilot is attached to burner support rail with screw in fi rst hole position. (Fig. #2a & 2b) FIRST HOLE POSITION Fig #2b Fig #3 Attach pilot to burner tray. (Fig. #3) TCWS.54NG04.C2 230911-16...
- Page 4 CAUTION: The burners should be tightly butted up against each other at the center to ensure correct operation. Place sand into the burner tray and brush smooth. Use caution not to get sand near the burner ports. (Fig. #5) TCWS.54NG04.C2 230911-16...
- Page 5 (Fig. #7 to 15) Fig #12 Fig #8 Fig #9 Fig #13 TCWS.54NG04.C2 230911-16...
- Page 6 Repeat the sequence of placing the rocks three more times until the burner is covered. Fig #18 10. Install front porcelain cover (wide edge Fig #19 should face the front). (Fig. #19) WIDE EDGE TO FRONT OF FIREPLACE TCWS.54NG04.C2 230911-16...
-
Page 7: Propane Conversion Kit
With a 7/16” wrench loosen the pilot head on the pilot assembly. (Fig. #24) The installation is not proper and complete until the operation of the converted appliance is checked as specifi ed in the manufacturer's instructions supplied with the kit. TCWS.54NG04.C2 230911-16... - Page 8 Fig #29 10. Replace the minimum rate screw with the one provided in the propane con- version kit supplied with this fi replace. Ensure that the screw is fully seated. (Fig. #29) TCWS.54NG04.C2 230911-16...
- Page 9 Fig #34 Fig #33 of the control system. 15. Re locate the control box shield and re-attach the access panel to the side of the fi rebox with the screws previously removed. (Fig. #33 & 34) TCWS.54NG04.C2 230911-16...
-
Page 10: Gas Pressure Check
Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TCWS.54NG04.C2 230911-16... -
Page 11: Burner Flame Adjustment
The shutter may also be opened to lessen the fl ame height. Fig #39 NOTE: Proper air shutter setting is required. The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. TCWS.54NG04.C2 230911-16... -
Page 12: Replacement Parts
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. #1..TRANQUILITY BURNER KIT..TCWS.54NG04.C #2..PEBBLE ASSEMBLY ......5096.921 #3..SAND ..........TC42.SAND34 (Two Bags Per Kit) #4..TRIM ROCK “A” .......... 5096.922 #5..TRIM ROCK “B” ........5096.923 NOT SHOWN KIT CONTENTS: TCWS.54NG04.C2 230911-16... - Page 13 Notes:...
- Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Technical support: 1-877-715-2664 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
