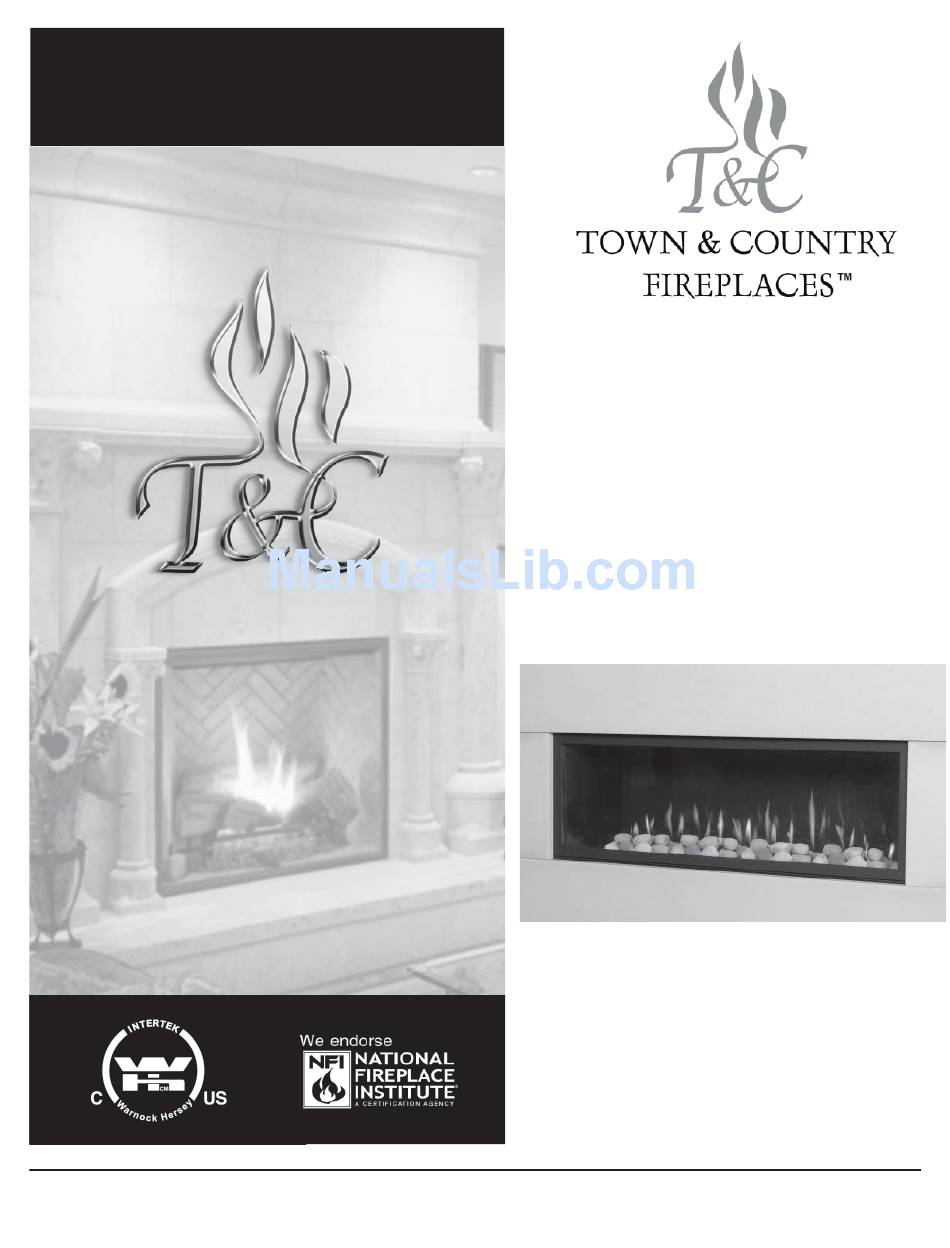

IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
040907-12
TCWS.54NG04.C
TRANQUILITY
BURNER KIT
INSTRUCTIONS
PART# TCWS.54NG04.C
For TCWS Series C
5056.4252104
TCWS.54NG04.C
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.54NG04.C
Summary of Contents for Town & Country Fireplaces TCWS.54NG04.C
- Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS.54NG04.C TRANQUILITY BURNER KIT INSTRUCTIONS PART# TCWS.54NG04.C For TCWS Series C 040907-12 5056.4252104 TCWS.54NG04.C...
-
Page 2: Contents Of Package
Fig #1 conversion instructions on page #6 before proceeding. Install panels according to the TCWS.54CE Installation and Operating manual prior to burner installation. (Page 23) Attach fuel fl ex line and pilot assembly to bulkhead fi ttings. (Fig. #1) TCWS.54NG04.C 040907... - Page 3 While supporting one end of the burner tray, connect gas line to the tee on the underside of the burner tray. (Fig. #4) CAUTION: Ensure that all connections are gas tight. Re-attach pilot to burner tray. (Fig. #5) Fig #5 TCWS.54NG04.C 040907...
- Page 4 Place rear pebble cluster over the Fig #9 burner. Use the pins on the burner and holes in the pebble cluster to locate the pebbles on the burner. (Fig. #9) NOTE: Cluster may require a slight adjustment to align pin holes. TCWS.54NG04.C 040907...
- Page 5 13. Place equalizer rocks at either end of Fig #12 burner as shown. (Fig. #12) 14. Install front porcelain cover Fig #13A Fig #13 (wide edge should face the front). (Fig. #13 & #13A) THIS EDGE TO FRONT OF FIREPLACE TCWS.54NG04.C 040907...
-
Page 6: Propane Conversion
Loosen the primary air shutter screw, open shutter to give a gap of 13/64” and re-tighten. Repeat on other burner. (Fig. #15) Fig #16 With a 7/16” wrench loosen the pilot head on the pilot assembly. (Fig. #16) TCWS.54NG04.C 040907... - Page 7 10. Replace the minimum rate screw with Fig #20 the one provided in the propane con- version kit supplied with this fi replace. Ensure that the screw is fully seated. (Fig. #20) TCWS.54NG04.C 040907...
- Page 8 (Fig. #23 & 24) Note: Both the control box shield and the access panel must be reinstalled after conversion/ installation or servicing has been completed. Failure to do so may cause premature failure of the control system. Fig #24 TCWS.54NG04.C 040907...
-
Page 9: Gas Pressure Check
Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TCWS.54NG04.C 040907... -
Page 10: Burner Flame Adjustment
The shutter may also be opened to lessen the fl ame height. Fig #28 NOTE: Proper air shutter setting is required. The fl ame should be just orange and “lazy”. It should NEVER be set to create sooting on internal parts and window glass. TCWS.54NG04.C 040907... -
Page 11: Replacement Parts
(WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ........... PART NO. ITEM ..DESCRIPTION ........... PART NO. #5..PILOT ASSEMBLY, CONVERTIBLE . 5005.025 #1..TRANQUILITY BURNER KIT..TCWS.54NG04.C #6..ORIFICE, NATURAL GAS (#32) ..5021.332.A #2..PEBBLE ASSEMBLY ......TCWS.9499 #7..PROPANE CONVERSION KIT..TC36.LPCSTE01 #3.. - Page 12 Technical support: 1-877-715-2664 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
