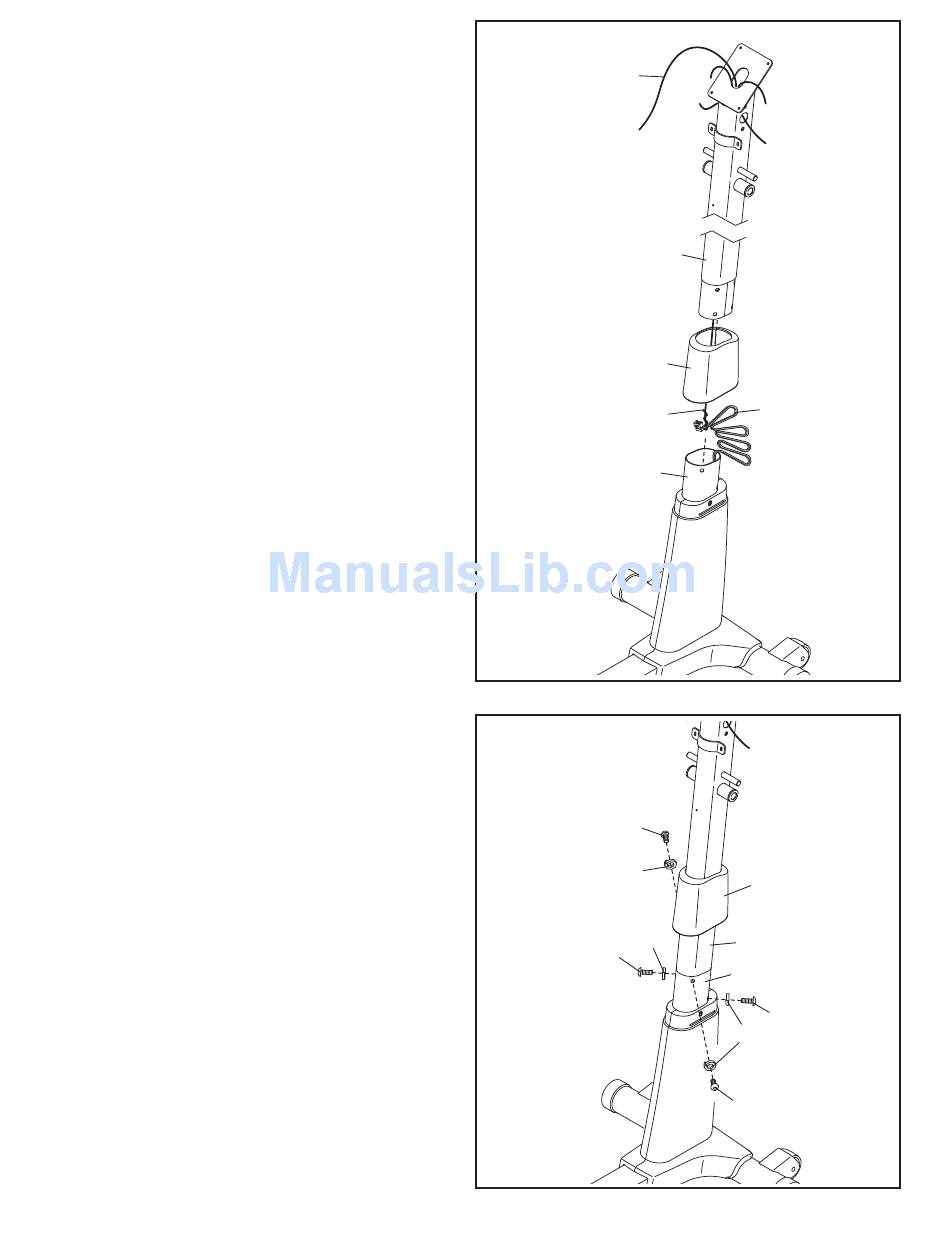

3. Identify and orient the Upright (5) and the Top
Cover (23) as shown. Slide the Top Cover
upward onto the Upright.
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Main Wire (60).
Next, pull the upper end of the wire tie upward
out of the top of the Upright. Then, untie and
discard the wire tie.
Tip: To prevent the Main Wire (60) from
falling into the Upright (5), secure the Main
Wire with the wire tie.
Tip: Avoid pinching the Main Wire (60). Insert
the Upright (5) into the Frame (1).
4. Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103). Do not tighten the Patch Screws yet.
Slide the Top Cover (23) downward. Do not
snap the Top Cover into place yet.
