Pro-Form ZE5 REAR DRIVE User Manual page 10

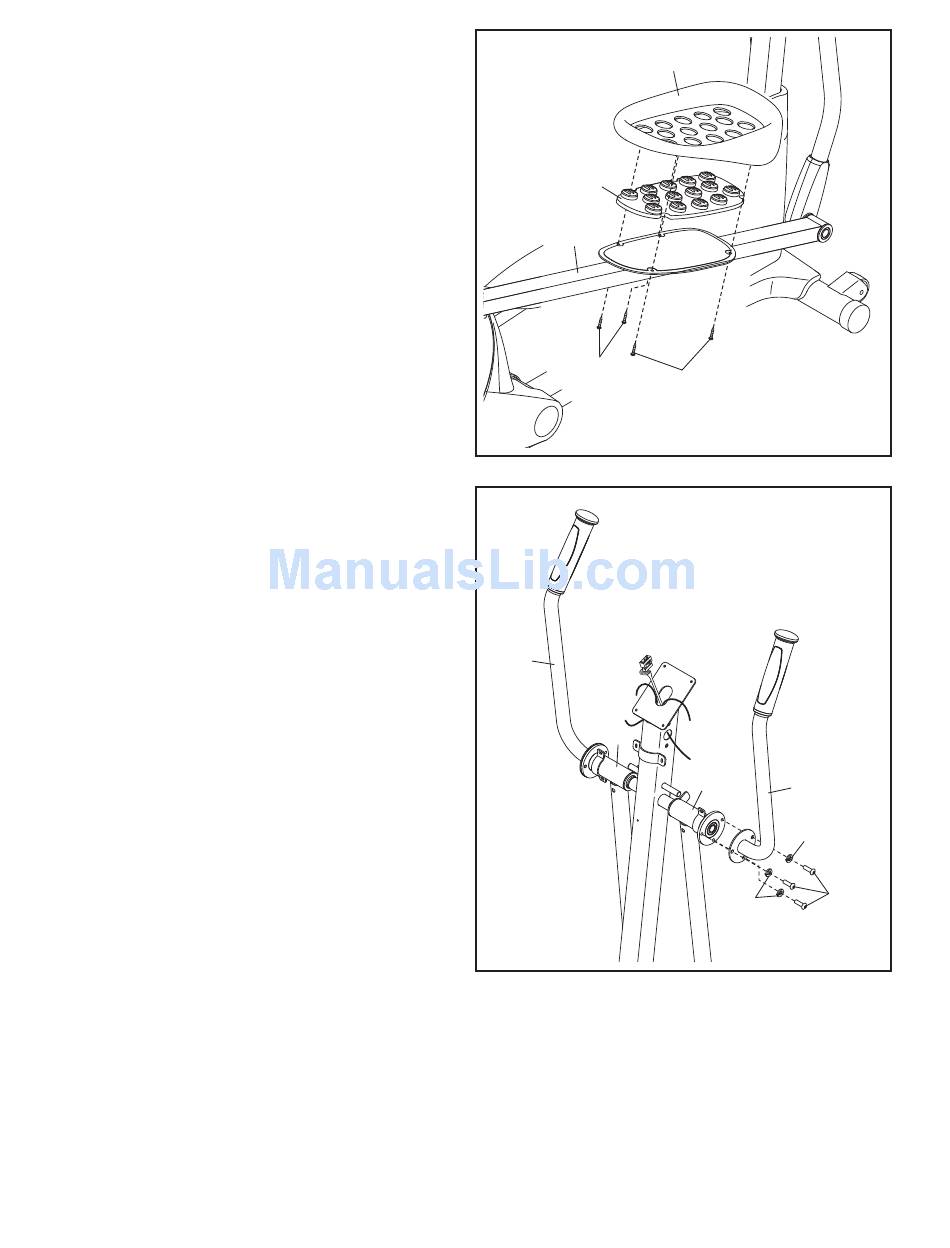

10. Identify the Right Pedal (14) and the Right Gel
Pad (106), which are marked with "Right" stick-
ers, and orient them as shown.
Set the Right Gel Pad (106) on the Right Pedal
Arm (12). Then, set the Right Pedal (14) on the
Right Gel Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Patch Screws
(111).
Repeat this step on the other side of the
elliptical.
11. Identify the Right Upper Body Arm (8), which is
marked with a "Right" sticker, and orient it as
shown.
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the Left
Upper Body Leg (7) in the same way.
10
106
12
111
11
9
7
10
14
111
6
8
103
102
103
