Pro-Form ZE5 REAR DRIVE User Manual page 8

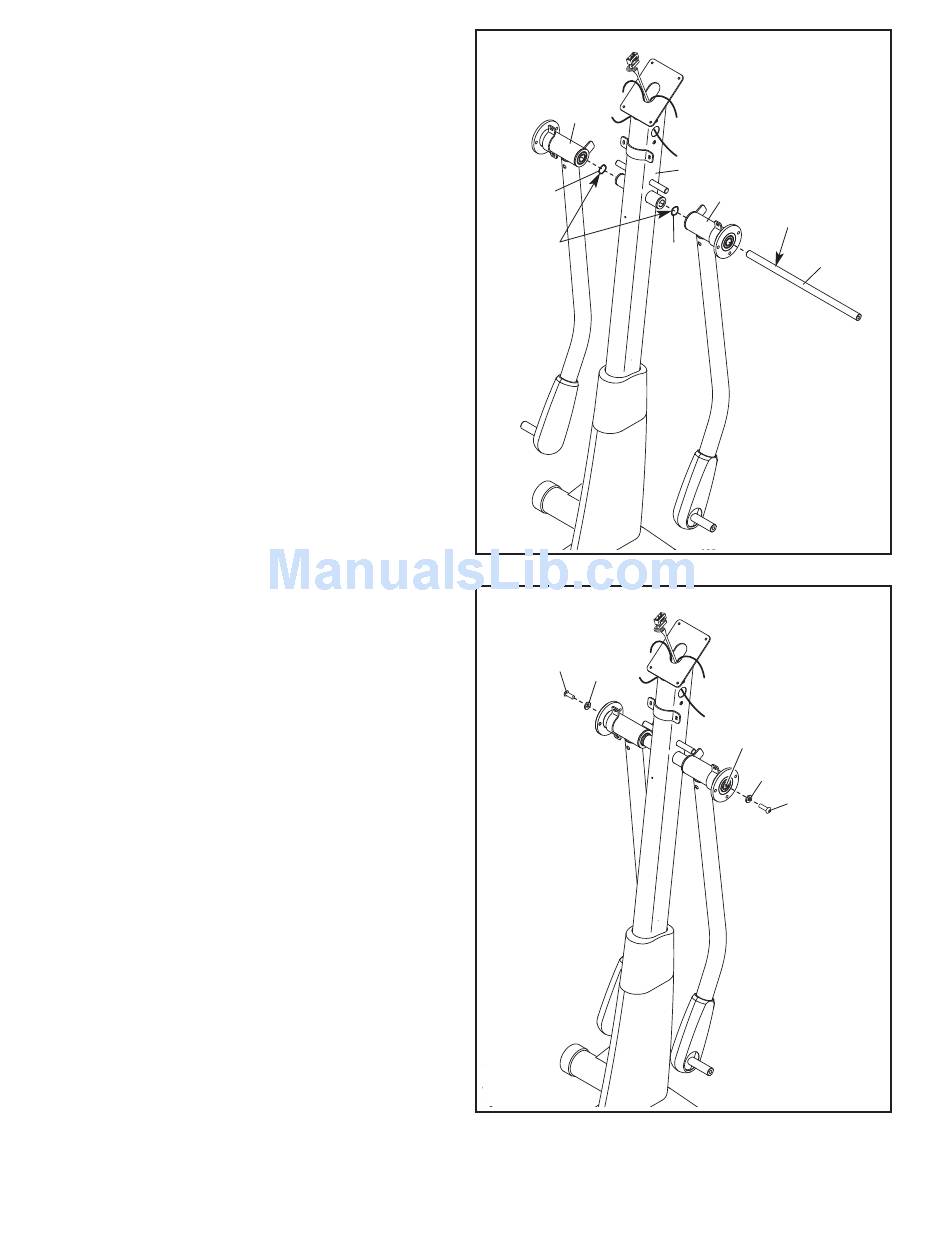

5. Apply some of the included grease to the Upright
Axle (48) and to two Small Wave Washers (118).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Small Wave Washer
(118) onto each side of the Upright Axle.
Identify the Right and Left Upper Body Legs (6,
7), which are marked with "Right" and "Left" stick-
ers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto each side of the Upright Axle (48).
6. Tighten an M8 x 16mm Patch Screw (102) and
an M8 x 23mm x 1.5mm Washer (126) into each
end of the Upright Axle (48) at the same time.
5
7
118
Grease
6
102
126
8
5
6
Grease
118
48
48
126
102
