ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber
mallet .

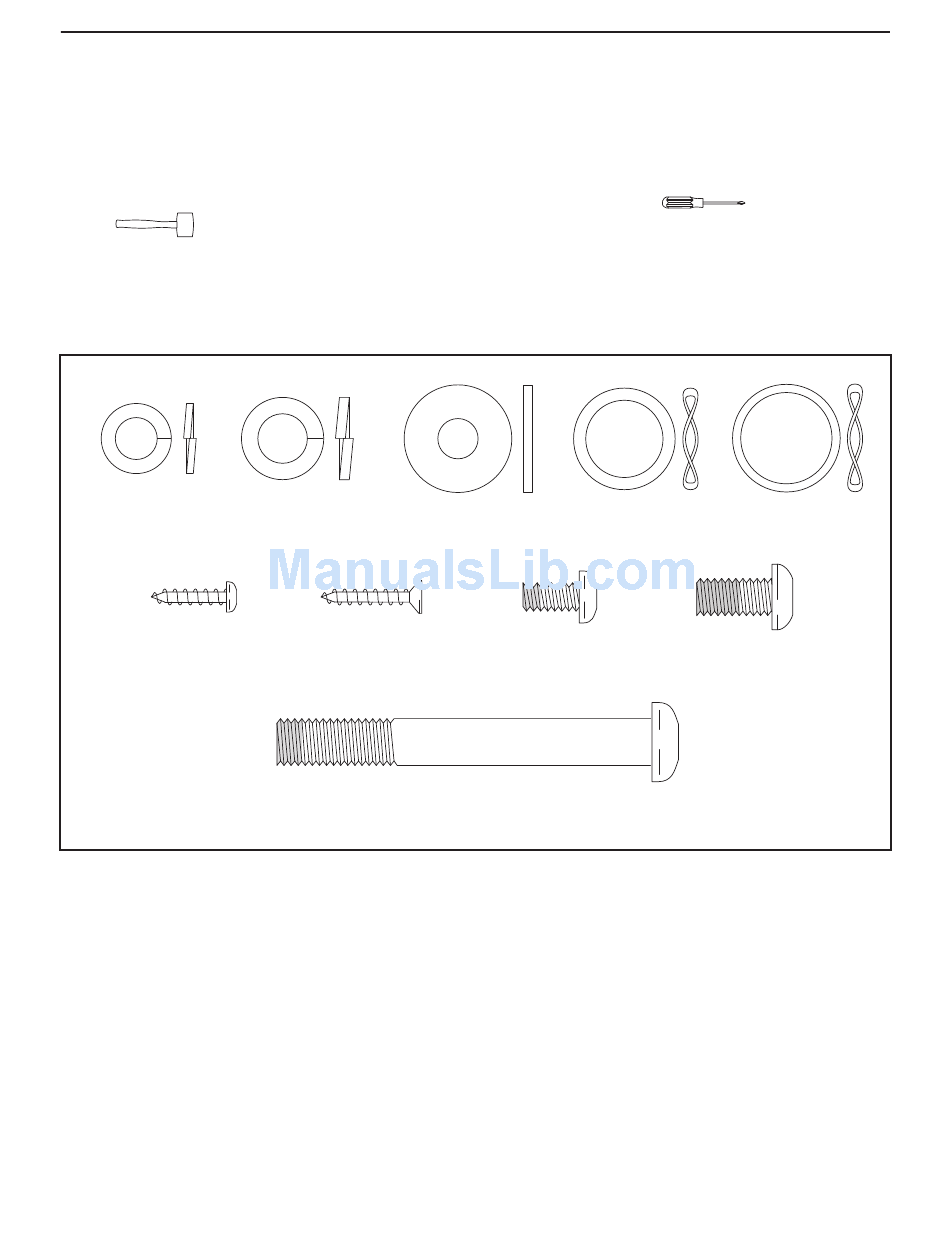

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 Split Washer M10 Split
M8 x 23mm x 1.5mm Small Wave Medium Wave
(103)–10 Washer (123)–4
Washer (118)–2 Washer (119)–2
Washer (126)–4
M4 x 16mm M4 x 19mm M6 x 12mm Patch M8 x 16mm Patch
Screw (93)–16 Flat Head Screw (111)–10 Screw (102)–18
Screw (117)–1
M10 x 80mm Patch
Screw (100)–4
5
