SiBE07-618_C
1.4

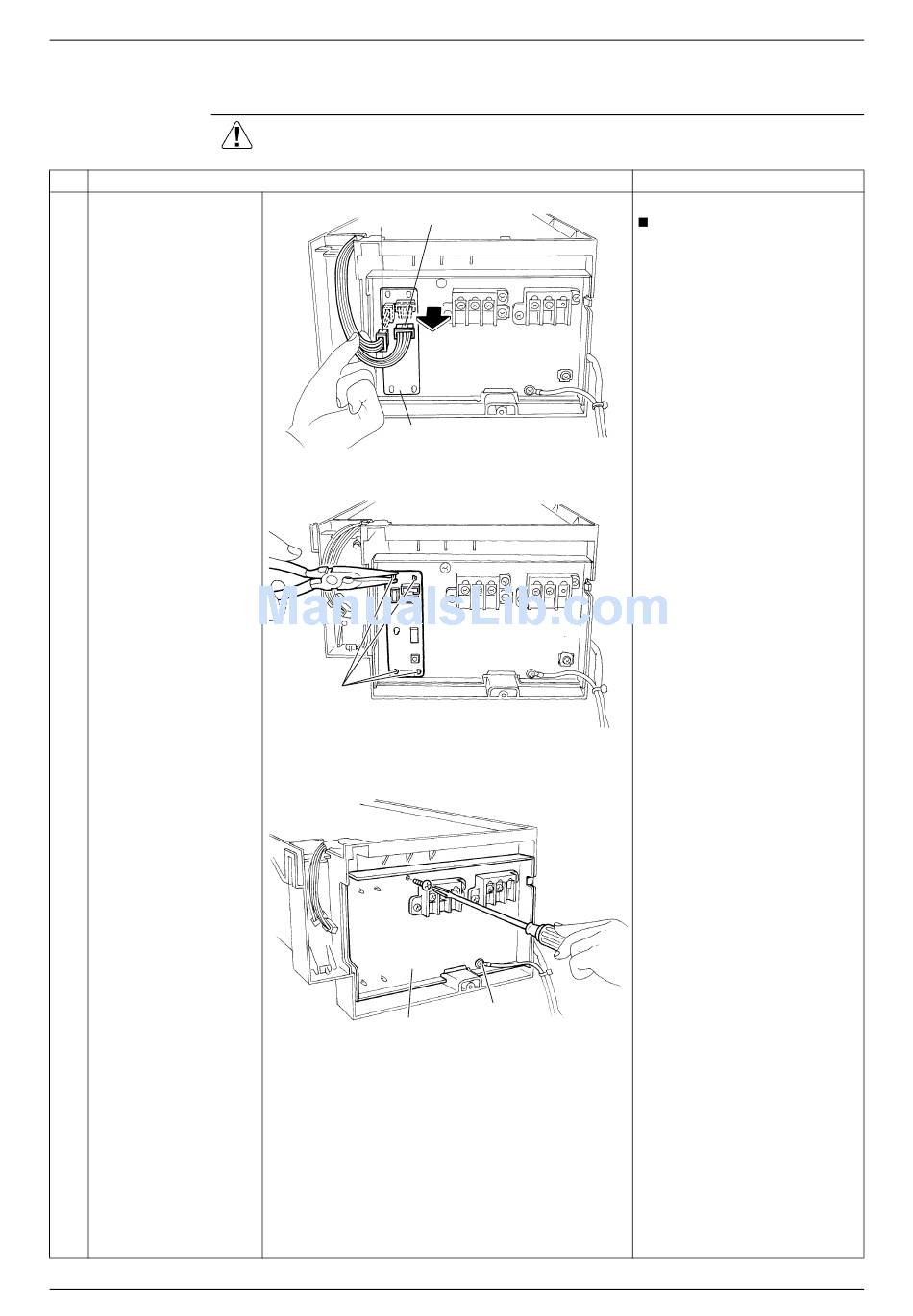

Removal of PCB

Procedure
Step
Disconnect the
1
connectors from the
service monitor PCB
[S52] [S102].
2 Detach the 4 clamps
with pliers.
Remove the screws of
3
the terminal board and
the earth wire.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
[S102]
[S52]
Service monitor PCB
Clamps
Terminal board
(R5280)
(R5281)
Earth wire
(R12285)
Outdoor Unit
Points
Preparation
Remove the electrical box
according to the "Removal of
Electrical Box".
115
