Removal Of The Pcb - Daikin Altherma EKHBH Series Service Manual

Removal procedure: outdoor unit ERYQ005~007AAV3
2.5

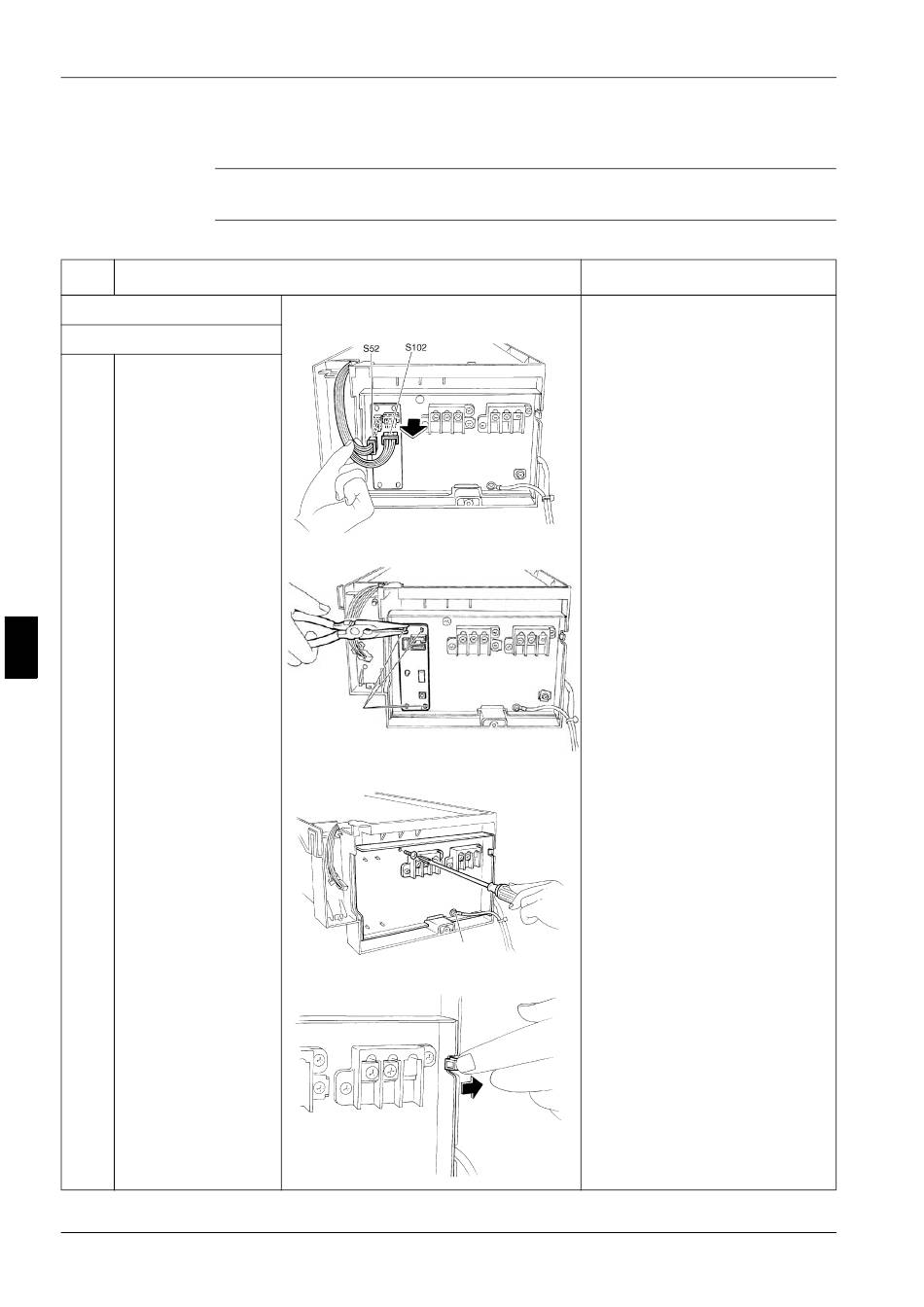

Removal of the PCB

1
Warning
Procedure
Step Procedure
Remove the electrical box.
1 Remove the PCB.
1 Disconnect the
3
connectors for the
control PCB (S52,
S102).
2 Undo the 4 clamps by
pliers.
5 5
3 Loosen the fixing screw
of the cable way board
and disconnect the
earth wire.
4 Undo the hook on the
right.
5–18
Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Clamps
Points
Earth wire
