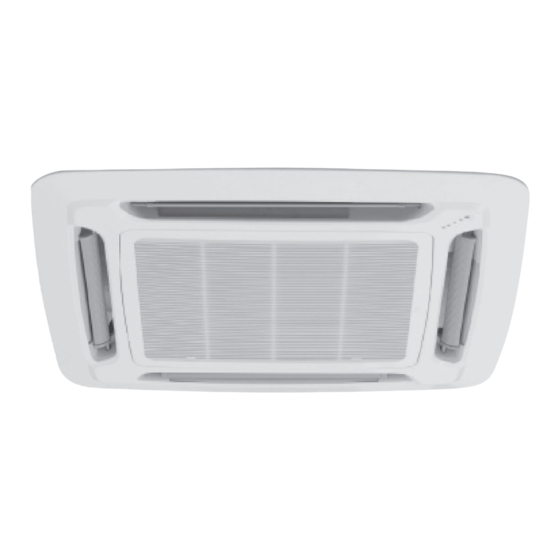

R410A TECHNICAL MANUAL Split Unit Air Conditioner Ceiling Cassette C & E Series FCQN-E, FFQN-C, FCRN-E, FFRN-C — Cooling only & Heatpump [50Hz] — DAIKIN_FFRN.indb i DAIKIN_FFRN.indb i 12/27/2012 9:28:06 AM 12/27/2012 9:28:06 AM...
Page 2
DAIKIN_FFRN.indb ii DAIKIN_FFRN.indb ii 12/27/2012 9:28:07 AM 12/27/2012 9:28:07 AM...
Nomenclature Nomenclature Indoor FFRN 25 C X V1 Power Supply V1: 1 phase 50 Hz 220-240V Production X: OYLM Product Series C: C Series E: E Series Capacity 25: 2.5 kW Model FFRN: Ceiling Cassette 2”x2” (Cooling Only) FCRN: Ceiling Cassette 3”x3” (Cooling Only) FFQN: Ceiling Cassette 2”x2”...
Application Information Application Information Operating Range Ensure the operating temperature is in allowance range. Cooling Outdoor DB (°C) The use of your air conditioner outside the range of working temperature and humidity can result in serious failure. Indoor WB (°C) Heating Outdoor WB (°C)
Application Information Installation Guideline Safety Precautions • Installation and maintenance should be performed Please take note of the following important points by qualifi ed persons who are familiar with local code when installing. and regulation, and experienced with this type of •...
Page 15
Application Information 1) Indoor Installation Clearance Clearance must be provided for the indoor unit from wall and obstacles as shown in fi gure below. Min 0.5 m Min 0.5 m Min 0.5 m Obstacles Floor The installation place (handling ceiling surface) must be level and the height in the ceiling is 350mm or more. 2) Outdoor Installation Clearance Outdoor unit must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth air fl...
Page 16
Application Information 3) Cable Size Cooling only FFRN25/35CXV1 FFRN50CXV1 FCRN50EXV1 Model Unit RN25/35CXV1 RN50CXV1 RN50CXV1 Power supply cable size mm² Number of wire Interconnection cable size mm² Number of wire Recommended fuse FCRN60EXV1 FCRN71EXV1 FCRN100EXV1 Model Unit RN60CXV1 RR71CXV1 RR90DXV1 Power supply cable size Number of wire Interconnection cable size...
Page 17
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant fl ow increases, thus lowering the cooling capacity, and as the result the compressor may become defective. Always choose the shortest path and follow the recommendation as tabulated below: FFRN25CXV1 FFRN35CXV1 FFRN50CXV1 Indoor...
Page 18
The refrigerant charge has already charged into the outdoor unit. For the piping length of 7.6m, additional refrigerant charge after vacuuming is not necessary. • When the piping length is more than 7.6m, please use the table below (unit in gram). Cooling Only Indoor FFRN25CXV1 FFRN35CXV1 FFRN50CXV1 Outdoor RN25CXV1 RN35CXV1 RN50CXV1 Add.
Sound Data Sound Data Sound Pressure Level 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall Noise Model Speed (dBA) Criteria 125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz High FF(R)(Q)N25CXV1 High FF(R)(Q)N35CXV1 High FF(R)(Q)N50CXV1 High FC(R)(Q)N50EXV1 Quiet High FC(R)(Q)N60EXV1 Quiet High FC(R)(Q)N71EXV1 Quiet High...
Engineering & Physical Data Engineering & Physical Data Engineering Data - R410A model INDOOR UNIT FFRN25CXV1 FFRN35CXV1 FFRN50CXV1 MODEL OUTDOOR UNIT RN25CXV1 RN35CXV1 RN50CXV1 Btu/h 9500 12500 17500 NOMINAL COOLING CAPACITY 2780 3660 5129 NOMINAL TOTAL INPUT POWER (COOLING) 1300...
Page 25
Engineering & Physical Data Engineering Data - R410A MODEL INDOOR UNIT FCRN50EXV1 FCRN60EXV1 FCRN71EXV1 FCRN100EXV1 MODEL OUTDOOR UNIT RN50CXV1 RN60CXV1 RR71CXV1 RR90DXV1 Btu/h 18300 22200 27000 29200 NOMINAL COOLING CAPACITY 5363 6506 7913 8558 NOMINAL TOTAL INPUT POWER (COOLING) 1740 1940 2790 2820...
Page 26
Engineering & Physical Data Engineering Data - R410A MODEL INDOOR UNIT FCRN100EXV1 FCRN125EXV1 MODEL OUTDOOR UNIT RR90DXY1 RR100DXV1 RR125DXY1 Btu/h 31000 39000 45000 NOMINAL COOLING CAPACITY 9086 11430 13190 NOMINAL TOTAL INPUT POWER (COOLING) 2770 3920 4390 NOMINAL RUNNING CURRENT (COOLING) 5.20 17.90 7.80...
Engineering & Physical Data Safety Device FFRN25/35CXV1 FFRN50CXV1 INDOOR FFQN25/35CXV1 FFQN50CXV1 MODEL OUTDOOR R(Y)N25CXV1 R(Y)N50CXV1 TYPE HIGH PRESSURE OPEN kPa / psi SWITCH CLOSE kPa / psi TYPE SAFETY LOW PRESSURE DEVICE OPEN kPa / psi SWITCH CLOSE kPa / psi PHASE SEQUENCER DISC.
Page 28
Engineering & Physical Data INDOOR FCQN100EXV1 MODEL OUTDOOR RQ90DXV1 RQ100DXV1 RQ100DXY1 TYPE HIGH PRESSURE OPEN kPa / psi 4140 / 600.46 SWITCH CLOSE kPa / psi 3310 / 480.07 TYPE SAFETY LOW PRESSURE DEVICE OPEN kPa / psi 48 / 6.96 SWITCH CLOSE kPa / psi...
16°C WB. 25°C is located between 24°C & 27°C Example: for 19°C WB. Model: FFRN25CXV1 - RN25CXV1 Thus, Interpolation needs to be applied. Indoor Condition: 25°C DB, 17°C WB 2. Refer to the Indoor WB column, Outdoor Condition: 37°C DB 17°C is located between 16°C &...
Page 30
Performance Data (b) Indoor Condition: 25°C DB, 16°C WB By Interpolation Method Outdoor Condition: 35°C DB 25°C – 24°C – 3.51kW ⇒ Outdoor temperature 27°C – 24°C 3.52kW – 3.51kW 35°C ⇒ x = 3.51kW Similarly, = 2.71kW 3.51 2.57 1.29 = 1.29kW 3.52...
Outline & Dimension Outline & Dimension Indoor Unit Model: FF(R)(Q)N25/35/50CXV1 Note: Dimension in mm Model: FC(R)(Q)N50/60/71/100/125EXV1 Dimension Model FC(R)(Q)N50/60/71EXV1 FC(R)(Q)N100/125EXV1 Note: Dimension in mm DAIKIN_FFRN.indb 50 DAIKIN_FFRN.indb 50 12/27/2012 9:28:15 AM 12/27/2012 9:28:15 AM...
Wiring Diagram Wiring Diagram Cooling Only Indoor Unit Outdoor Unit Model: FFRN25/35CXV1 Model: RN25/35CXV1 DAIKIN_FFRN.indb 53 DAIKIN_FFRN.indb 53 12/27/2012 9:28:15 AM 12/27/2012 9:28:15 AM...
Page 57
Wiring Diagram Indoor Unit Outdoor Unit Model: FFRN50CXV1 Model: RN50CXV1 DAIKIN_FFRN.indb 54 DAIKIN_FFRN.indb 54 12/27/2012 9:28:16 AM 12/27/2012 9:28:16 AM...
Page 58
Wiring Diagram Indoor Unit Outdoor Unit Model: FCRN50/60/71EXV1 Model: RN50/60CXV1 / RR71CXV1 FLOAT SWITCH INDOOR COIL SENSOR WIRED ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING. PINK PINK AS - AIR SWING MOTOR. BROWN BROWN DP - DRAIN PUMP.
Wiring Diagram Indoor Unit Outdoor Unit Model: FCRN100EXV1 Model: RR90/100DXV1 FLOAT SWITCH INDOOR COIL SENSOR WIRED ID ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING AS - AIR SWING MOTOR PINK PINK DP - DRAIN PUMP BROWN...
Wiring Diagram Indoor Unit Outdoor Unit Model: FCRN100/125EXV1 Model: RR100/125DXY1 FLOAT SWITCH INDOOR COIL SENSOR WIRED ID ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING AS - AIR SWING MOTOR PINK PINK DP - DRAIN PUMP BROWN...
Wiring Diagram Heatpump Indoor Unit Outdoor Unit Model: FFQN25/35CXV1 Model: RYN25/35CXV1 WIRED OR WIRELESS RETURN AIR SENSOR REMOTE CONTROLLER ROOM INDOOR COIL SENSOR TRANSFORMER OUTDOOR COIL SENSOR TWIN T-FULL FLOAT SWITCH HIGH MED PURPLE PURPLE ORANGE ORANGE BROWN BROWN BLUE BLUE BLUE BLUE...
Wiring Diagram Indoor Unit Outdoor Unit Model: FFQN50CXV1 Model: RYN50CXV1 WIRED OR WIRELESS RETURN AIR SENSOR REMOTE CONTROLLER ROOM INDOOR COIL SENSOR TRANSFORMER OUTDOOR COIL SENSOR TWIN T-FULL FLOAT SWITCH HIGH MED PURPLE PURPLE ORANGE ORANGE BROWN BROWN BLUE BLUE BLUE BLUE BLUE...
Page 63
Wiring Diagram Indoor Unit Outdoor Unit Model: FCQN50/60/71EXV1 Model: RYN50/60CXV1 / RQ71CXV1 FLOAT SWITCH WIRED INDOOR COIL SENSOR ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR TO OUTDOOR DEFROST SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING PINK PINK AS - AIR SWING MOTOR BROWN...
Page 64
Wiring Diagram Indoor Unit Outdoor Unit Model: FCQN100EXV1 Model: RQ90/100DXV1 FLOAT SWITCH WIRED INDOOR COIL SENSOR ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR TO OUTDOOR DEFROST SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING AS - AIR SWING MOTOR DP - DRAIN PUMP PINK PINK...
Page 65
Wiring Diagram Indoor Unit Outdoor Unit Model: FCQN100EXV1 Model: RQ100DXY1 FLOAT SWITCH INDOOR COIL SENSOR WIRED ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR TO OUTDOOR DEFROST SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING AS - AIR SWING MOTOR DP - DRAIN PUMP PINK PINK...
Page 66
Wiring Diagram Indoor Unit Outdoor Unit Model: FCQN125EXV1 Model: RQ125DXY1 FLOAT SWITCH INDOOR COIL SENSOR WIRED ROOM DISPLAY BOARD CONTROLLER T FULL CN_WIR INDOOR AIR SENSOR TO OUTDOOR DEFROST SENSOR CN STP COMP. KEY: FIELD SUPPLY WIRING AS - AIR SWING MOTOR DP - DRAIN PUMP PINK PINK...
Service & Maintenance Service & Maintenance • Disconnect from main supply before servicing the air conditioner. • The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention. Components Maintenance Procedures Period...
Page 68
Service & Maintenance Pre Start Up Maintenance (After Extended Shutdown) Inspect thoroughly and clean indoor and outdoor units. Clean or replace air fi lters. Clean condensates drain line. Clean clogged indoor and outdoor coils. Check fan imbalance before operation. Tighten all wiring connections and panels. Check for refrigerant leakage.
Troubleshooting Troubleshooting Indicator Lights LED Indicator Light Display - Cooling Only LED Indicator Light Display - Heatpump POWER TIMER SLEEP POWER TIMER HEAT / SLEEP LED Light Diagnostic Table Error Operation / Action Code Faulty Indication GREEN ORANGE Cooling mode Timer On Sleep mode On Heating mode...
Page 70
Troubleshooting Phase Sequencer The unit with Scroll Compressor only can rotate in one direction. For this reason, a protective device (phase sequencer) is fi tted to prevent incorrect wiring of the electrical phases. When the three phases are not connected correctly, the phase sequencer operates, and the unit will not start. This device is located in the control box of the outdoor unit.
Page 71
Troubleshooting Error Code / Fault Condition When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures. The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer.
Page 72
Troubleshooting Diagnostic Guidelines By means of pressure readings: Data Pressure Probable cause Circuit • High side 1. Overcharged with refrigerant. Low side • 2. Non-condensable gases in refrigerant circuit (e.g. air). 3. Obstructed air-intake / discharge. 4. Hot air short circuiting in outdoor unit. •...
