SiBE07-618_C

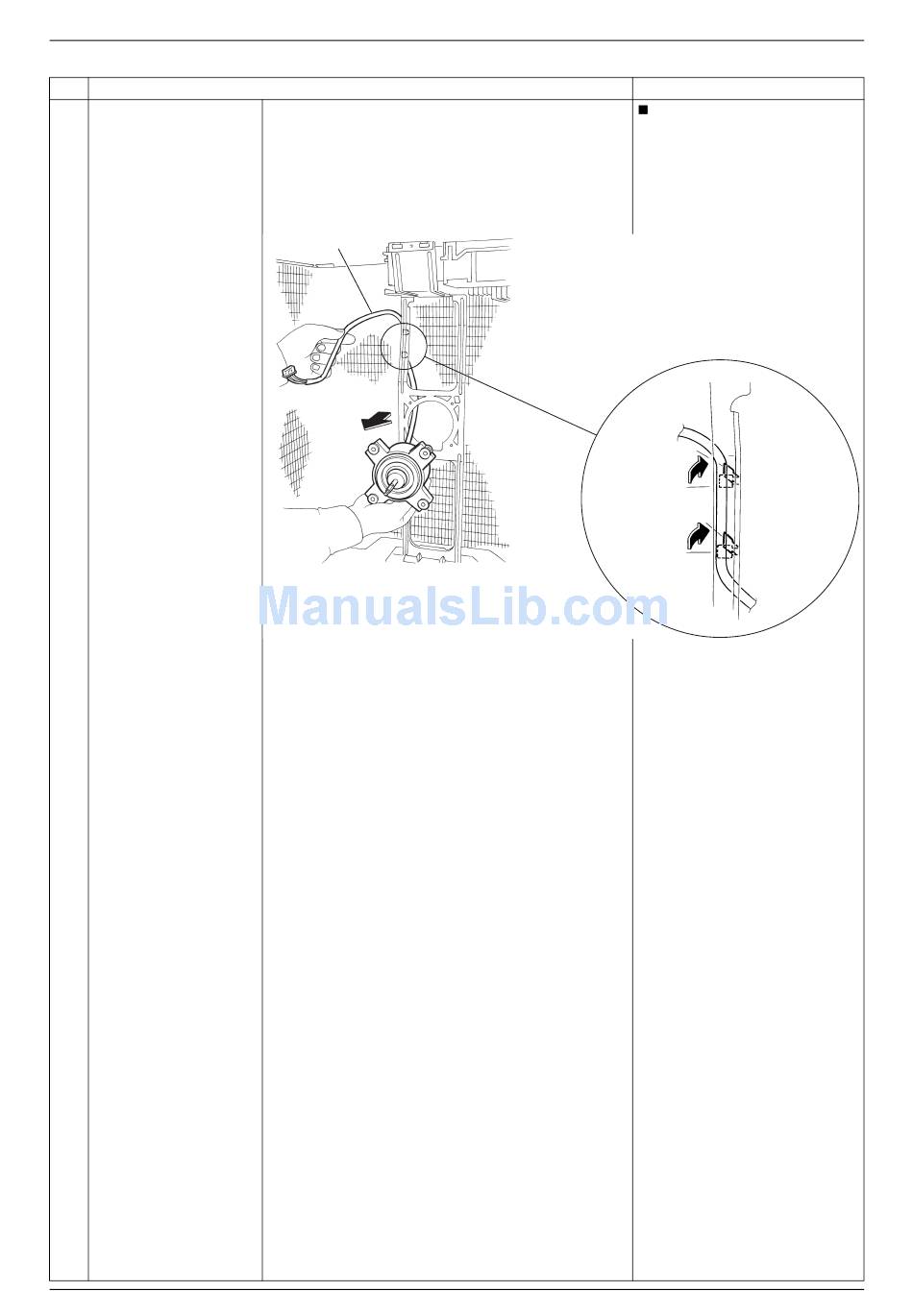

Step
6
Release the fan motor
lead wire from the 2
hooks and pull the fan
motor out.
Removal Procedure
Procedure
Fan motor lead wire
Outdoor Unit
Points
When reassembling, put the
fan motor lead wire through
the back of the fan motor (so
as not to be entangled with
the outdoor fan).
(R5265)
109
