▼ Install the Server Module Into the Chassis

The server module is hot-pluggable in the chassis. The instructions in this guide assume that the Sun Blade
6000 modular system is installed, and is up and running.

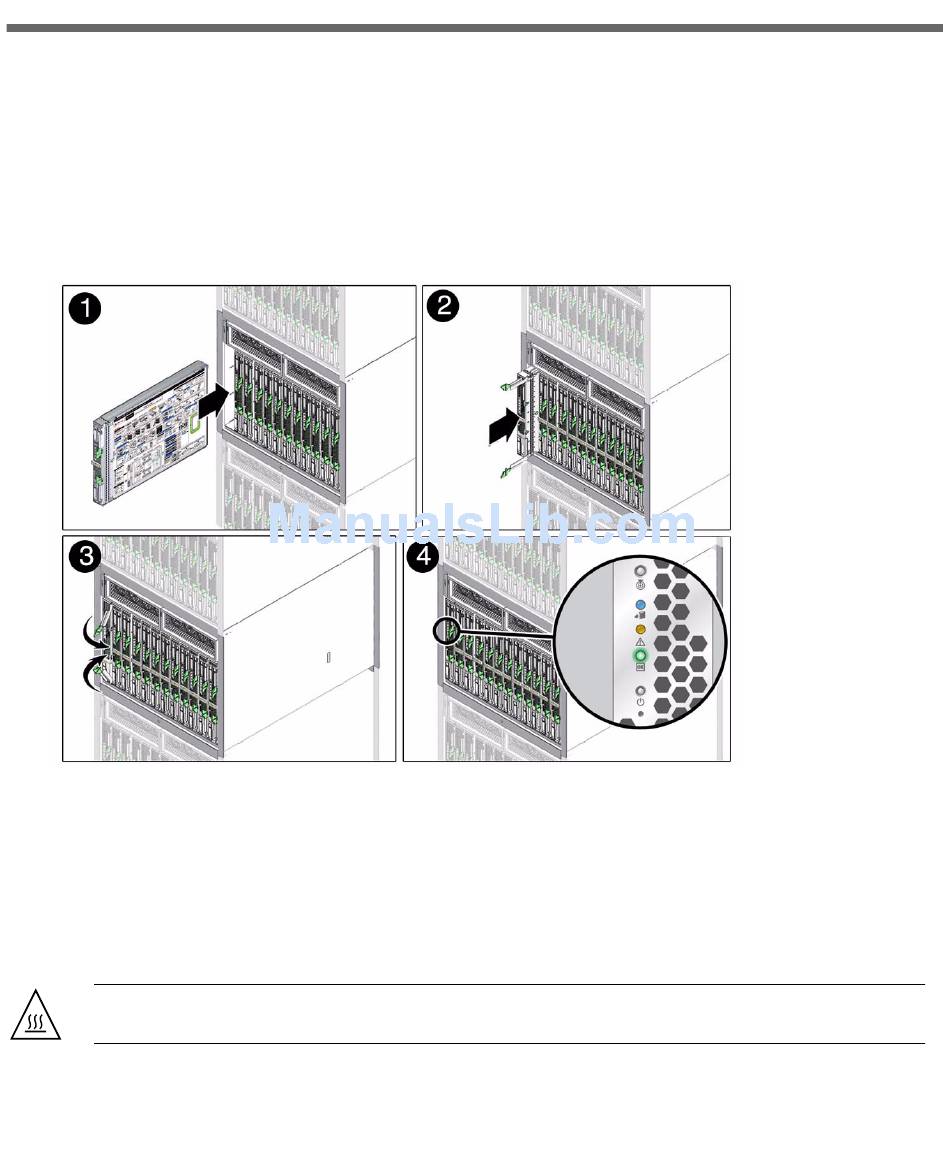

1. Remove the filler panel from the desired server module slot in the chassis.
Be ready to insert the server module or a filler panel in the empty slot within 60 seconds.
2. Insert the server module in the chassis (panel 1) until it is about 1.5 cm (.5 in.) from the front of the
chassis.
The side of the server module with the service label faces to your right.
3. Extend the ejector levers (panel 2), then push the ejector levers in simultaneously until they lock in place
(panel 3).
4. Verify the server module insertion by checking the green OK LED on the server module (panel 4).
When the server module is plugged in, standby power is supplied to the service processor (SP). The front
panel LEDs blink three times, then the green OK LED on the front panel blinks for a few minutes. The server
module SP generates diagnostic messages as soon as the server module is connected to a powered modular
system.
Caution –
For proper cooling, ensure that all slots are filled with a server module or a filler panel. Fill
all slots within 60 seconds after the modular system is connected to power.
