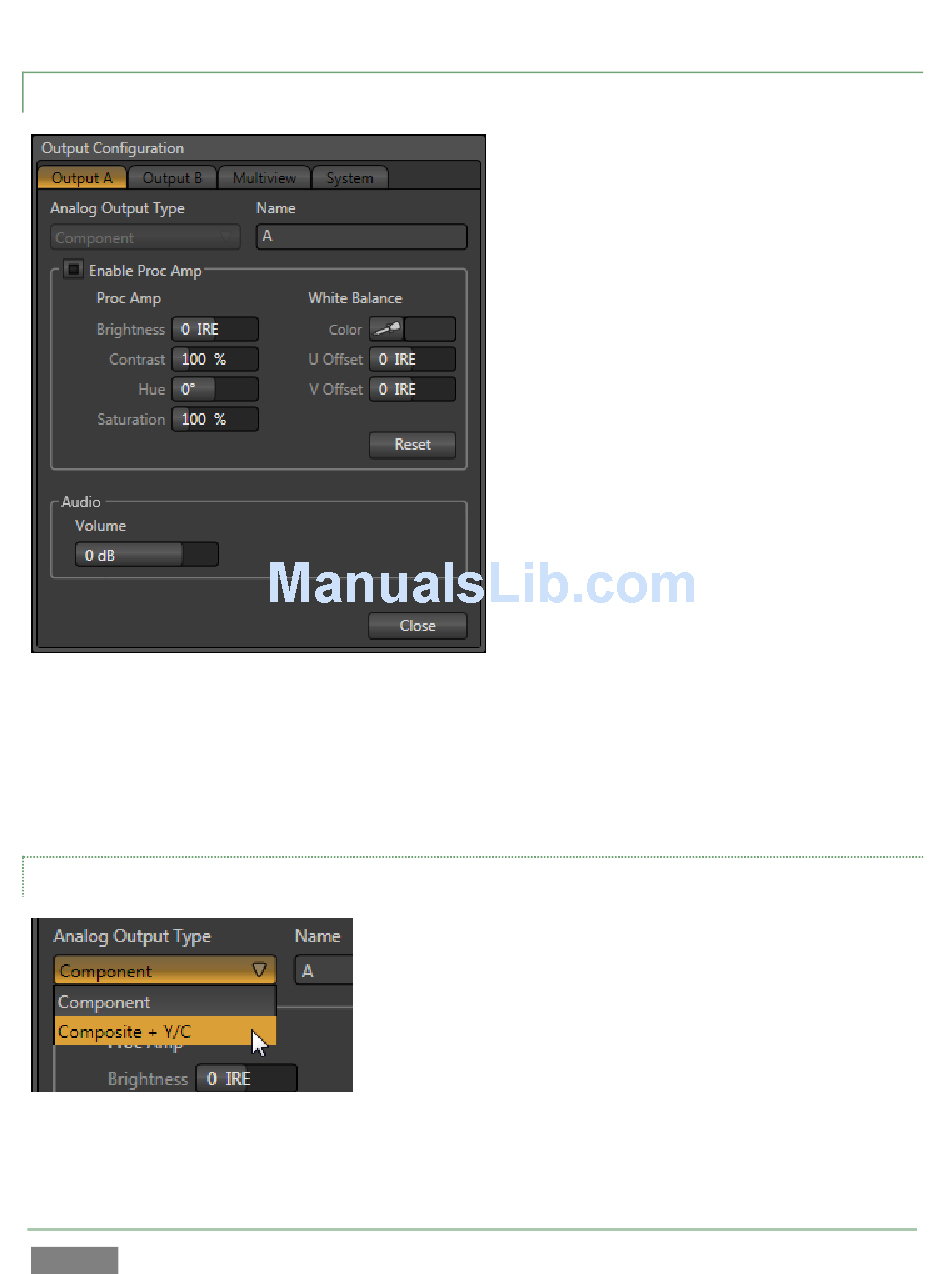

7.1.1 OUTPUT A AND B
Figure 66
The video format for NewTek 3Play™ video Outputs A, B (and Aux on 3Play™ 820) is identical to
the session format. Digital video output is supplied to the SDI output connectors in the
corresponding format – HD for HD sessions, and SD for SD sessions.
ANALOG OUTPUT TYPE
Figure 67
Page | 76
